Removal and Installation of Front Wiper Drive Assembly: Notes

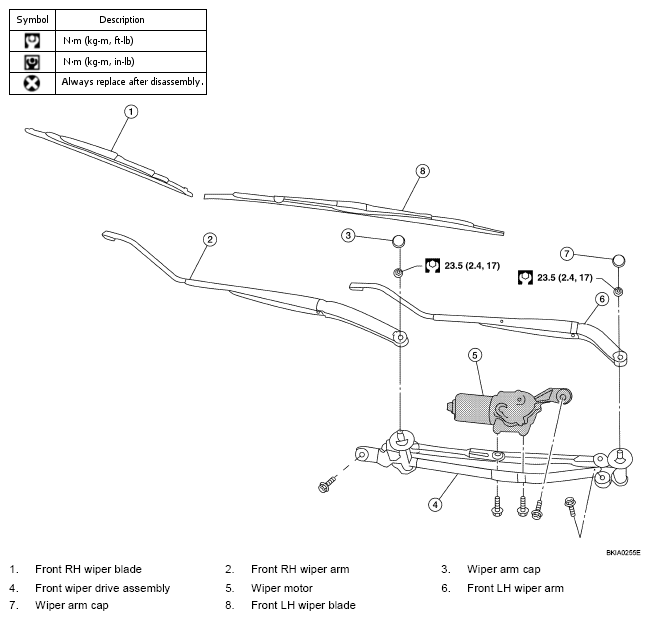

Fig 1: Exploded View Of Front Wiper Drive Assembly Components With Torque Specifications

G04928491

Courtesy of NISSAN MOTOR CO., U.S.A.
