Rear Drum Brake: Components

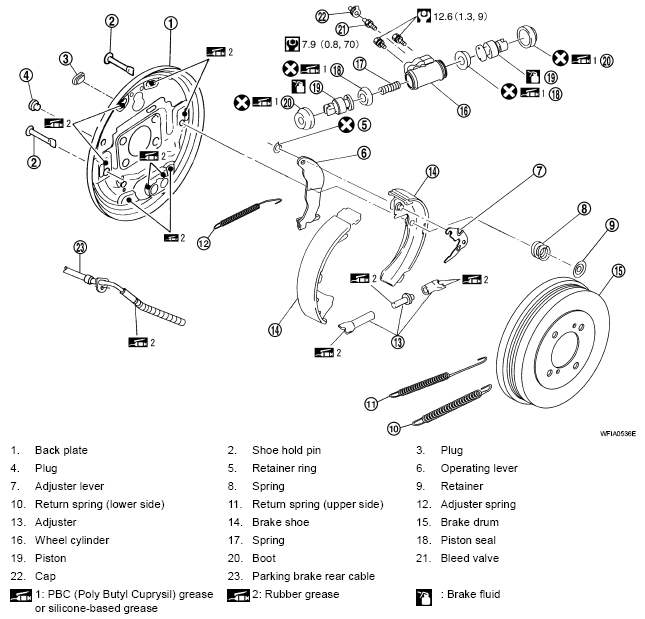

Fig 1: Rear Drum Brake Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbol marks except as shown.

CAUTION:

Clean dust on drum and back plate with a vacuum dust collector. Do not blow with compressed air.
Make sure parking brake lever is released completely.
