Hydraulic Circuit

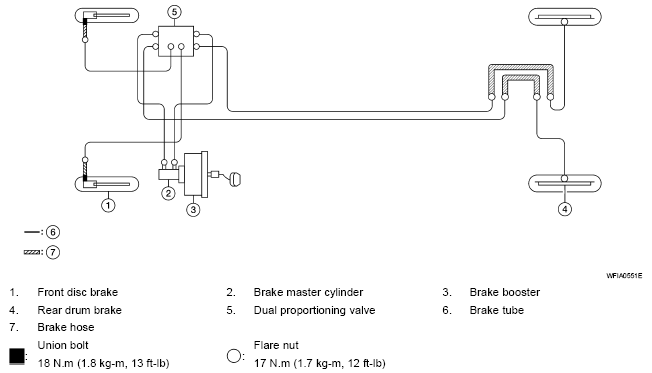

Fig 1: Brake Tube And Hose (Without ABC) - Hydraulic Circuit With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

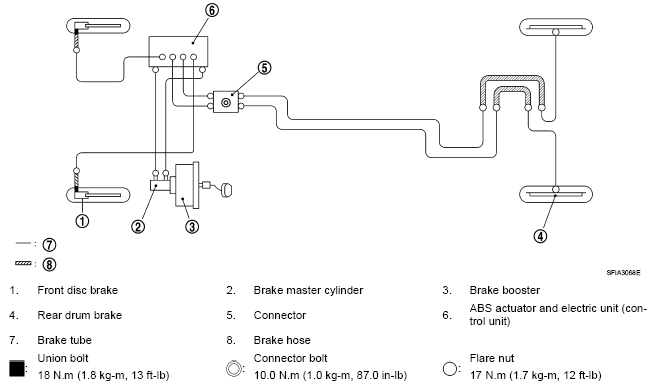

Fig 2: Brake Tube And Hose (With ABC) - Hydraulic Circuit With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

All tubes and hoses must be free from excessive bending, twisting and pulling.
Make sure there is no interference with other parts when turning steering both clockwise and counterclockwise.
Brake tubes and hoses are an important safety part. Always disassemble the parts and retighten their fittings, if a brake fluid leak is detected. Replace applicable part with a new one, if damaged part is detected.
Be careful not to splash brake fluid on painted areas; it way cause paint damage. If brake fluid is splashed on painted surfaces of body, immediately wipe them with cloth and then wash it away with water.
Do not bend or twist brake hose sharply, or strongly pull it.
When removing components, cover brake line connections so that dirt, dust, or other foreign matters do not get in.
Refill using recommended brake fluid. Refer to "RECOMMENDED FLUIDS AND LUBRICANTS ".
Never reuse drained brake fluid.
