Body Harness

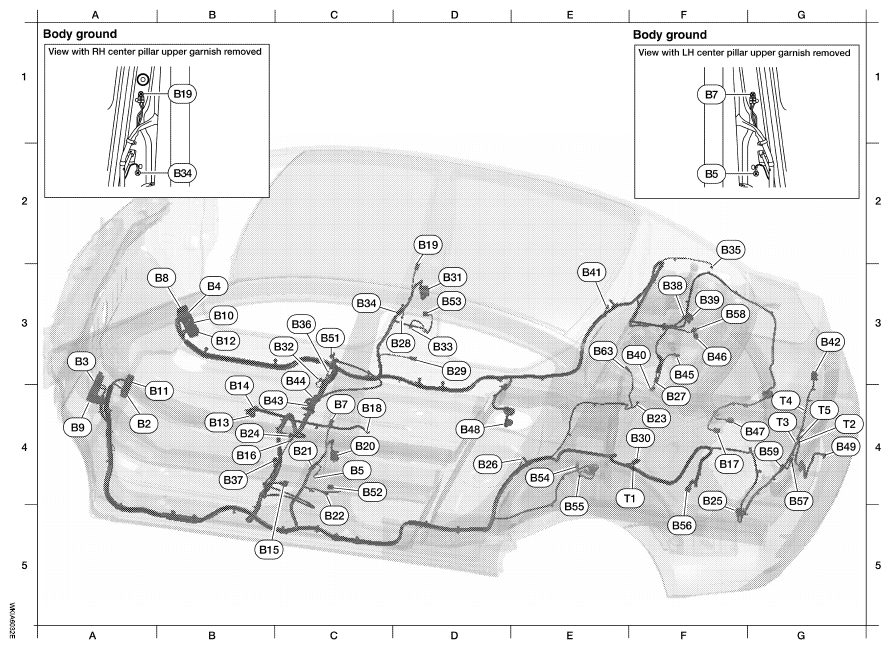

HARNESS SPECIFICATION
| A4 | B2 | GR/16 | : To M7 | F3 | B46 | W/2 | : High mounted stop lamp (without rear spoiler) |
| A3 | B3 | W/2 | : To E5 | G4 | B47 | GR/3 | : EVAP control system pressure sensor |
| B3 | B4 | GR/16 | : To M5 | D4 | B48 | GR/5 | : Fuel level sensor unit and fuel pump |
| C4 | B5 | - | : Body ground (satellite sensor) | G4 | B49 | GR/2 | : Rear bumper antenna |
| C4 | B7 | - | : Body ground | C3 | B51 | Y/2 | : Front RH side air bag module |
| B3 | B8 | W/16 | : To M8 | C4 | B52 | Y/2 | : LH side air bag (satellite) sensor |
| A4 | B9 | W/16 | : To E13 | D3 | B53 | Y/2 | : RH side air bag (satellite) sensor |
| B3 | B10 | W/8 | : To M9 | E4 | B54 | GR/2 | : Rear wheel sensor LH |
| B4 | B11 | W/24 | : To M10 | E5 | B55 | L/2 | : Rear wheel sensor RH |
| B3 | B12 | W/12 | : To M11 | F5 | B56 | W/16 | : Satellite radio tuner |
| B4 | B13 | Y/12 | : Air bag diagnosis sensor unit | G4 | B57 | W/2 | : Trunk room lamp switch |
| B3 | B14 | Y/12 | : Air bag diagnosis sensor unit | F3 | B58 | W/2 | : Trunk room lamp |
| B5 | B15 | W/32 | : Bluetooth control unit | G4 | B59 | W/2 | : Trunk lid opener actuator |
| B4 | B16 | W/3 | : Seat belt buckle switch LH | E3 | B63 | B/1 | : Rear window defogger |
| F4 | B17 | B/2 | : EVAP canister vent control valve | Tail sub-harness | |||
| C4 | B18 | GR/2 | : Front console antenna | F4 | T1 | W/4 | : To B30 |
| D2 | B19 | - | : Body ground | G4 | T2 | BR/2 | : High mounted stop lamp (with rear spoiler) |
| C4 | B20 | W/8 | : To D201 | G4 | T3 | BR/2 | : License plate lamp LH |
| C4 | B21 | W/3 | : Front door switch LH | G4 | T4 | BR/2 | : License plate lamp RH |
| C5 | B22 | Y/2 | : Front LH seat belt pre-tensioner | G4 | T5 | BR/2 | : Trunk opener request switch |
| F4 | B23 | Y/2 | : LH side curtain air bag module | ||||
| B4 | B24 | B/1 | : Parking brake switch | ||||
| F5 | B25 | W/6 | : Rear combination lamp LH | ||||
| D4 | B26 | W/3 | : Rear door switch LH | ||||
| F4 | B27 | W/2 | : Rear speaker LH | ||||
| D3 | B28 | W/3 | : Front door switch RH | ||||
| D3 | B29 | W/3 | : Belt tension sensor | ||||
| F4 | B30 | W/4 | : To T1 | ||||
| D3 | B31 | W/8 | : To D301 | ||||
| C3 | B32 | W/3 | : Seat belt buckle switch RH | ||||
| D3 | B33 | Y/2 | : Front RH seat belt pre-tensioner | ||||
| C3 | B34 | - | : Body ground (satellite sensor) | ||||
| F2 | B35 | Y/2 | : RH side curtain air bag module | ||||
| C3 | B36 | W/8 | : To B150 | ||||
| B4 | B37 | Y/2 | : Front LH side air bag module | ||||
| F3 | B38 | W/4 | : Rear speaker assembly RH | ||||
| F3 | B39 | W/2 | : Rear speaker RH | ||||
| F3 | B40 | W/4 | : Rear speaker assembly LH | ||||
| E3 | B41 | W/3 | : Rear door switch RH | ||||
| G3 | B42 | W/6 | : Rear combination lamp RH | ||||
| B4 | B43 | W/24 | : Audio amplifier | ||||
| C4 | B44 | W/8 | : Audio amplifier | ||||
| F3 | B45 | GR/2 | : Rear parcel shelf antenna | ||||
