60:40 Split Fold Down Left Seatback: Removal

  1. Lift the right seatback and remove from the vehicle.

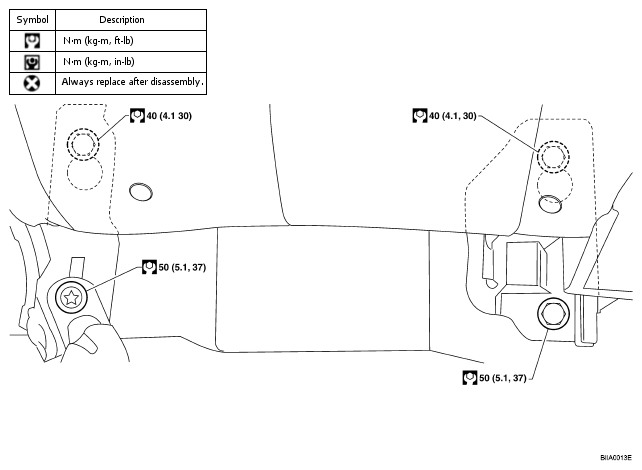

    Fig 1: Lower Seatback Mounting Bolts Torque Specifications - Split Fold Down Left Seatback
    G04928093Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the lower seatback mounting bolts from the right rear seat back brackets.
  3. Slide rear seat back brackets toward the rear of the vehicle.
  4. Lift the right seatback and remove from the vehicle.
