Wiring Diagram - TURN -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

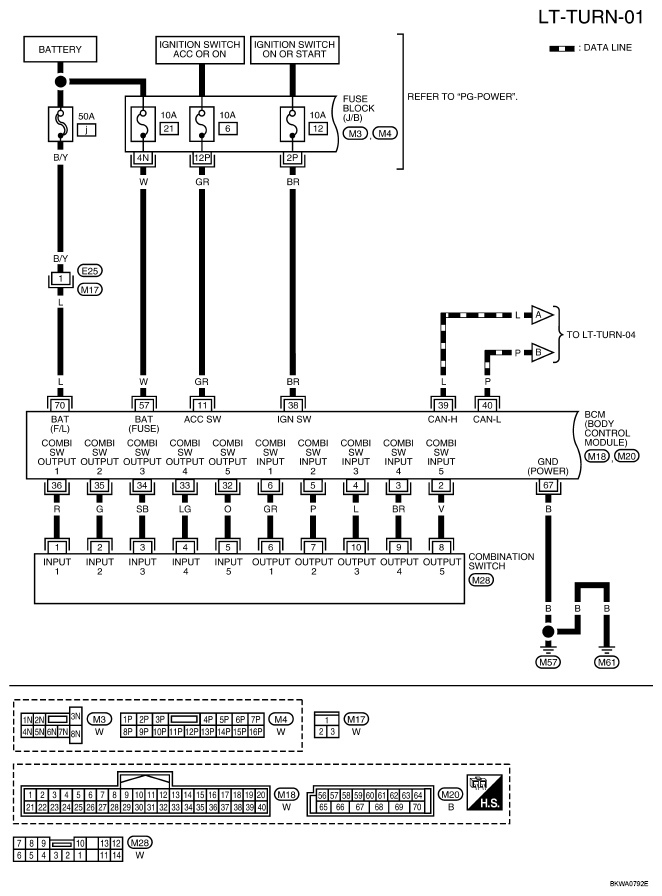

Fig 1: Wiring Diagram - LT-TURN-01
G04928335Courtesy of NISSAN MOTOR CO., U.S.A.

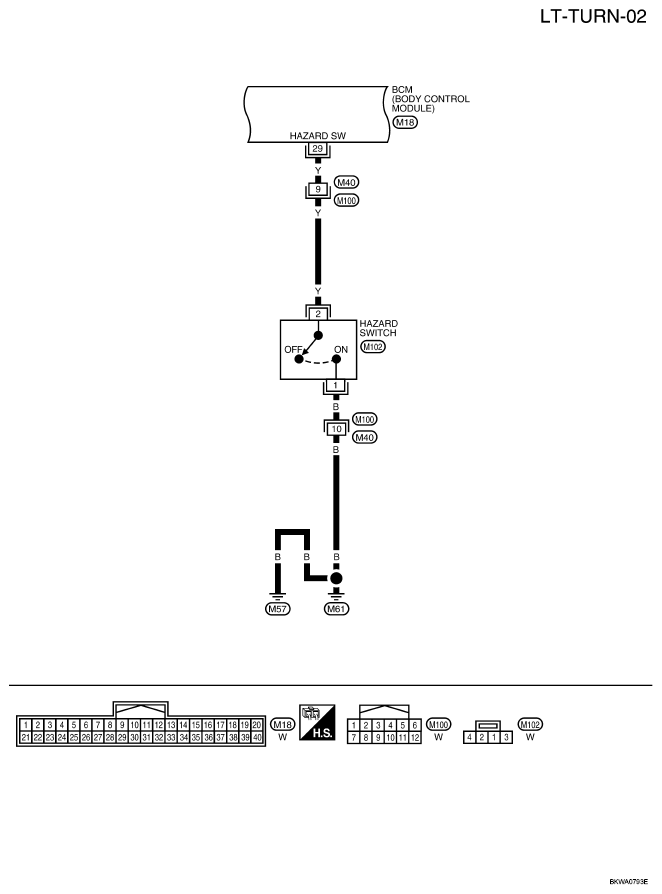

Fig 2: Wiring Diagram - LT-TURN-02
G04928336Courtesy of NISSAN MOTOR CO., U.S.A.

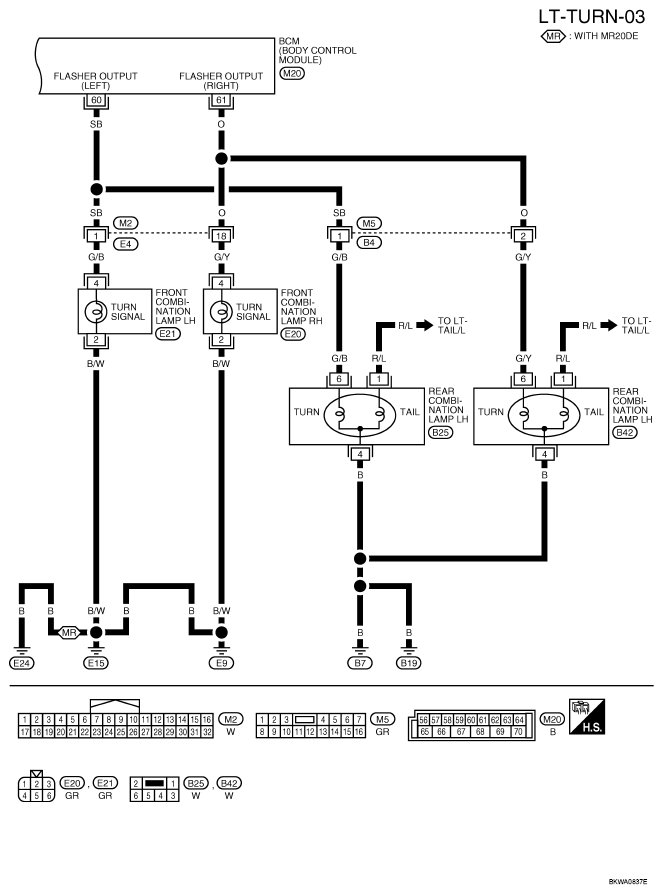

Fig 3: Wiring Diagram - LT-TURN-03
G04928337Courtesy of NISSAN MOTOR CO., U.S.A.

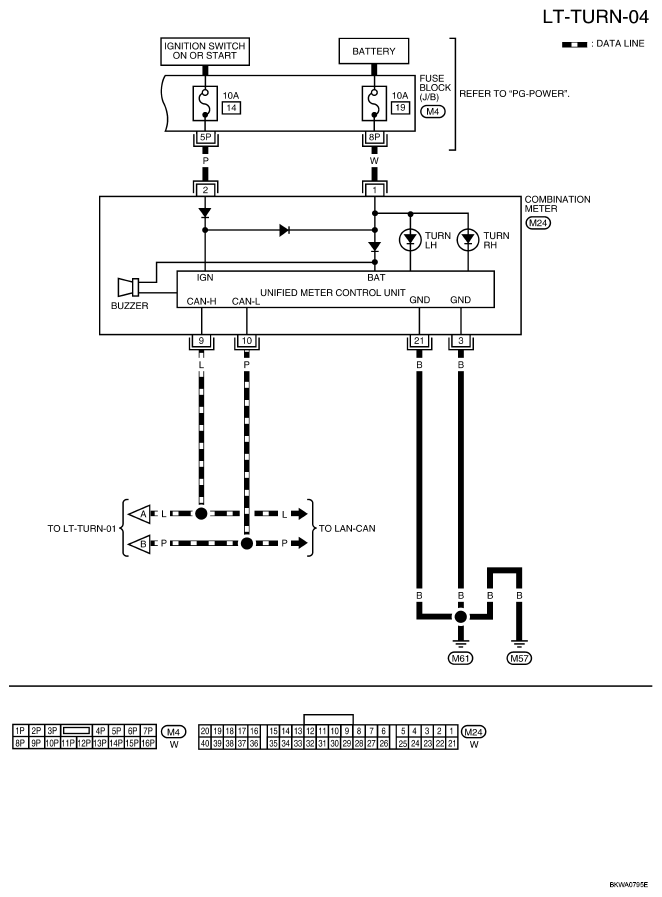

Fig 4: Wiring Diagram - LT-TURN-04
G04928338Courtesy of NISSAN MOTOR CO., U.S.A.
