Wiring Diagram - WARN -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

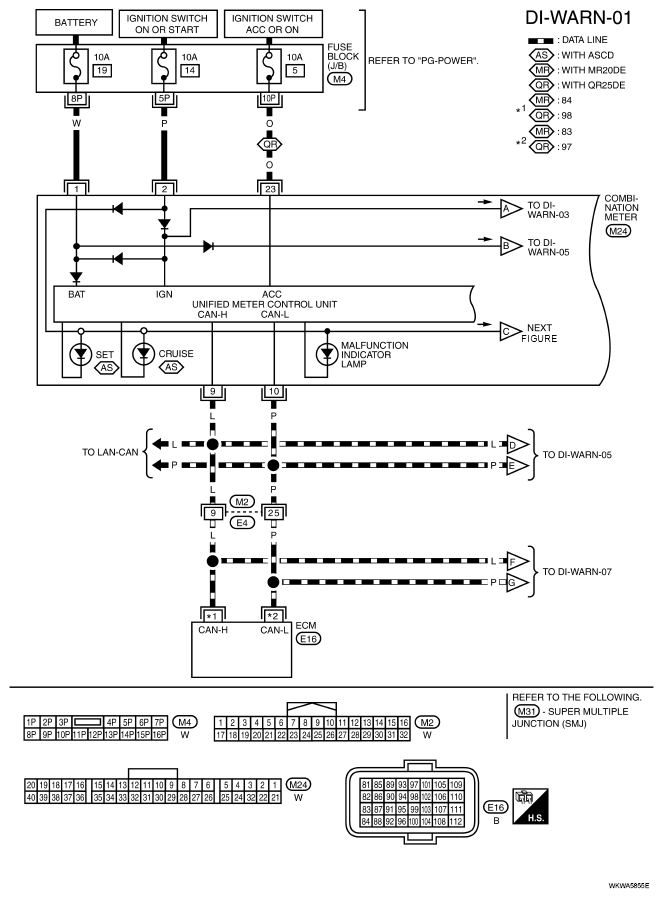

Fig 1: Wiring Diagram - DI-WARN-01

G04928432

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Wiring Diagram - DI-WARN-02

G04928433

Courtesy of NISSAN MOTOR CO., U.S.A.

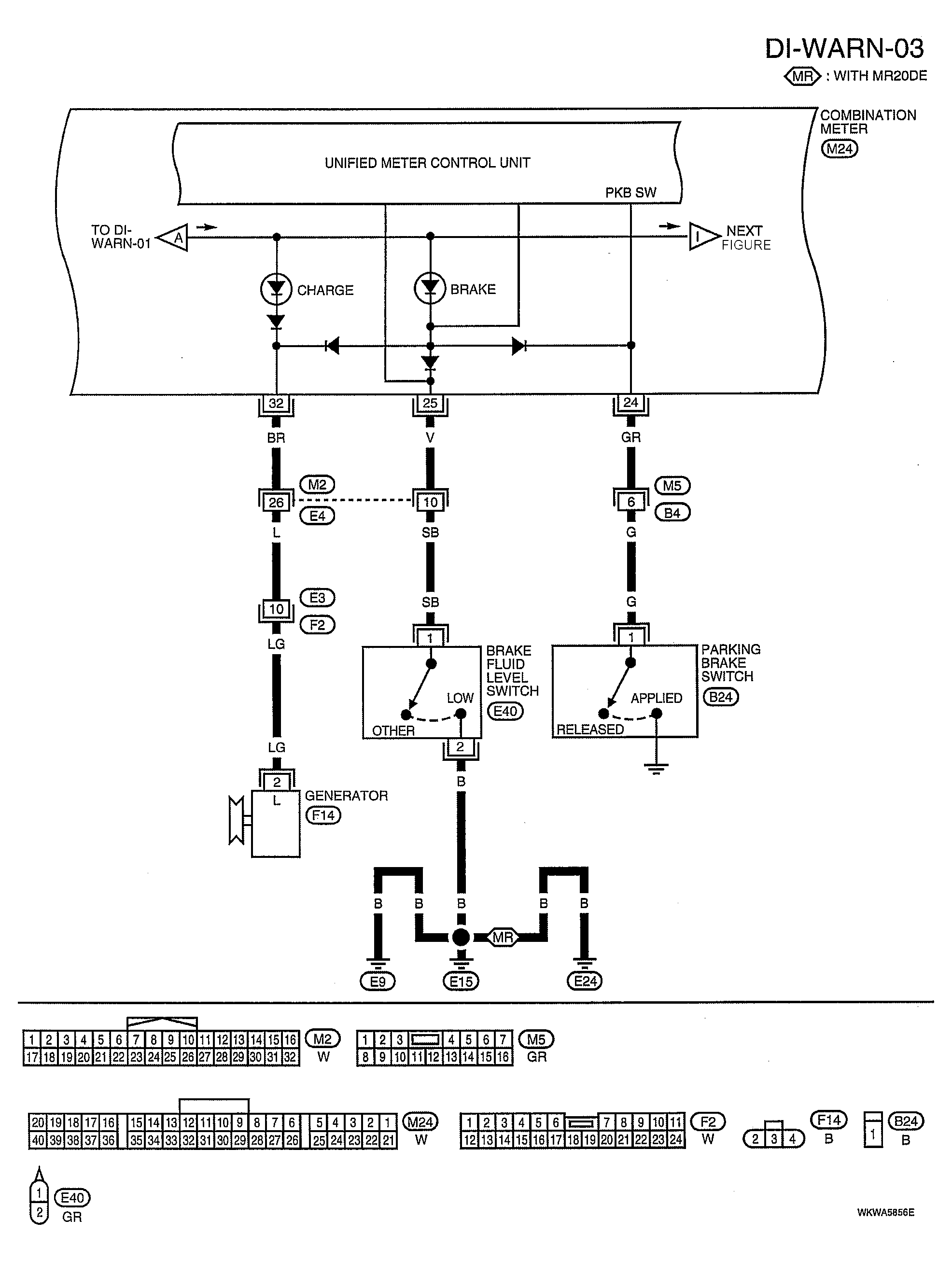

Fig 3: Wiring Diagram - DI-WARN-03

G00455496

Courtesy of NISSAN MOTOR CO., U.S.A.

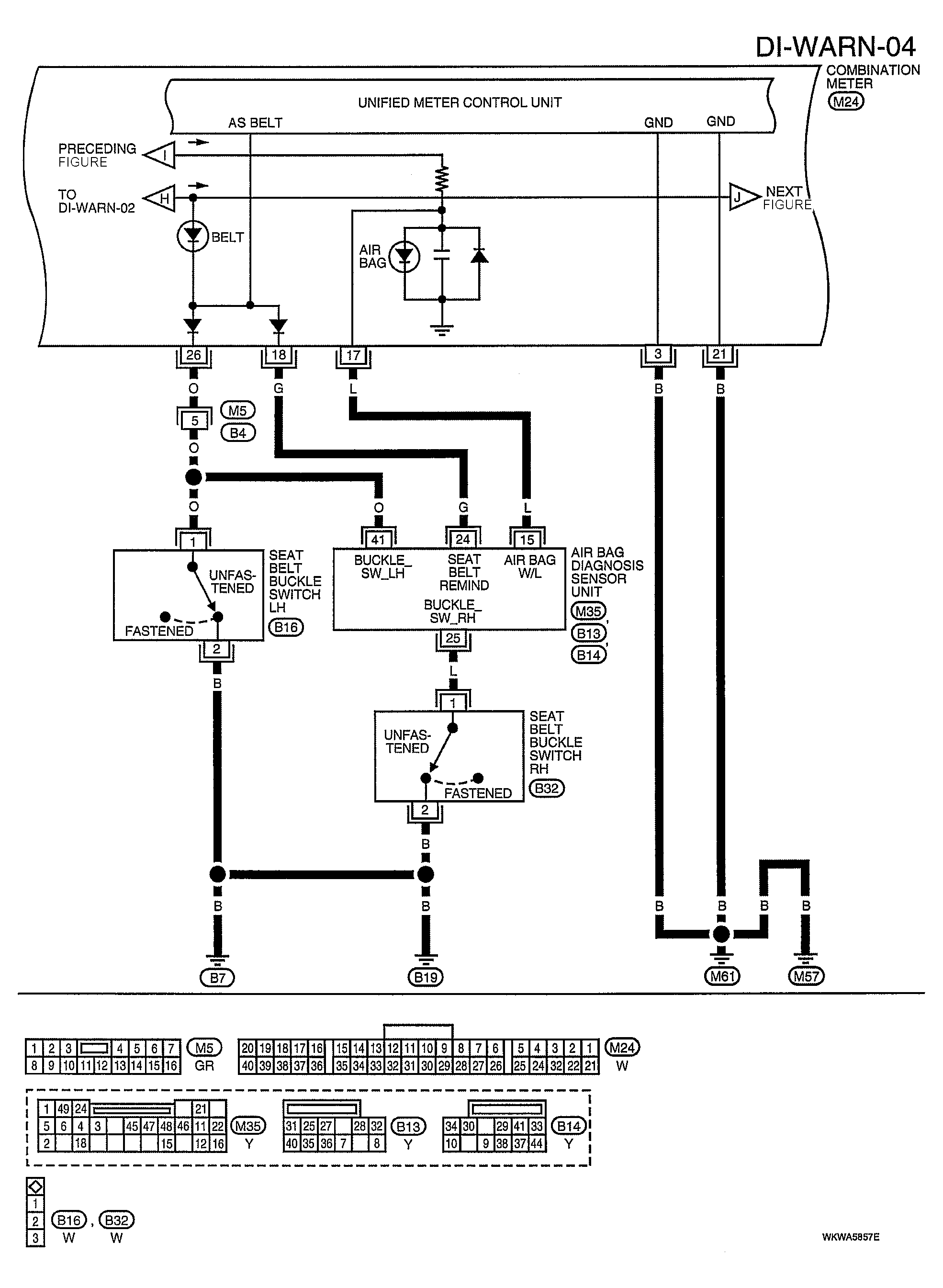

Fig 4: Wiring Diagram - DI-WARN-04

G00455497

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Wiring Diagram - DI-WARN-05

G04928436

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Wiring Diagram - DI-WARN-06

G04928437

Courtesy of NISSAN MOTOR CO., U.S.A.

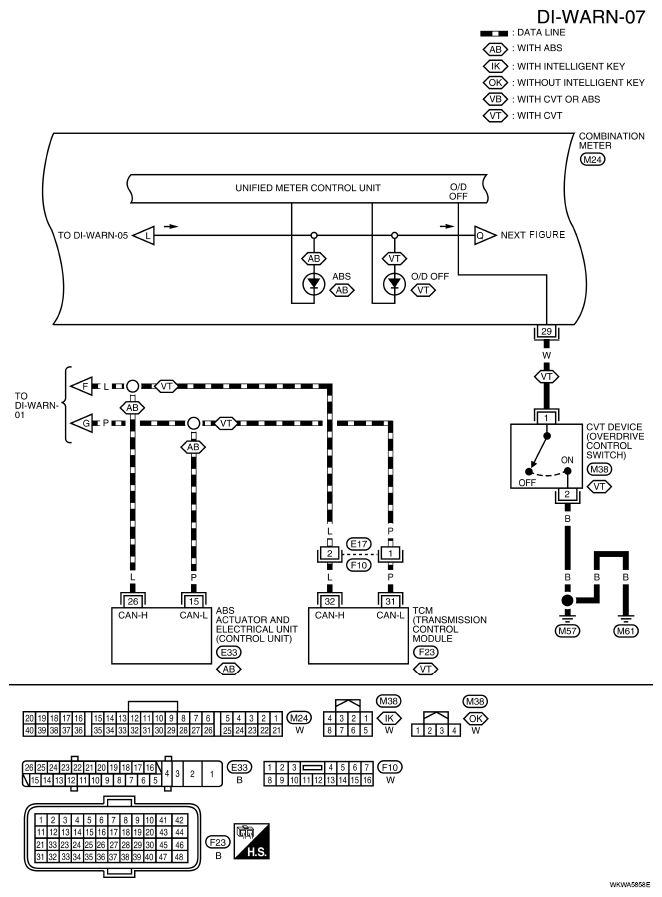

Fig 7: Wiring Diagram - DI-WARN-07

G04928438

Courtesy of NISSAN MOTOR CO., U.S.A.

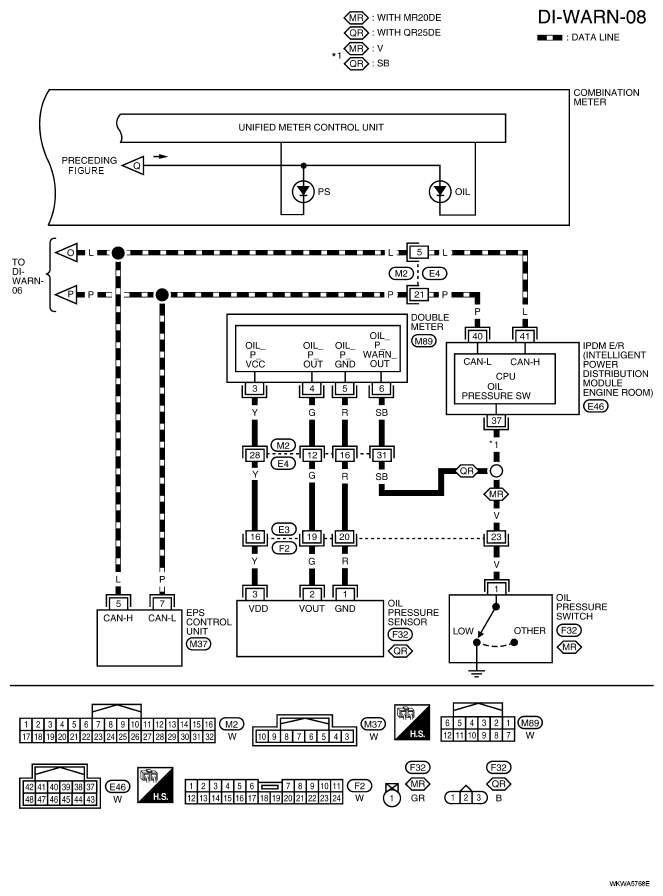

Fig 8: Wiring Diagram - DI-WARN-08

G04928439

Courtesy of NISSAN MOTOR CO., U.S.A.
