Wiring Diagram - 2METER -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

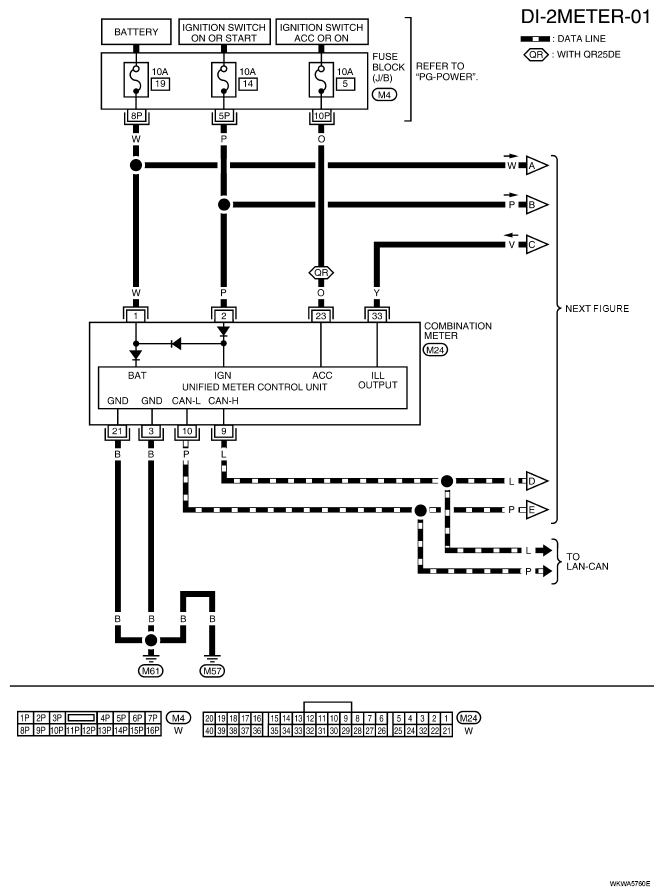

Fig 1: Wiring Diagram - DI-2METER-01
G04928419Courtesy of NISSAN MOTOR CO., U.S.A.

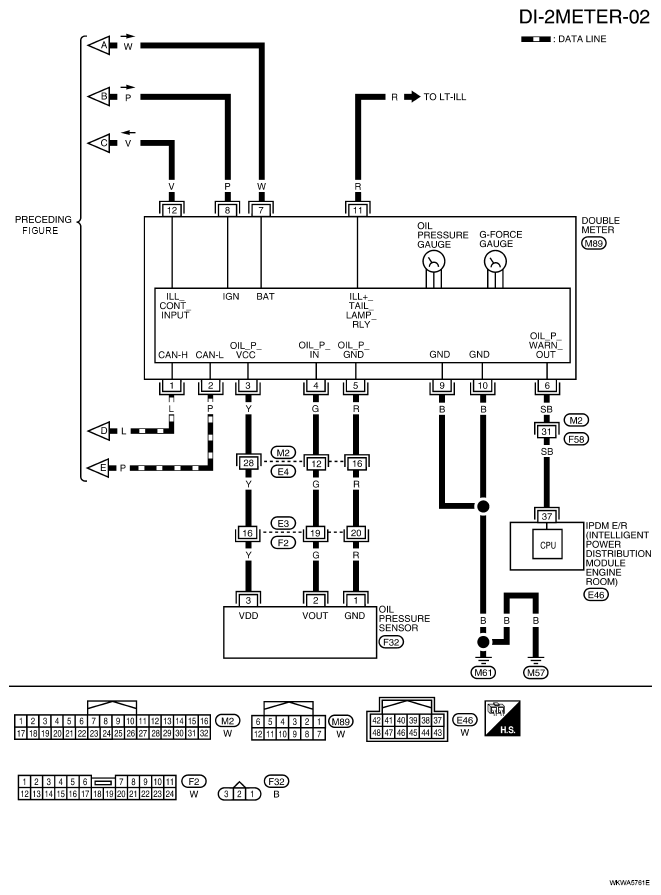

Fig 2: Wiring Diagram - DI-2METER-02
G04928420Courtesy of NISSAN MOTOR CO., U.S.A.
