Home >> Nissan-Datsun >> 2007 >> Sentra SE-R >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brake System >> Brake Pedal >> Removal and Installation >> Components

Removal and Installation: Components

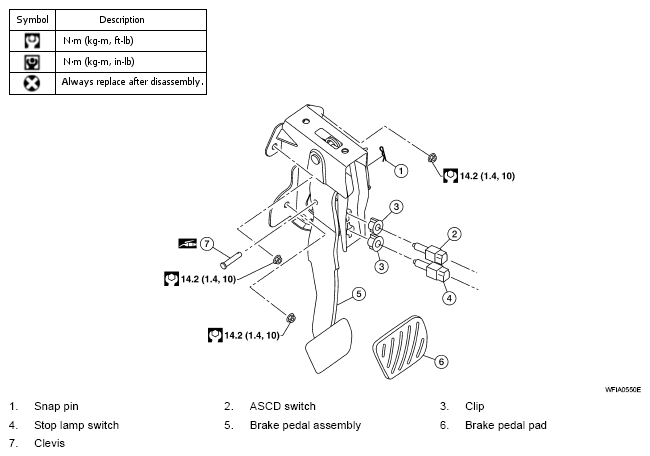

Fig 1: Brake Pedal Replacement Components With Torque Specifications

G04927293
