Battery Power Supply - Ignition Switch In Any Position

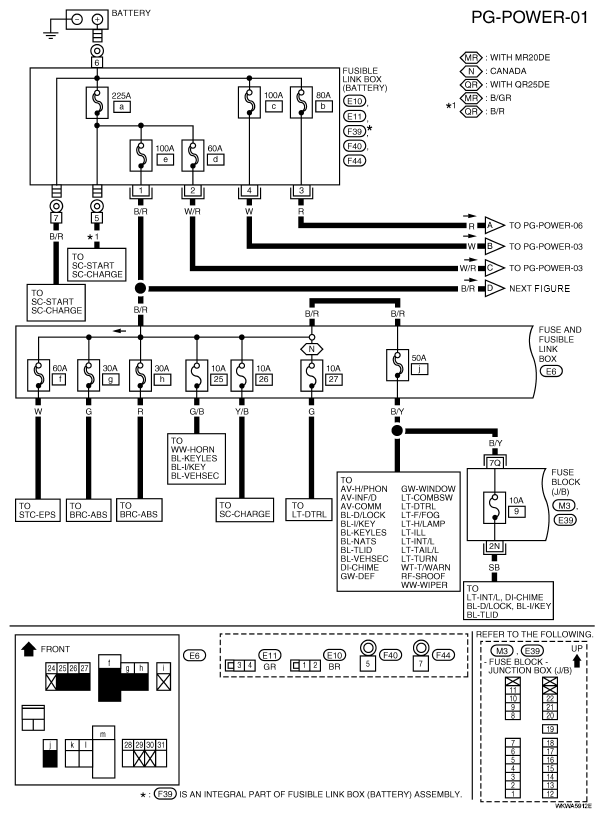

Fig 1: Wiring Diagram - PG-POWER-01

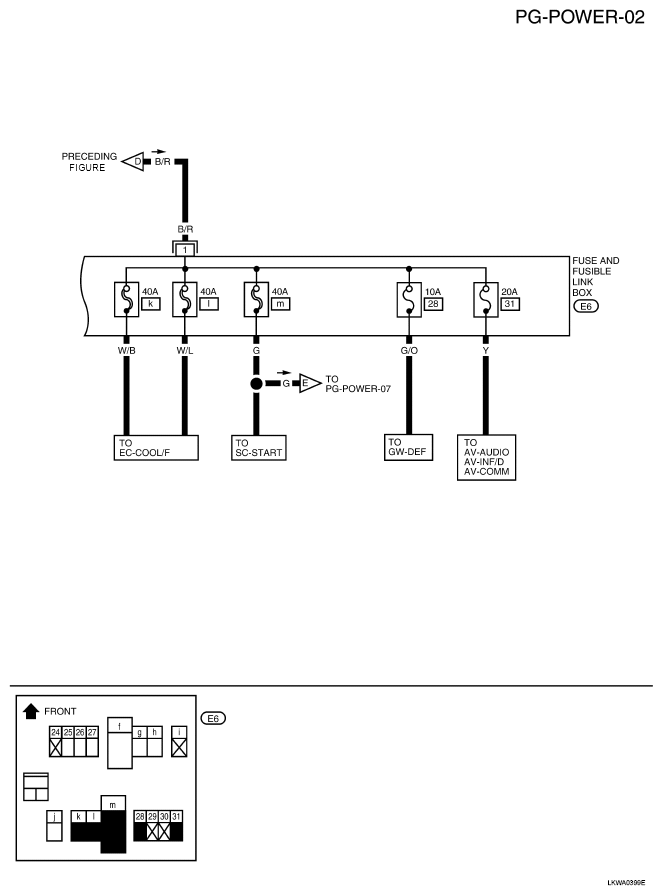

Fig 2: Wiring Diagram - PG-POWER-02

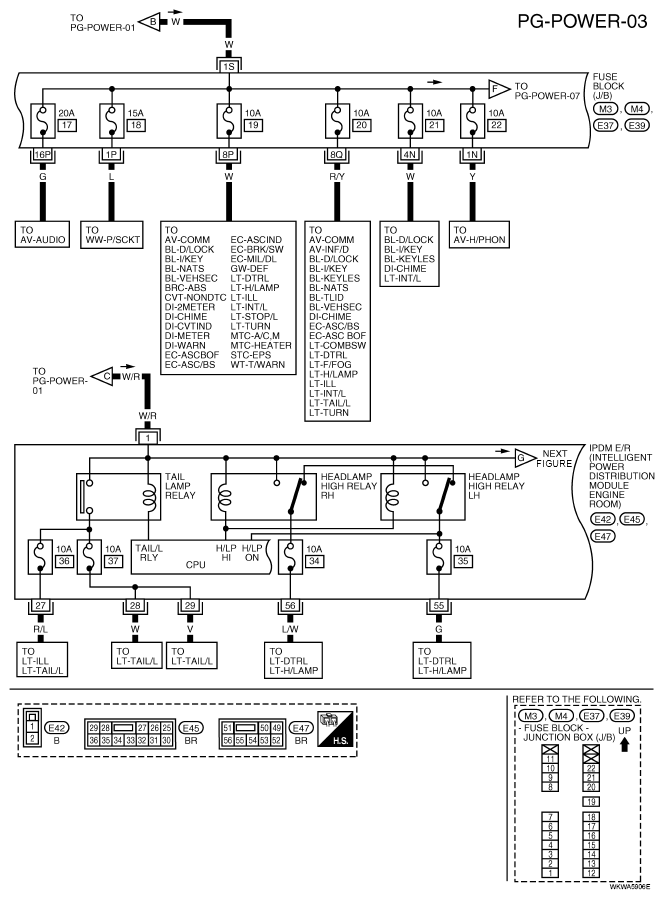

Fig 3: Wiring Diagram - PG-POWER-03

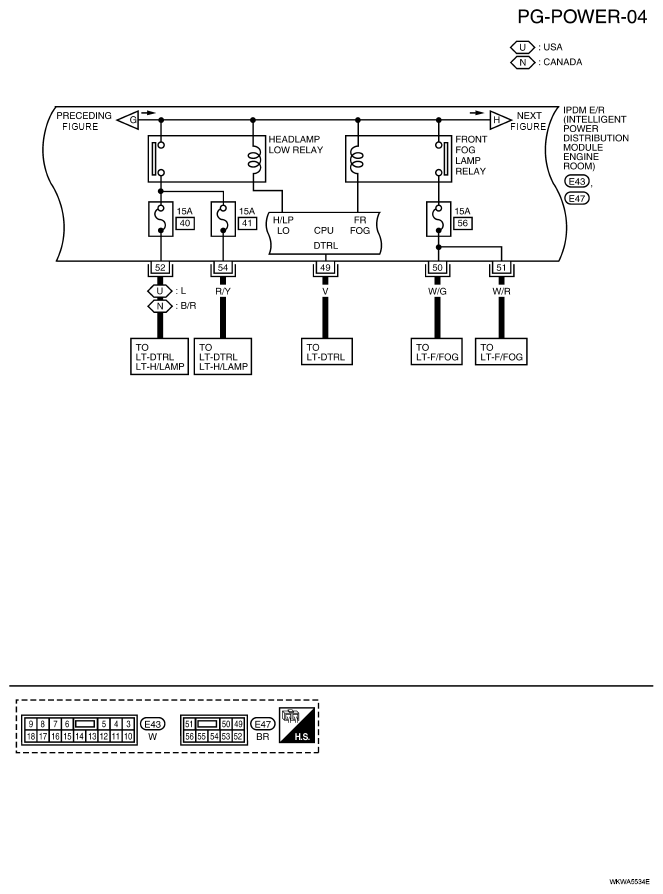

Fig 4: Wiring Diagram - PG-POWER-04

Fig 5: Wiring Diagram - PG-POWER-05

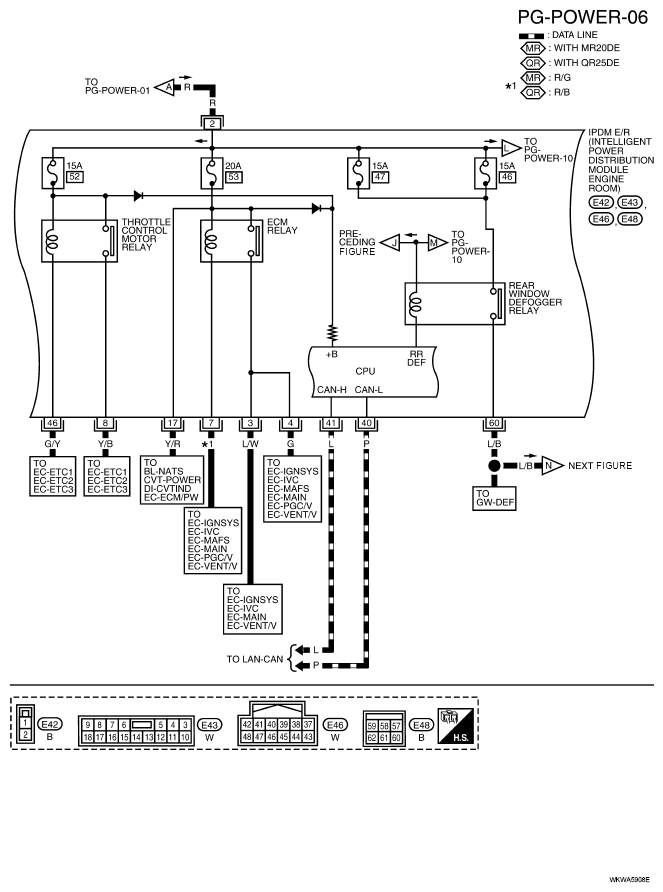

Fig 6: Wiring Diagram - PG-POWER-06
