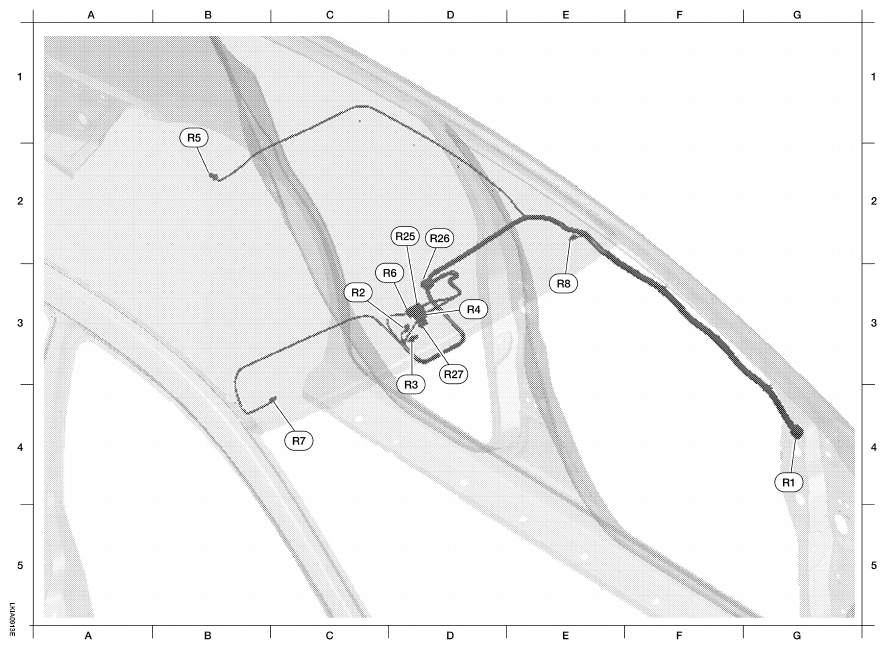

Room Lamp Harness
HARNESS SPECIFICATION
| G4 | R1 | W/12 | : To M41 | ||||
| C3 | R2 | W/4 | : Bluetooth ON indicator | ||||
| D3 | R3 | W/2 | : Map lamp | ||||
| D3 | R4 | W/4 | : Microphone | ||||
| B1 | R5 | W/2 | : Interior room lamp | ||||
| C3 | R6 | BR/4 | : To R25 | ||||
| C4 | R7 | W/2 | : Vanity mirror lamp LH | ||||
| E3 | R8 | W/2 | : Vanity mirror lamp RH | ||||
| Sunroof sub-harness | |||||||
| D3 | R25 | BR/4 | : To R6 | ||||
| C3 | R26 | GR/10 | : Sunroof motor assembly | ||||
| D3 | R27 | W/3 | : Sunroof switch | ||||
