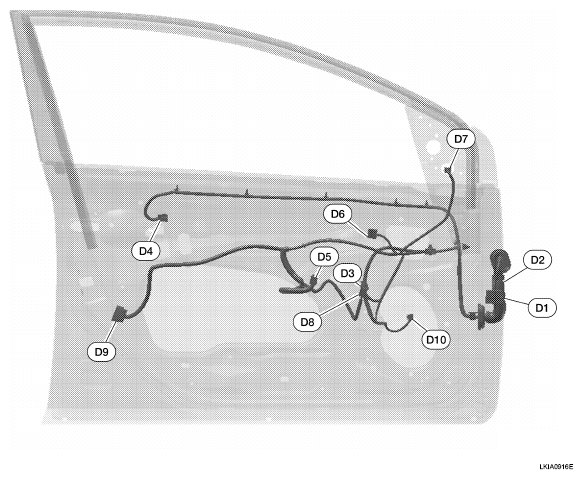

Front Door LH Harness
HARNESS SPECIFICATION
| D1 | W/16 | : To M12 (with intelligent key) | D6 | GR/8 | : Door lock/unlock switch |
| D1 | W/12 | : To M12 (without intelligent key) | D7 | W/8 | : Door mirror LH |
| D2 | W/12 | : To M13 | D8 | GR/2 | : Front power window motor LH |
| D3 | W10 | : Door mirror switch | D9 | GR/6 | : Front door lock assembly LH |
| D4 | B/4 | : Front outside handle LH | D10 | W/2 | : Front door speaker LH |
| D5 | W16 | : Main power window and door lock/unlock switch |
