Wiring Diagram - HORN -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

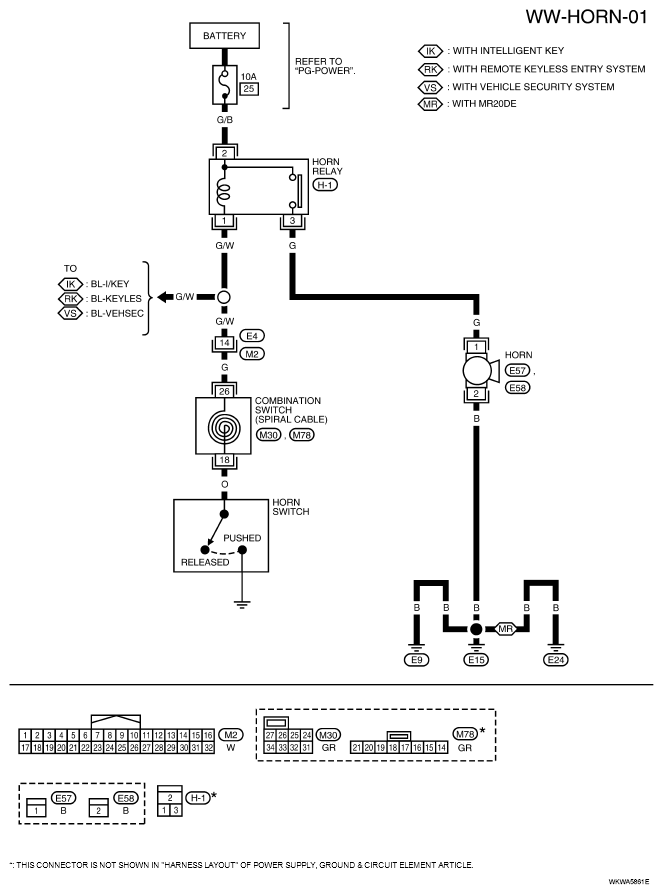

Fig 1: Wiring Diagram - WW-HORN-01

G04928500
