Wiring Diagram - WIPER -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

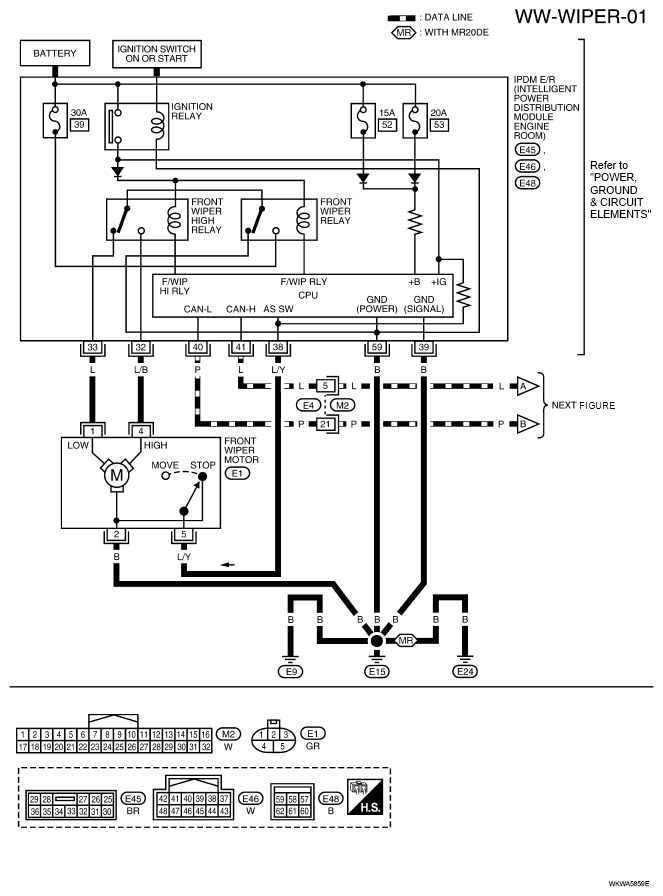

Fig 1: Wiring Diagram - WW-WIPER-01

G04928477

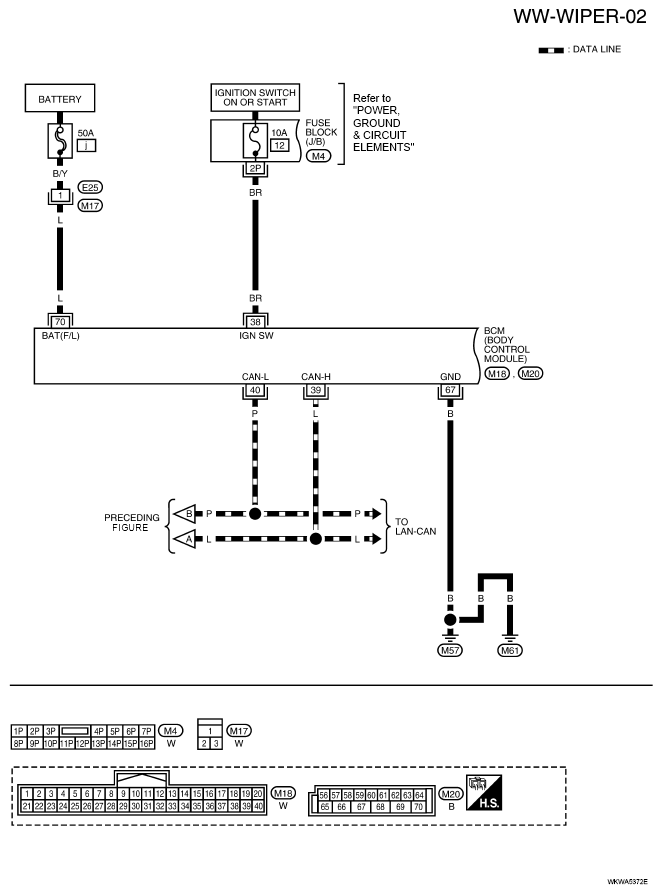

Fig 2: Wiring Diagram - WW-WIPER-02

G04928478

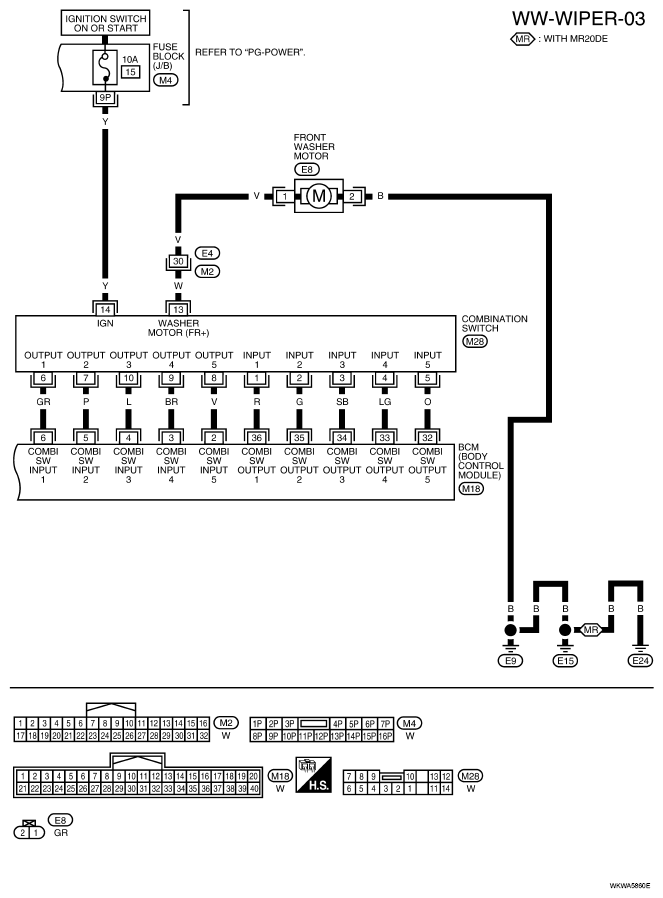

Fig 3: Wiring Diagram - WW-WIPER-03

G04928479
