DTC P0222, P0223 TP Sensor: Wiring Diagram

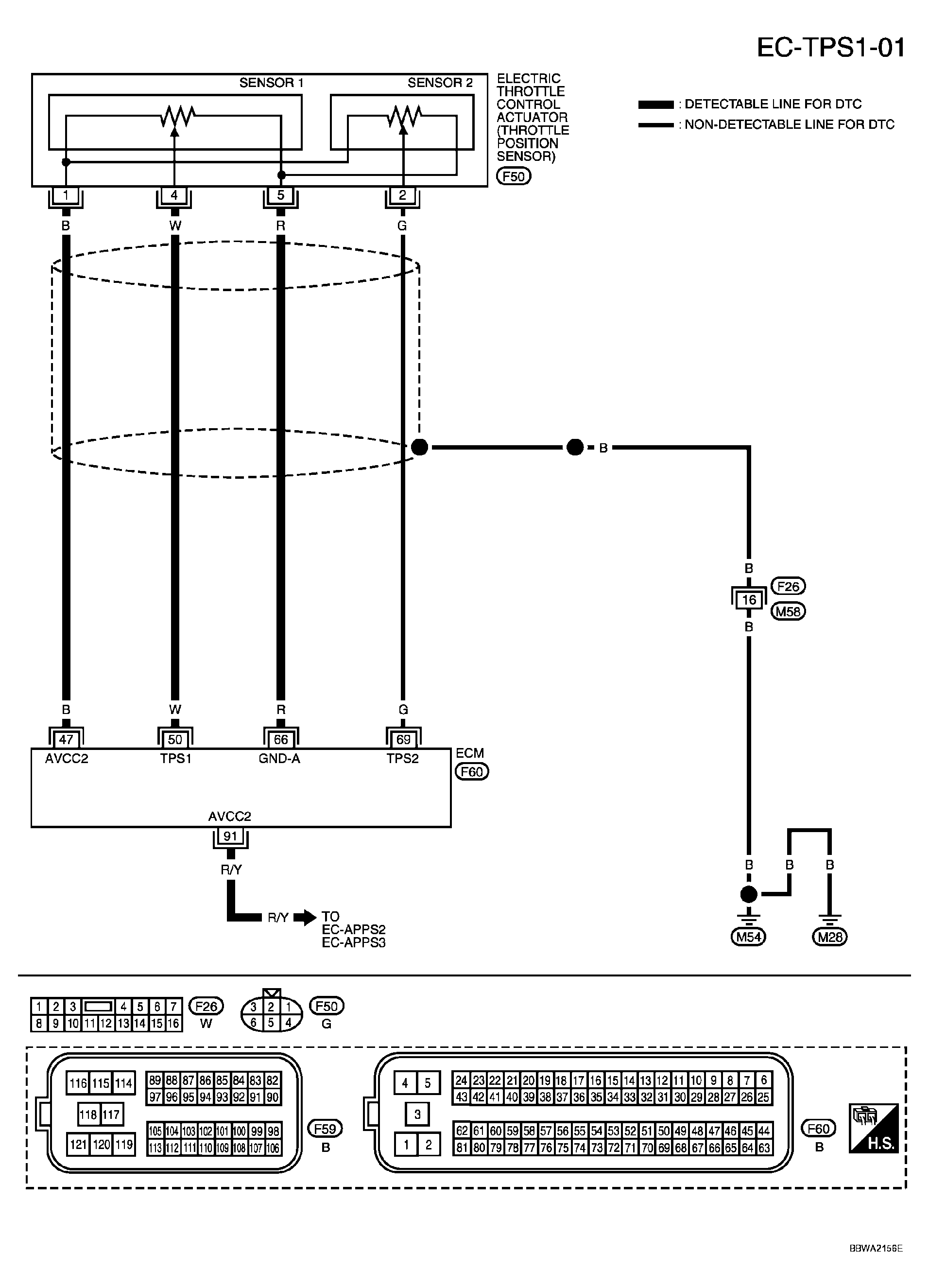

Fig 1: Identifying Wiring Diagram (EC-TPS1-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

WIRE COLOR AND TERMINAL NO. DESCRIPTION

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
47	B	Sensor power supply (Throttle position sensor)	[Ignition switch: ON]	Approximately 5V
50	W	Throttle position sensor 1	[Ignition switch: ON]  Engine stopped Shift lever: D (A/T), 1ST (M/T) Accelerator pedal: Fully released	More than 0.36V
			[Ignition switch: ON]  Engine stopped Shift lever: D (A/T), 1ST (M/T) Accelerator pedal: Fully depressed	Less than 4.75V
66	R	Sensor ground (Throttle position sensor)	[Engine is running]  Warm-up condition  Idle speed	Approximately 0V
69	G	Throttle position sensor 2	[Ignition switch: ON]  Engine stopped Shift lever: D (A/T), 1ST (M/T) Accelerator pedal: Fully released	Less than 4.75V
		[Ignition switch: ON]  Engine stopped Shift lever: D (A/T), 1ST (M/T) Accelerator pedal: Fully depressed		More than 0.36V
91	R/Y	Sensor power supply (Accelerator pedal position sensor 2)	[Ignition switch: ON]	Approximately 5V
