Connecting Rod Bend And Torsion

Check with connecting rod aligner.
Bend limit: 0.15 mm (0.0059 in) per 100 mm (3.94 in) length

Torsion limit: 0.30 mm (0.0118 in) per 100 mm (3.94 in) length

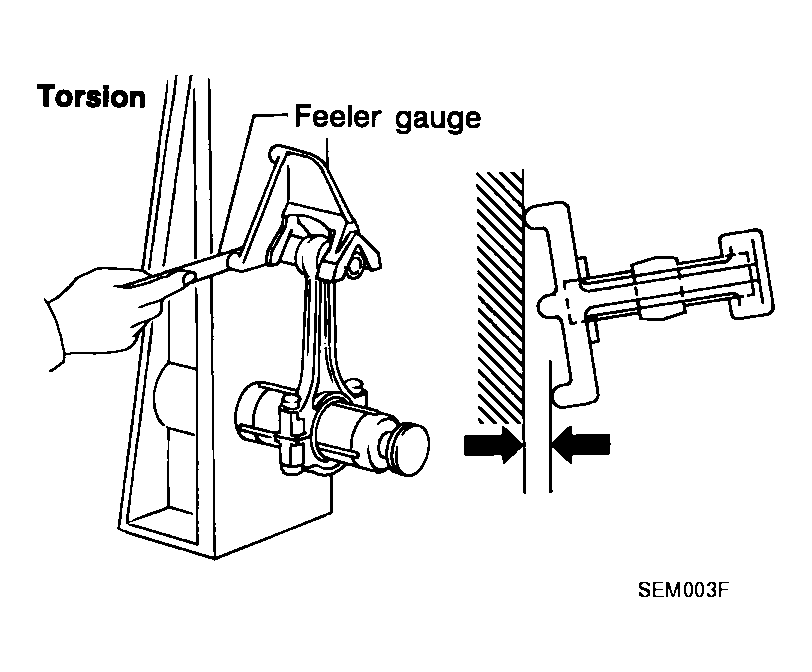

Fig 1: Checking Connecting Rod Torsion
Courtesy of NISSAN MOTOR CO., U.S.A.
If it exceeds the limit, replace connecting rod assembly.

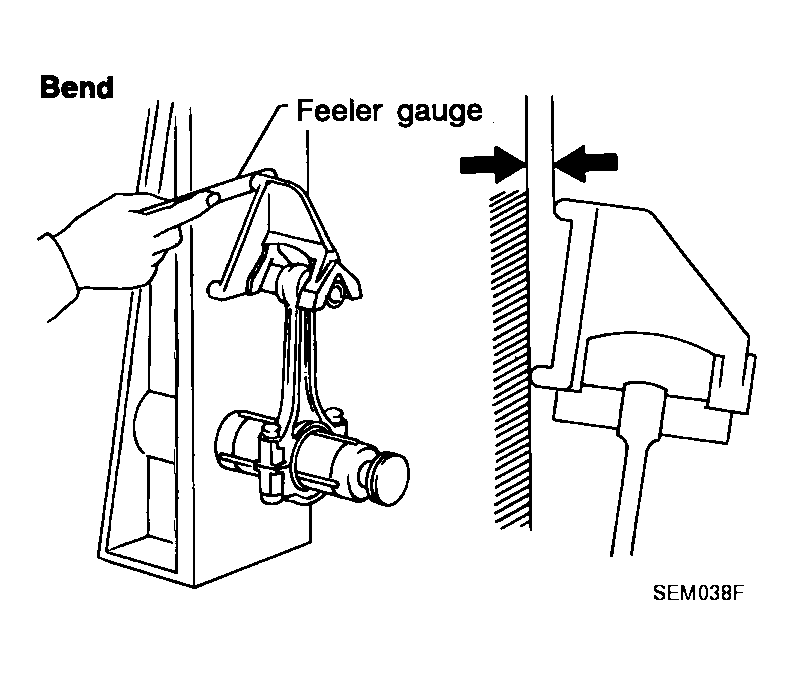

Fig 2: Checking Connecting Rod Bend

G04190581

Courtesy of NISSAN MOTOR CO., U.S.A.
