Engine Control Harness
>>
QG18DE (ULEV)
QG18DE (ULEV)

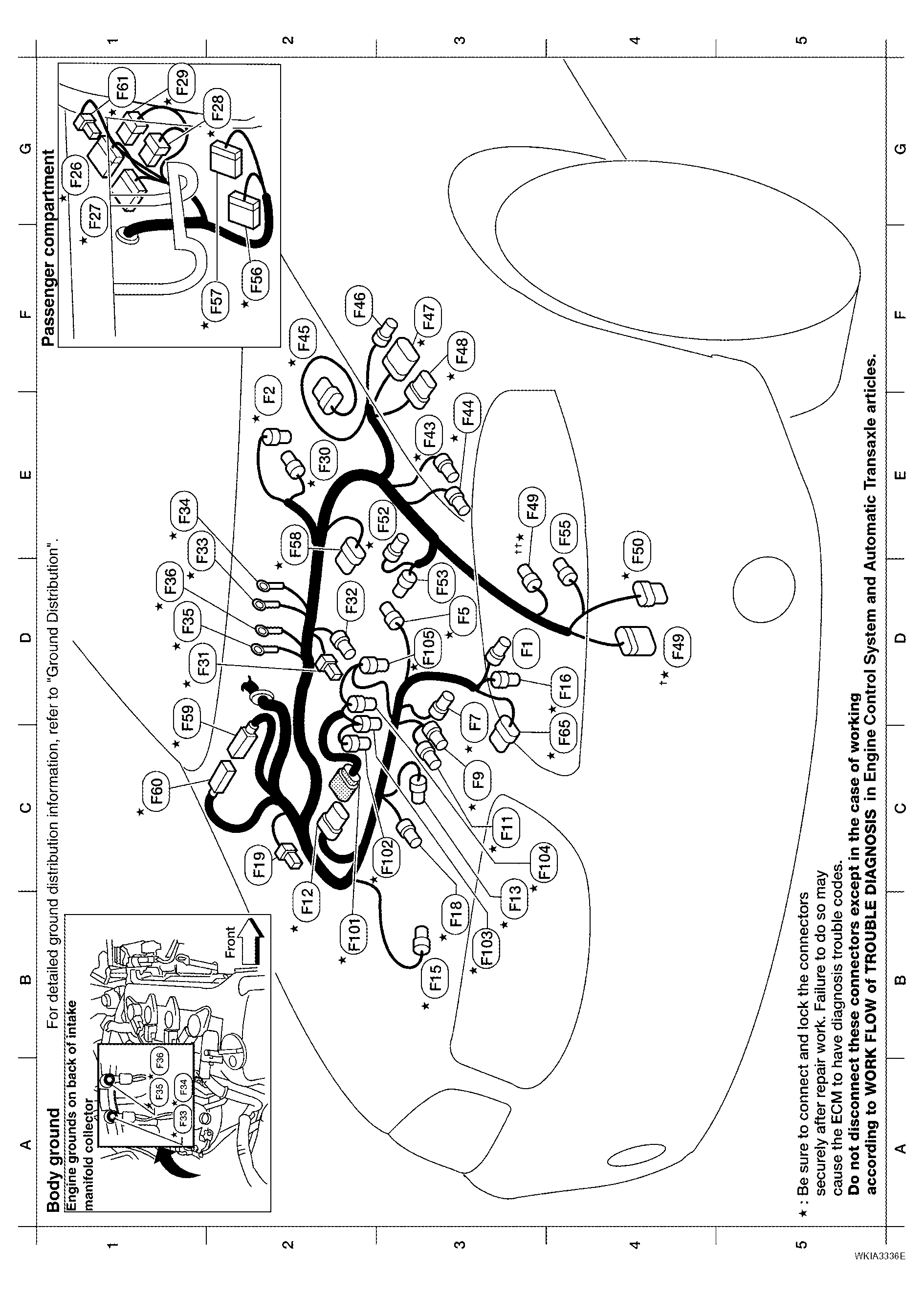

Fig 1: Identifying Engine Control Harness QG18DE (ULEV) (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

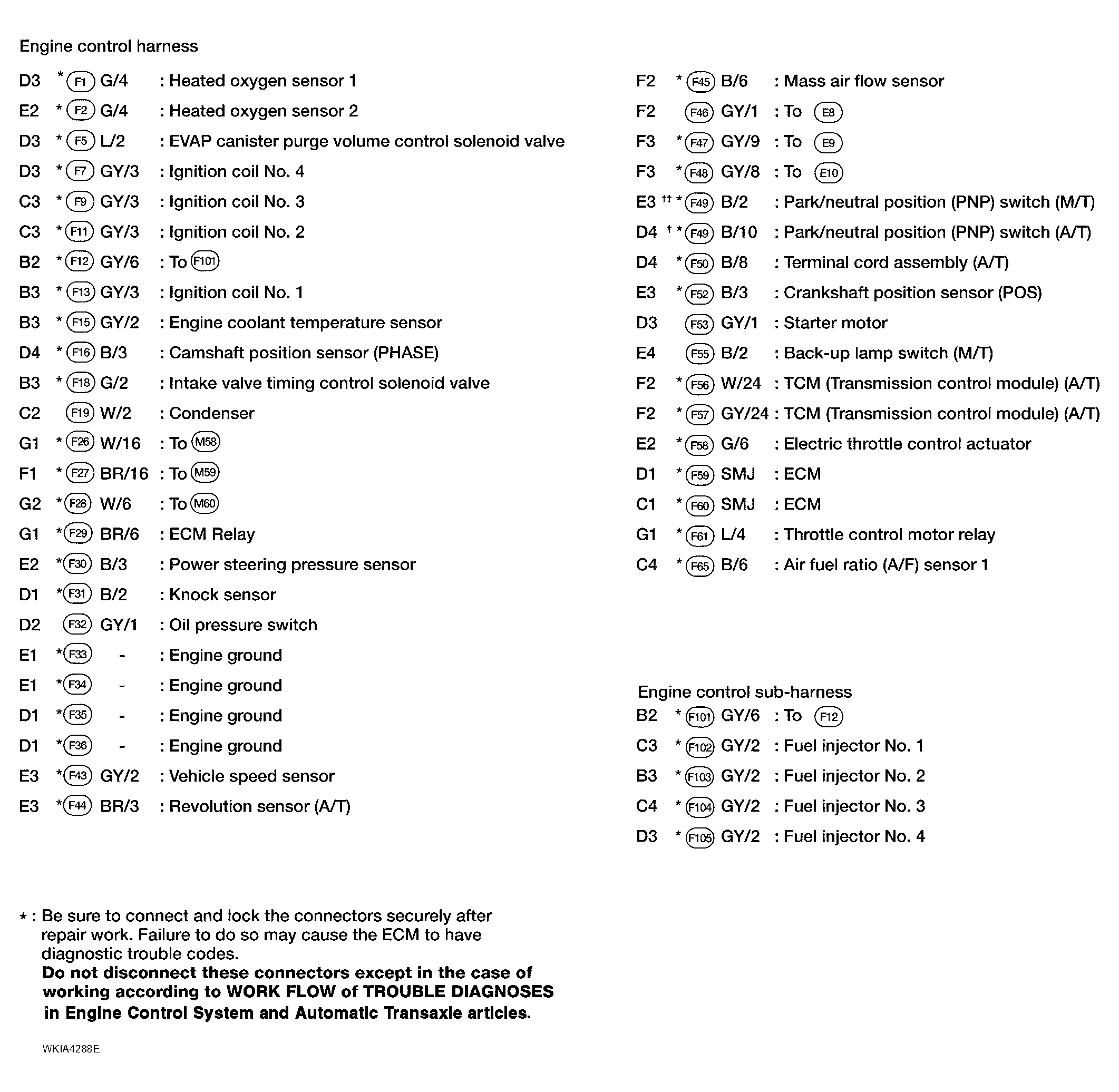

Fig 2: Identifying Engine Control Harness QG18DE (ULEV) (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
