Wiring Diagram - HORN -

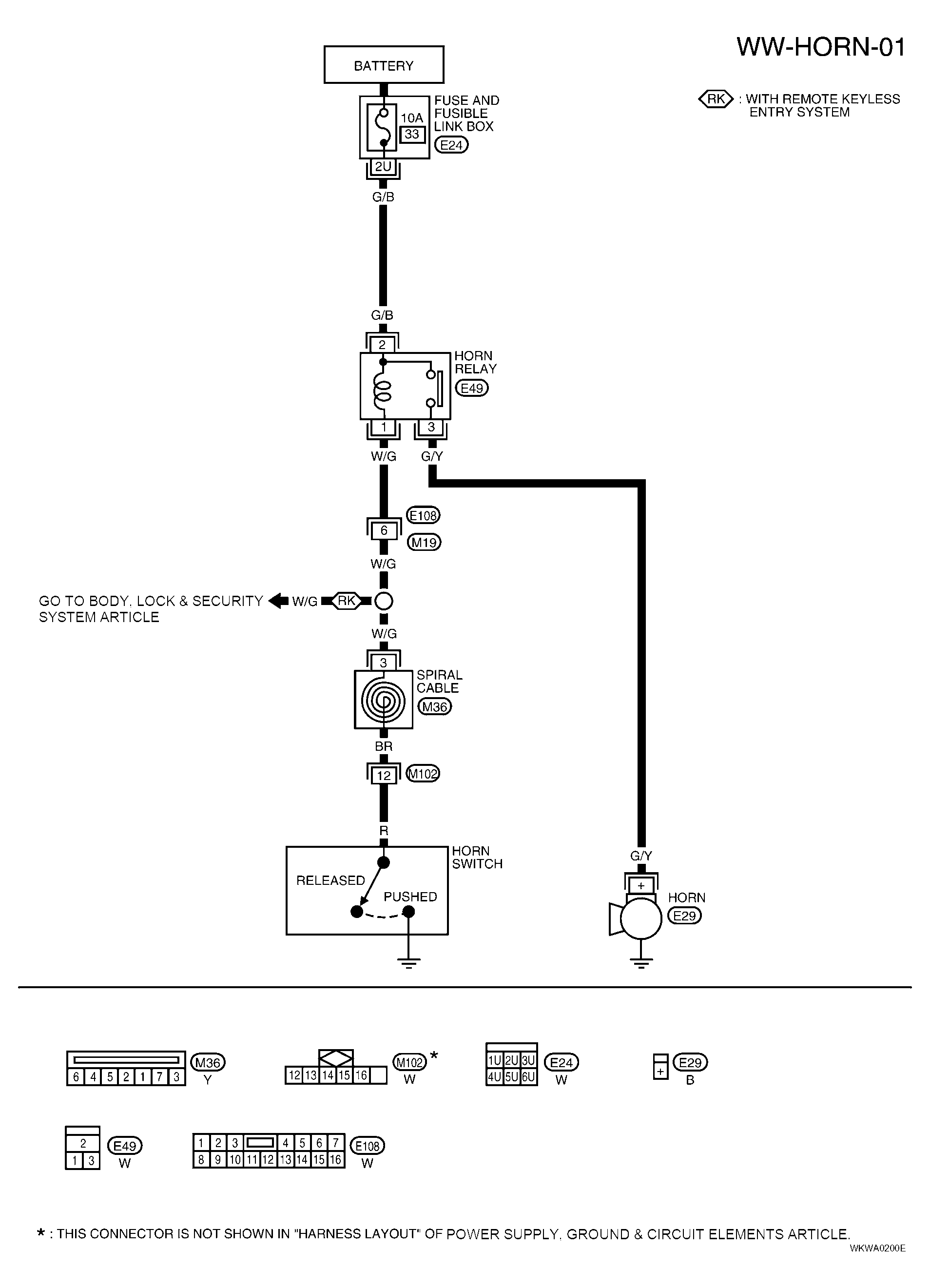

Fig 1: Horn Wiring Diagram WW-HORN-01

G04195504

Courtesy of NISSAN MOTOR CO., U.S.A.
