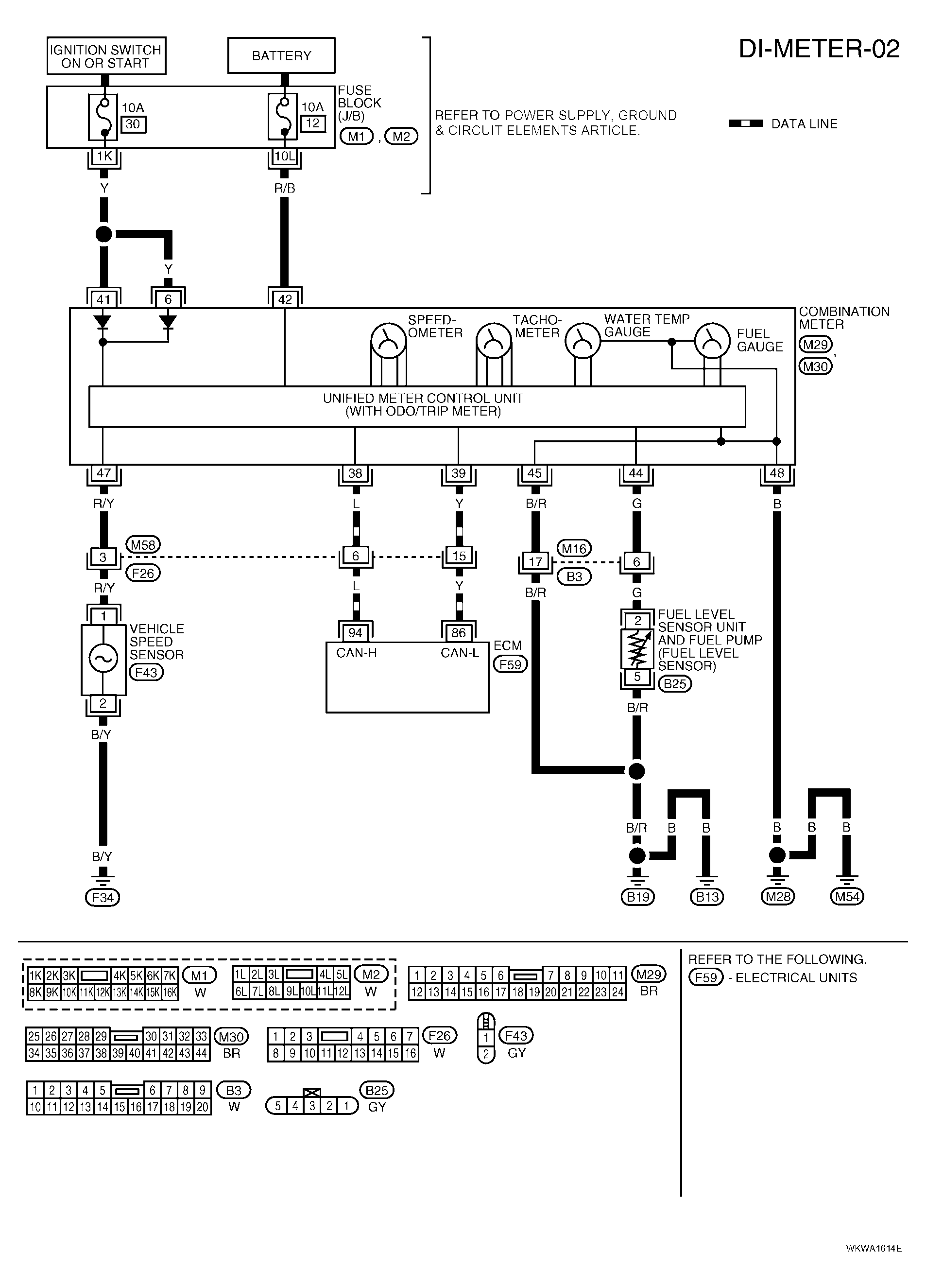

Home >> Nissan-Datsun >> 2006 >> Sentra SE-R >> Repair and Diagnosis (Single Page) >> Electrical >> Gauges >> Driver Information System >> Meters And Gauges >> Wiring Diagram - METER - >> With Tachometer (QG18DE Models)
