Ignition Power Supply - Ignition SW. In "On"

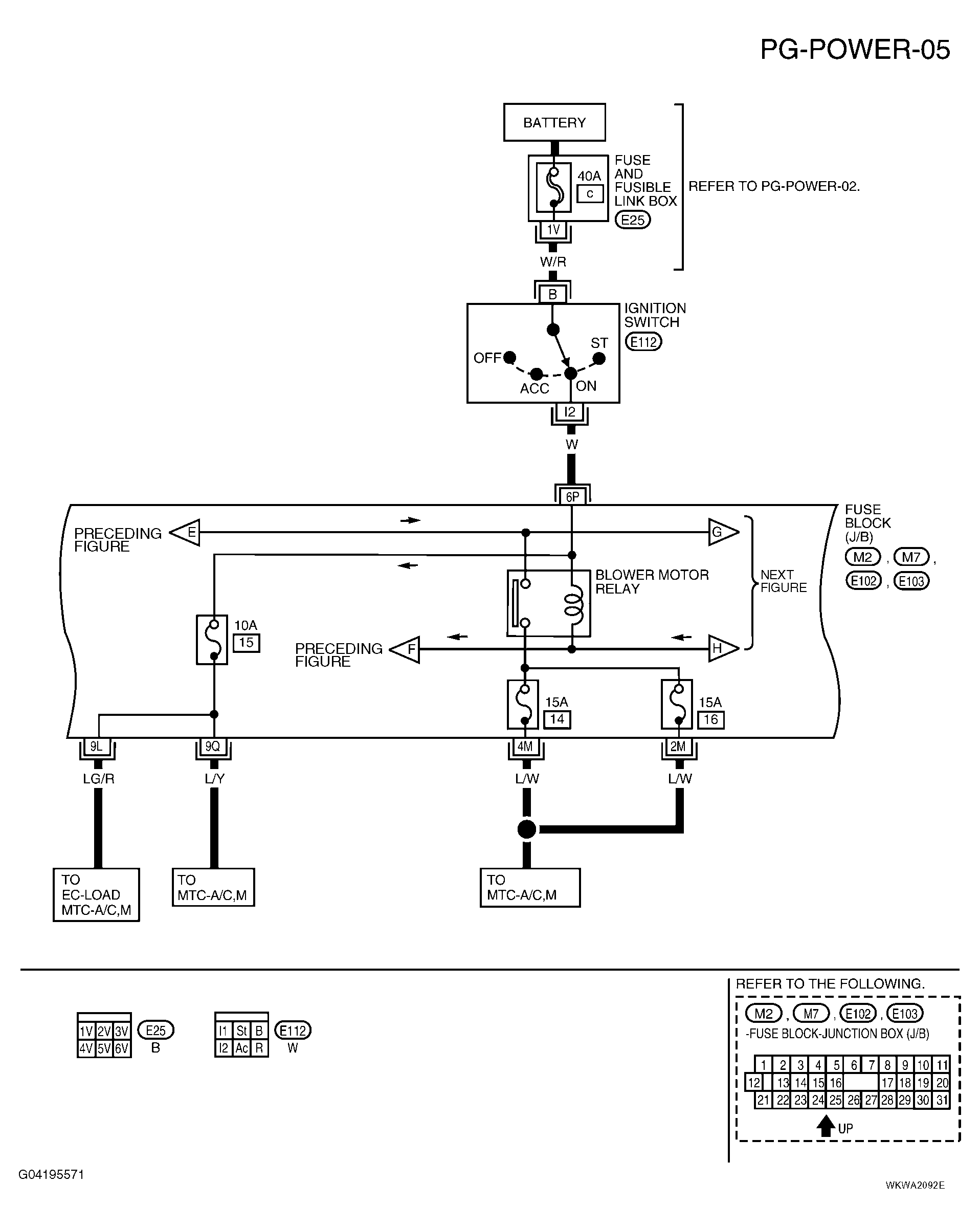

Fig 1: Ignition Power Supply Wiring Diagram (PG-POWER-05)

G04195571

Courtesy of NISSAN MOTOR CO., U.S.A.
