Ignition Power Supply - Ignition SW. In "On" And/Or "Start"

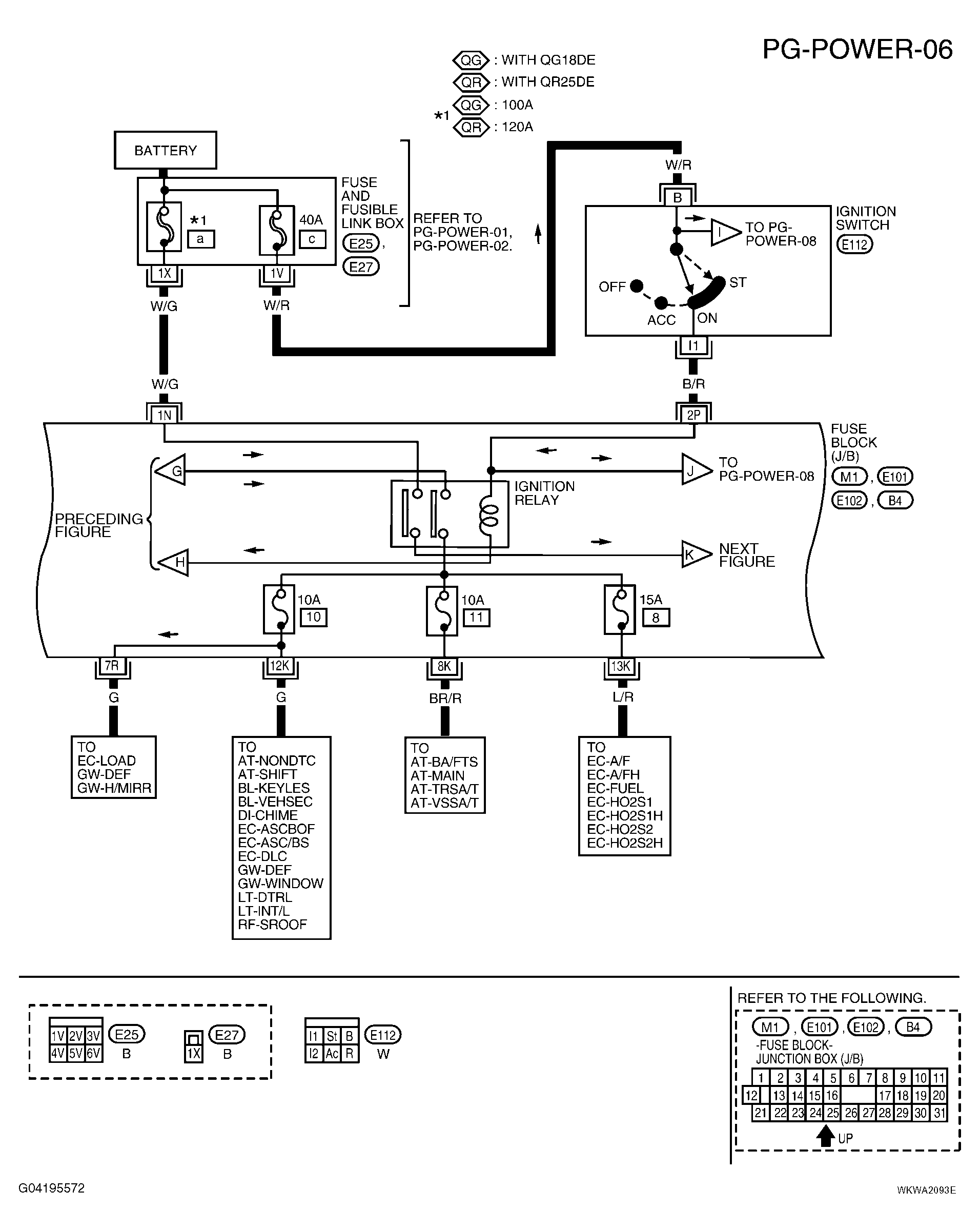

Fig 1: Ignition Power Supply Wiring Diagram (PG-POWER-06)

Courtesy of NISSAN MOTOR CO., U.S.A.

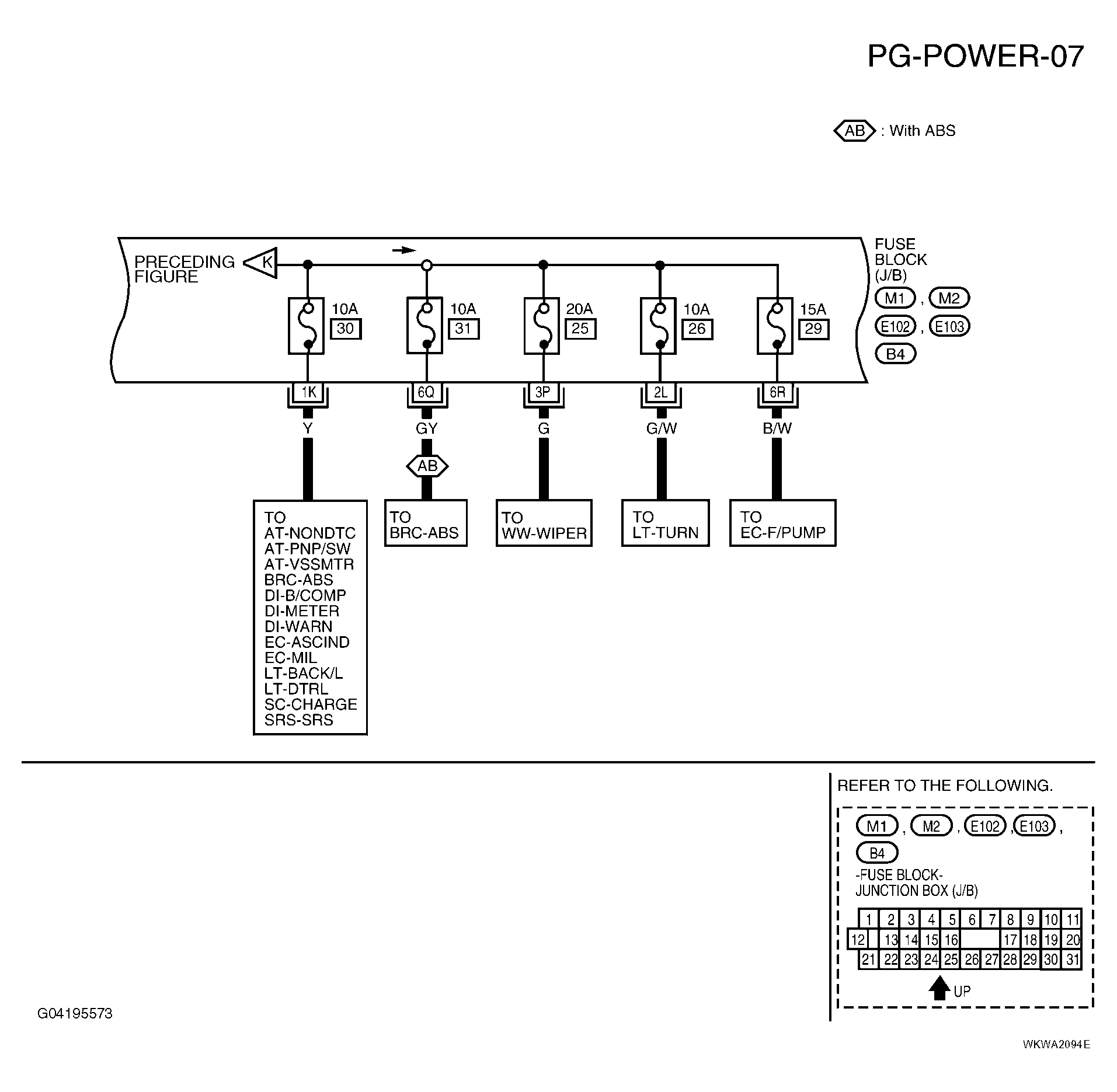

Fig 2: Ignition Power Supply Wiring Diagram (PG-POWER-07)

Courtesy of NISSAN MOTOR CO., U.S.A.

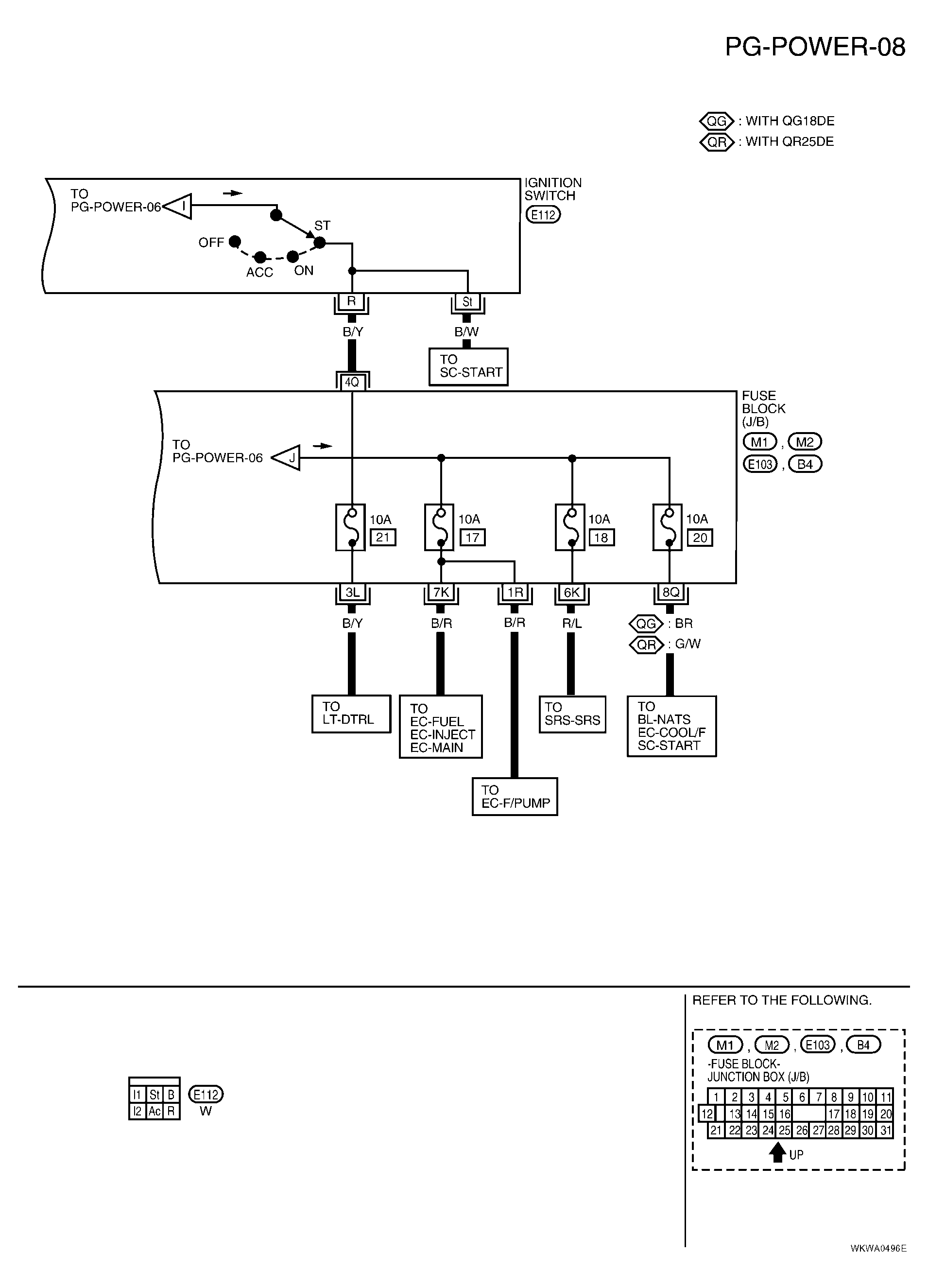

Fig 3: Ignition Power Supply Wiring Diagram (PG-POWER-08)

Courtesy of NISSAN MOTOR CO., U.S.A.
