Battery Power Supply - Ignition SW. In Any Position

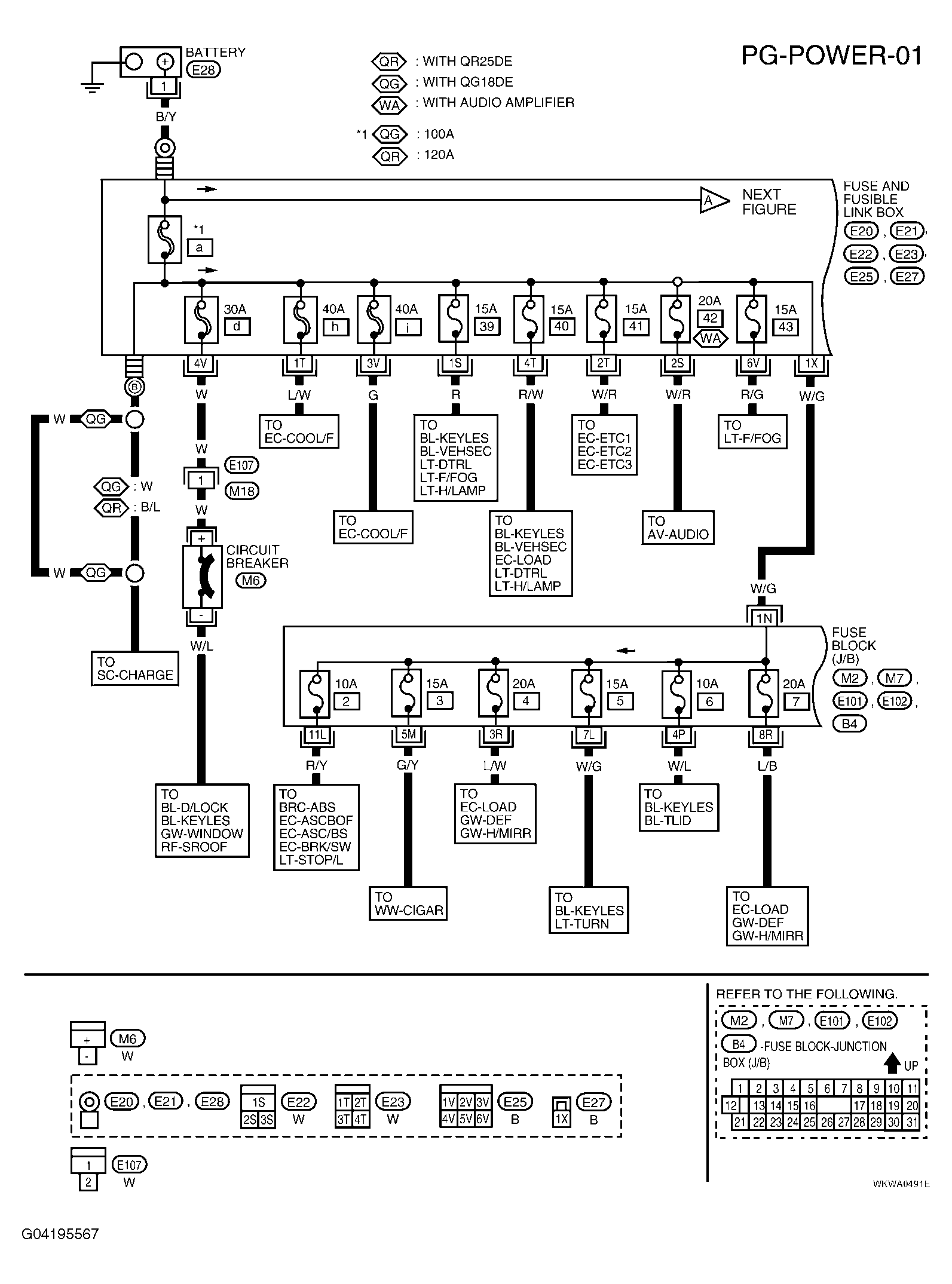

Fig 1: Battery Power Supply Wiring Diagram (PG-POWER-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

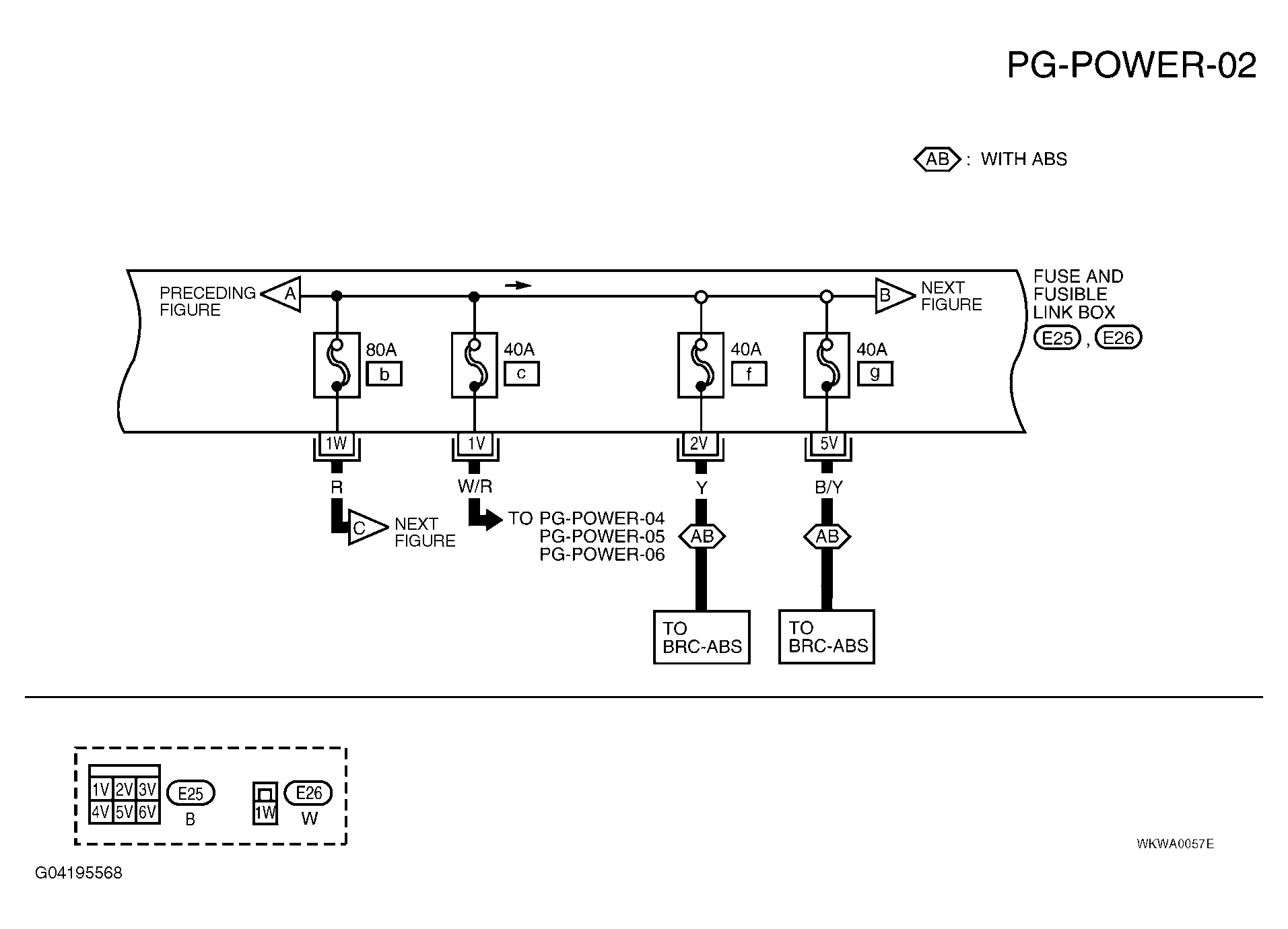

Fig 2: Battery Power Supply Wiring Diagram (PG-POWER-02)

Courtesy of NISSAN MOTOR CO., U.S.A.

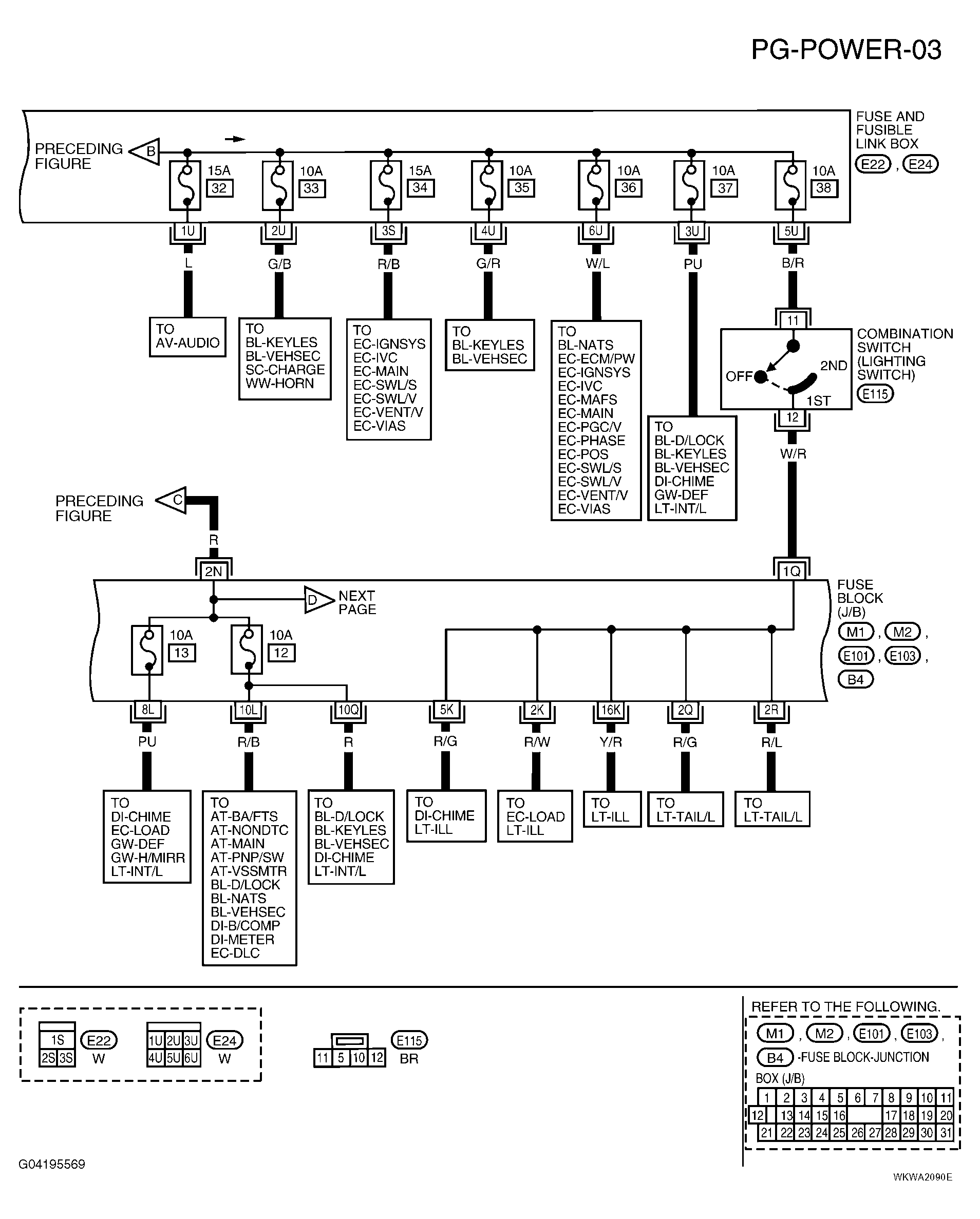

Fig 3: Battery Power Supply Wiring Diagram (PG-POWER-03)

Courtesy of NISSAN MOTOR CO., U.S.A.
