Accessory Power Supply - Ignition SW. In "Acc" Or "On"

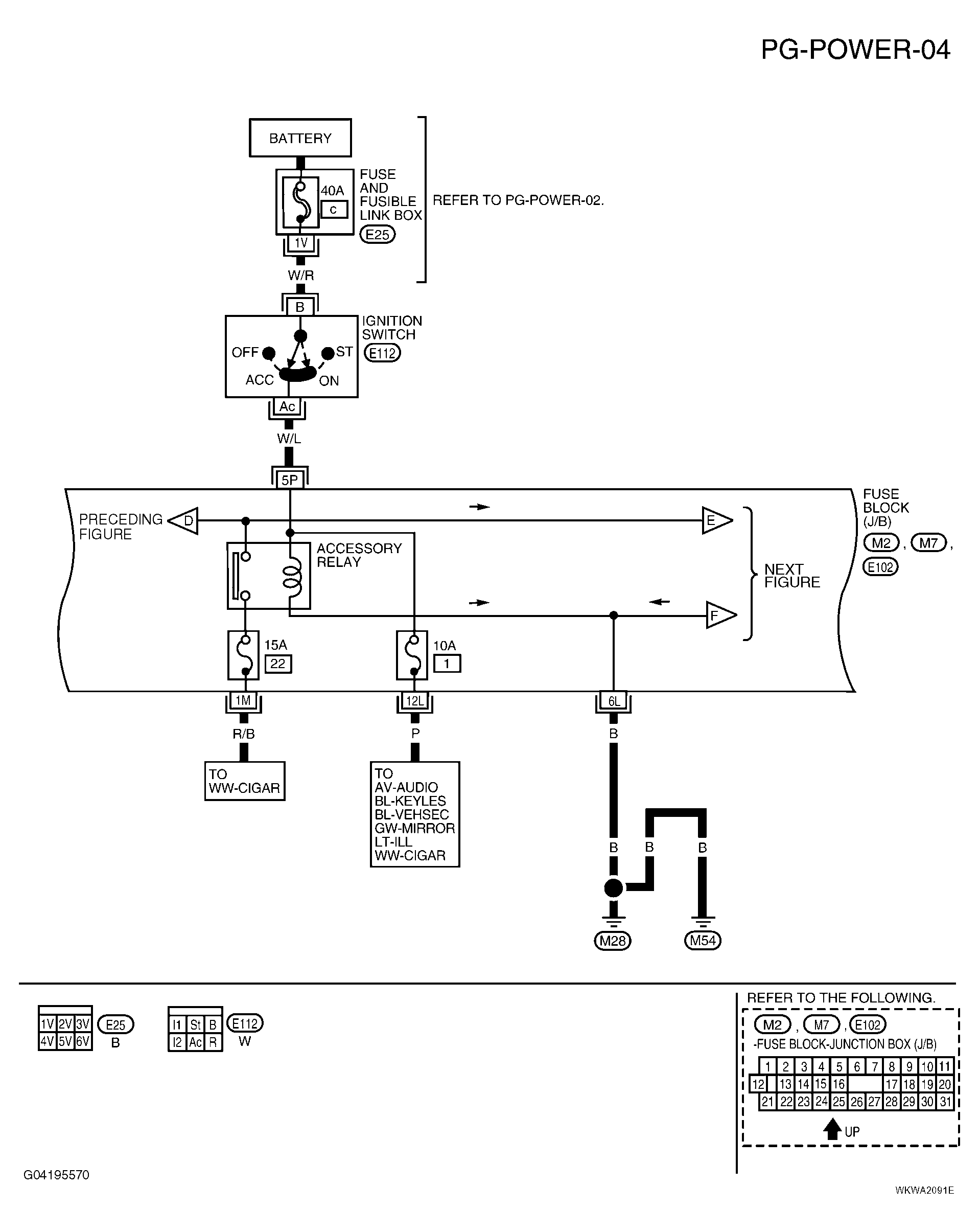

Fig 1: Accessory Power Supply Wiring Diagram (PG-POWER-04)

G04195570

Courtesy of NISSAN MOTOR CO., U.S.A.
