Component Parts and Harness Connector Location

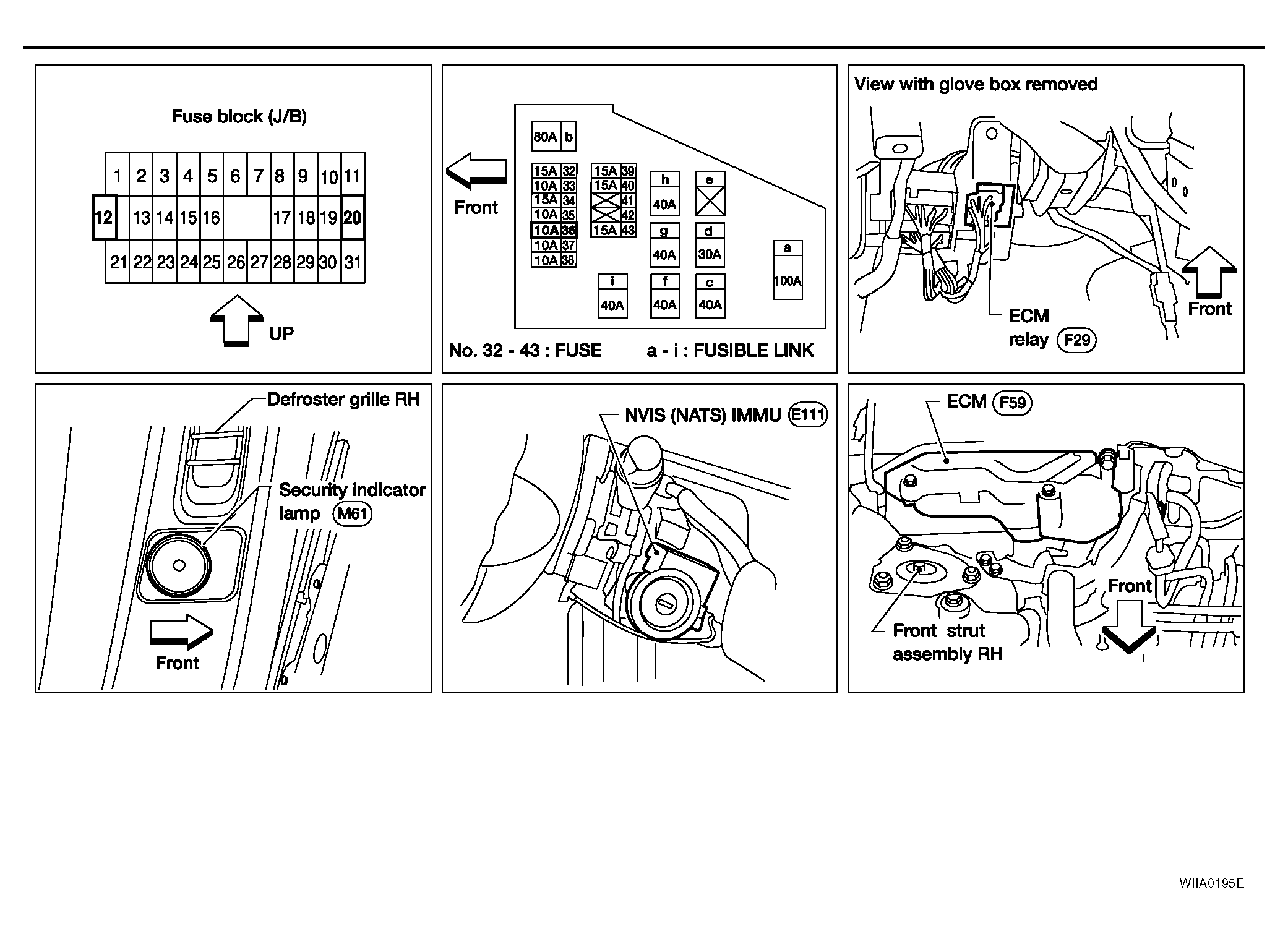

Fig 1: Identifying NVIS (Nissan Vehicle Immobilizer System - NATS) Component Parts And Harness Connector Location
G04195025Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: If the customer reports a "No Start" condition, request ALL KEYS be brought to Dealer in case of NATS malfunction.
