Wiring Diagram - CIGAR -
Wiring Diagram - CIGAR -

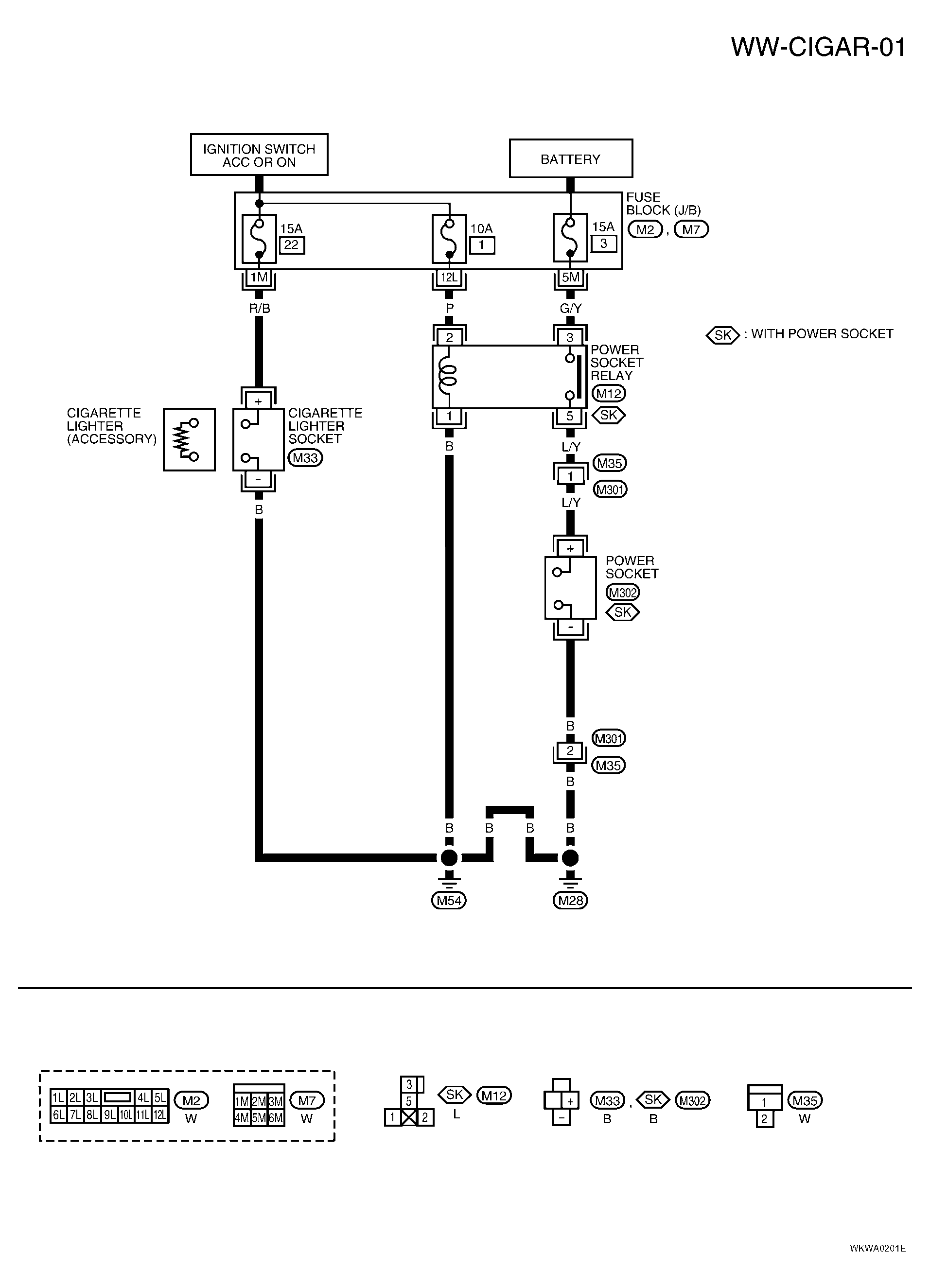

Fig 1: Cigarette Lighter Wiring Diagram WW-CIGAR-01
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
