Wiring Diagram - ILL -

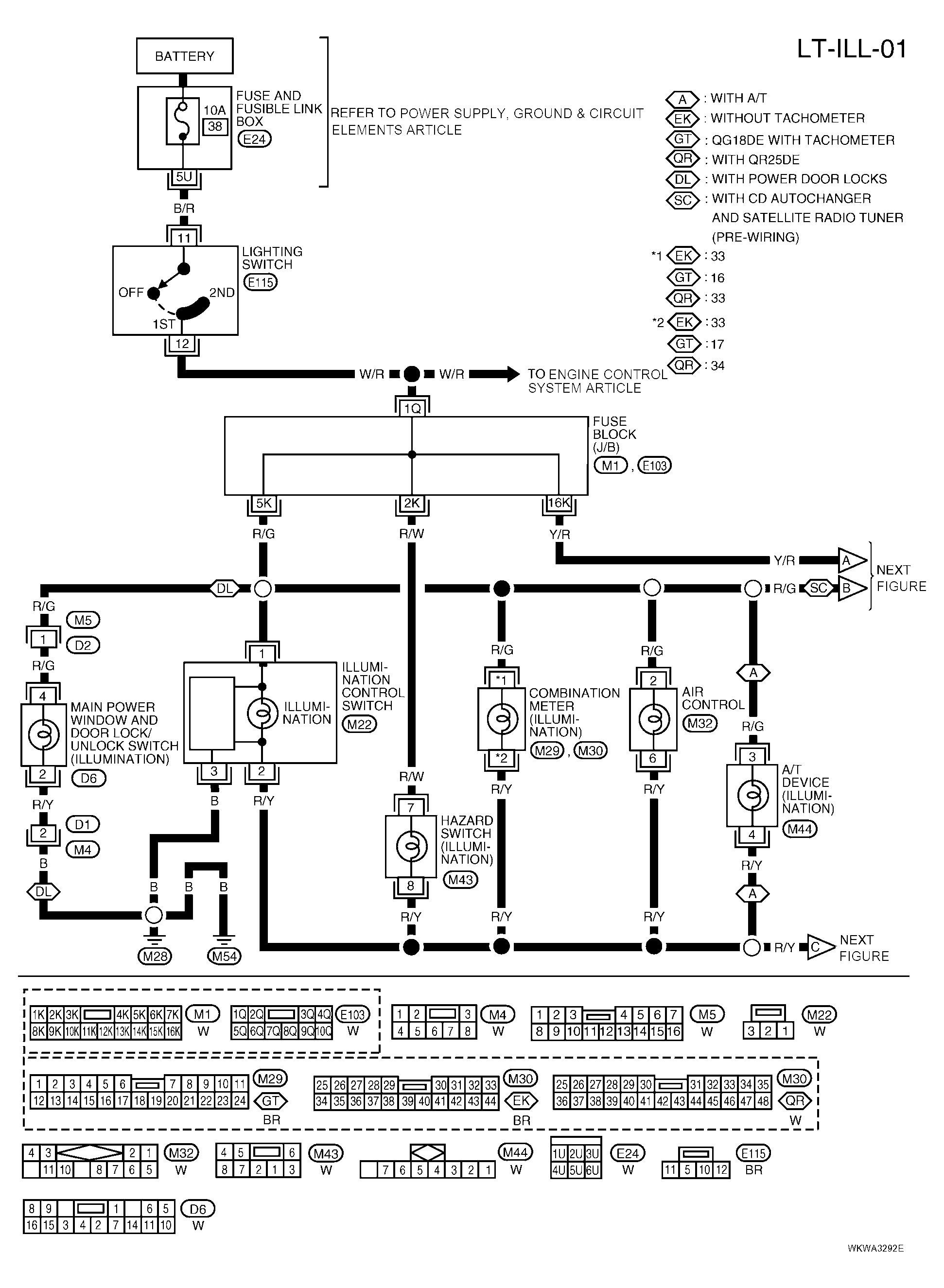

Fig 1: Illumination Wiring Diagram LT-ILL-01

G04195389

Courtesy of NISSAN MOTOR CO., U.S.A.

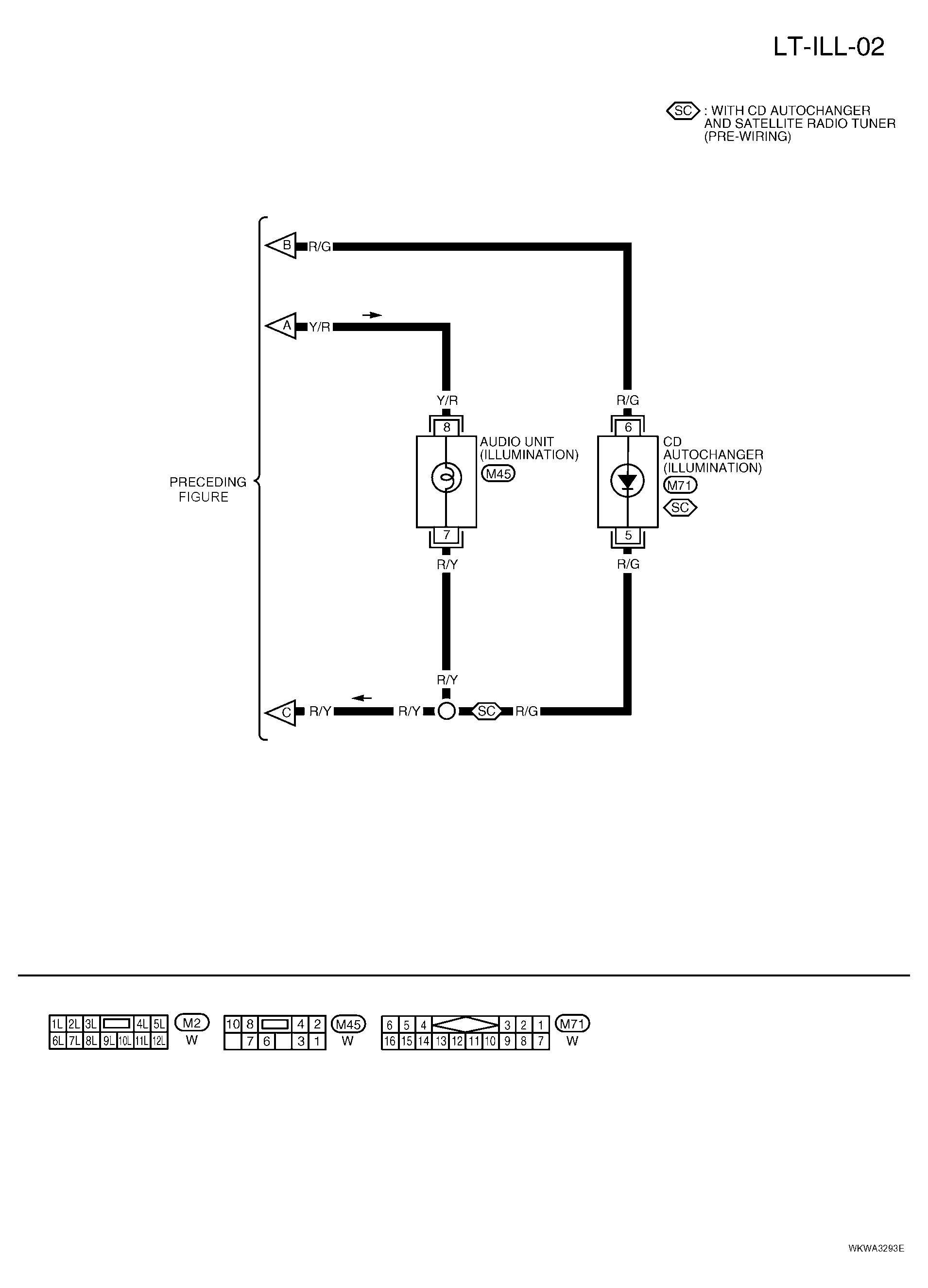

Fig 2: Illumination Wiring Diagram LT-ILL-02

G04195390

Courtesy of NISSAN MOTOR CO., U.S.A.
