Wiring Diagram - H/LAMP -

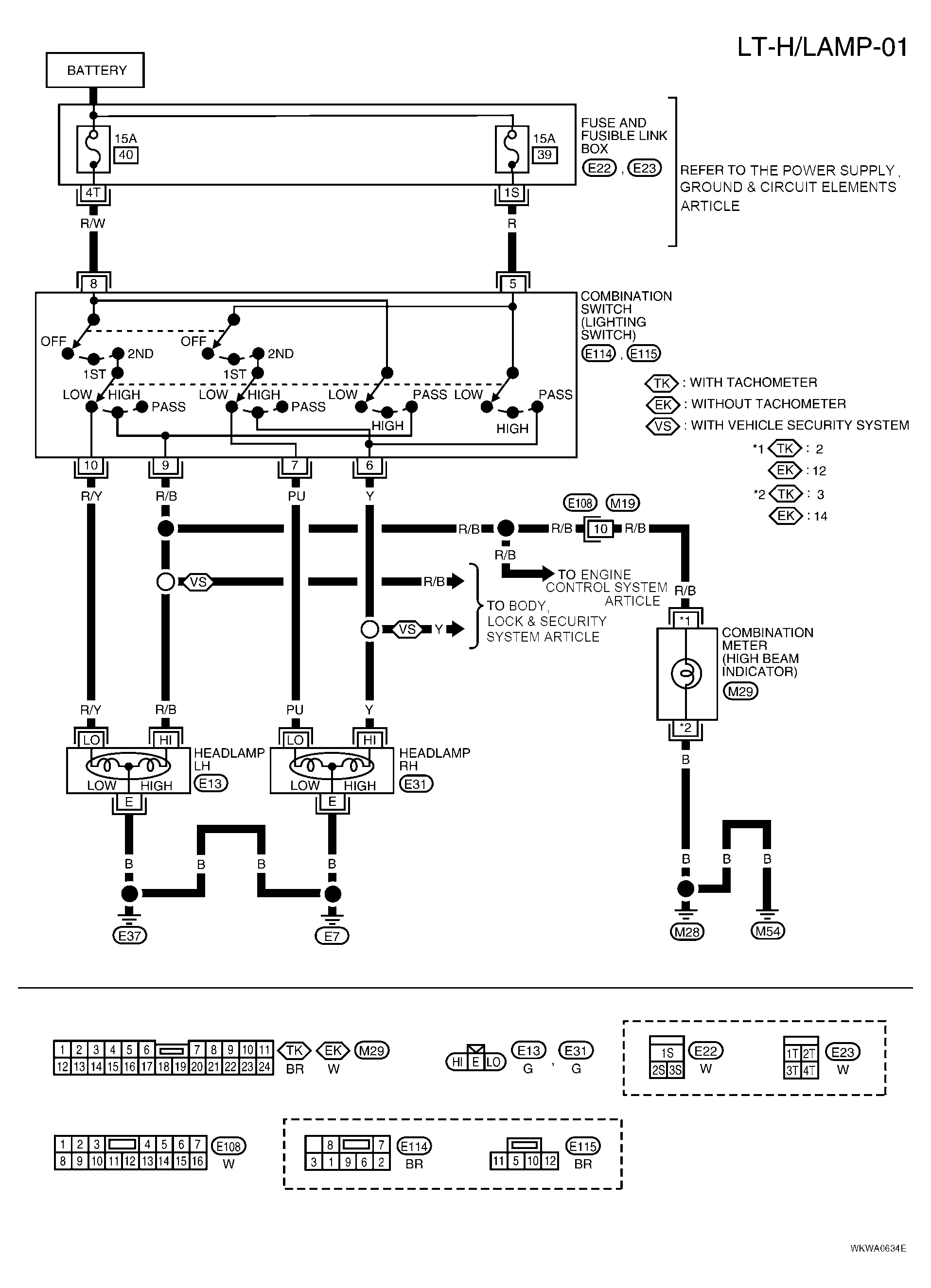

Fig 1: Wiring Diagram LT-H/LAMP-01

G04195352

Courtesy of NISSAN MOTOR CO., U.S.A.
