Wiring Diagram - TURN -

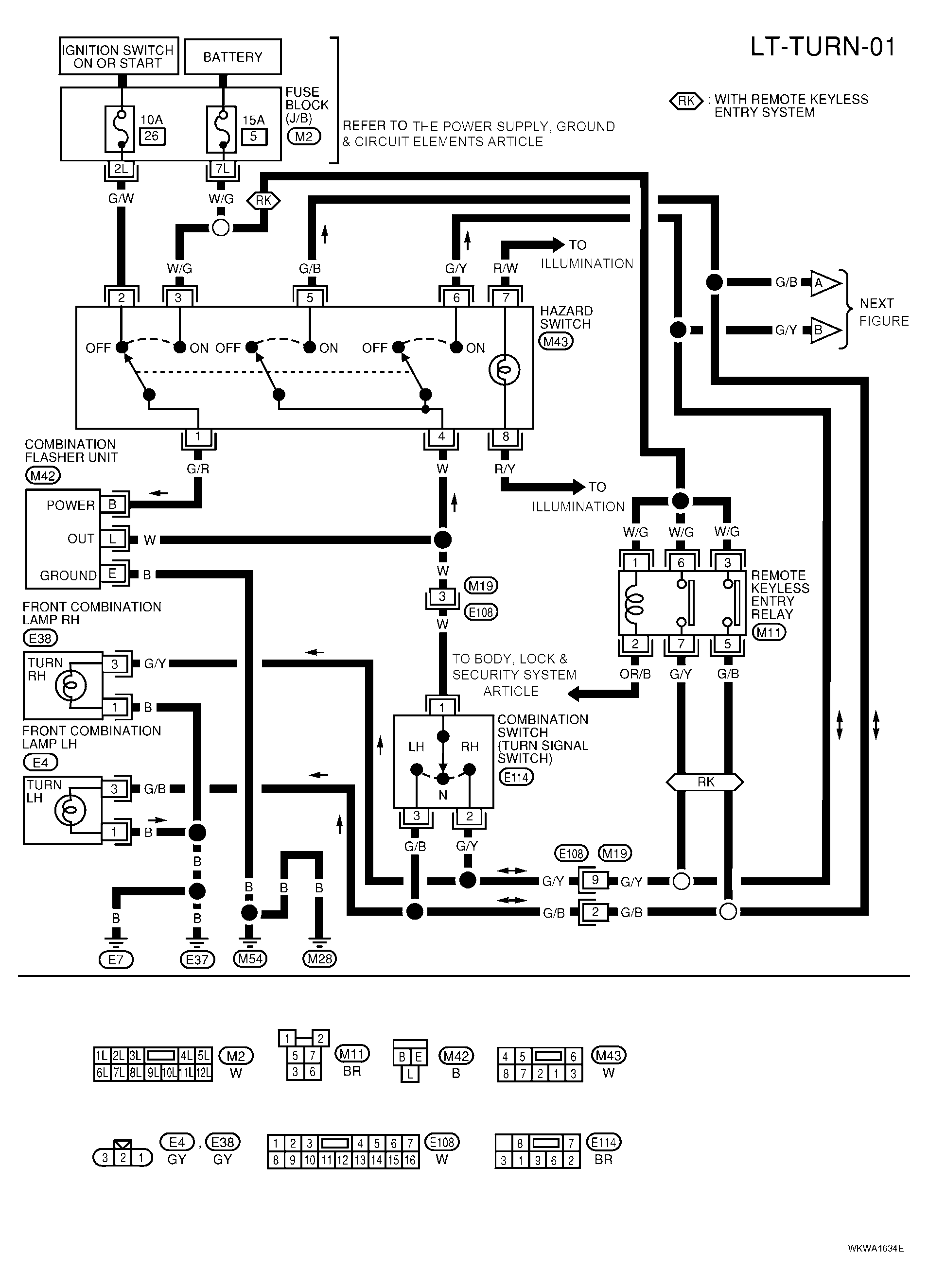

Fig 1: Turn Signal And Hazard Warning Lamps Wiring Diagram LT-TURN-01
G04195386Courtesy of NISSAN MOTOR CO., U.S.A.

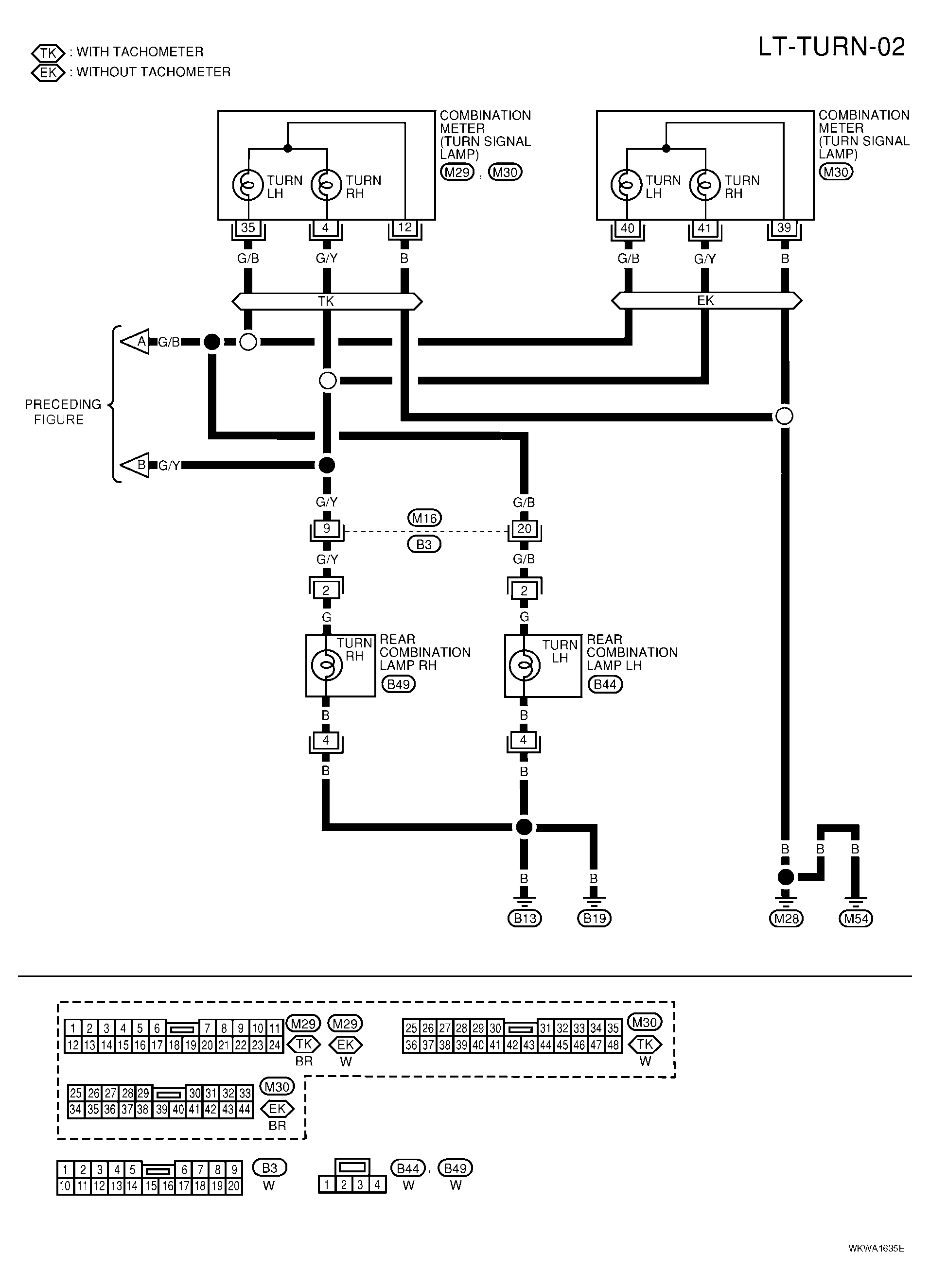

Fig 2: Turn Signal And Hazard Warning Lamps Wiring Diagram LT-TURN-02
G04195387Courtesy of NISSAN MOTOR CO., U.S.A.
