Wiring Diagram - TAIL/L -

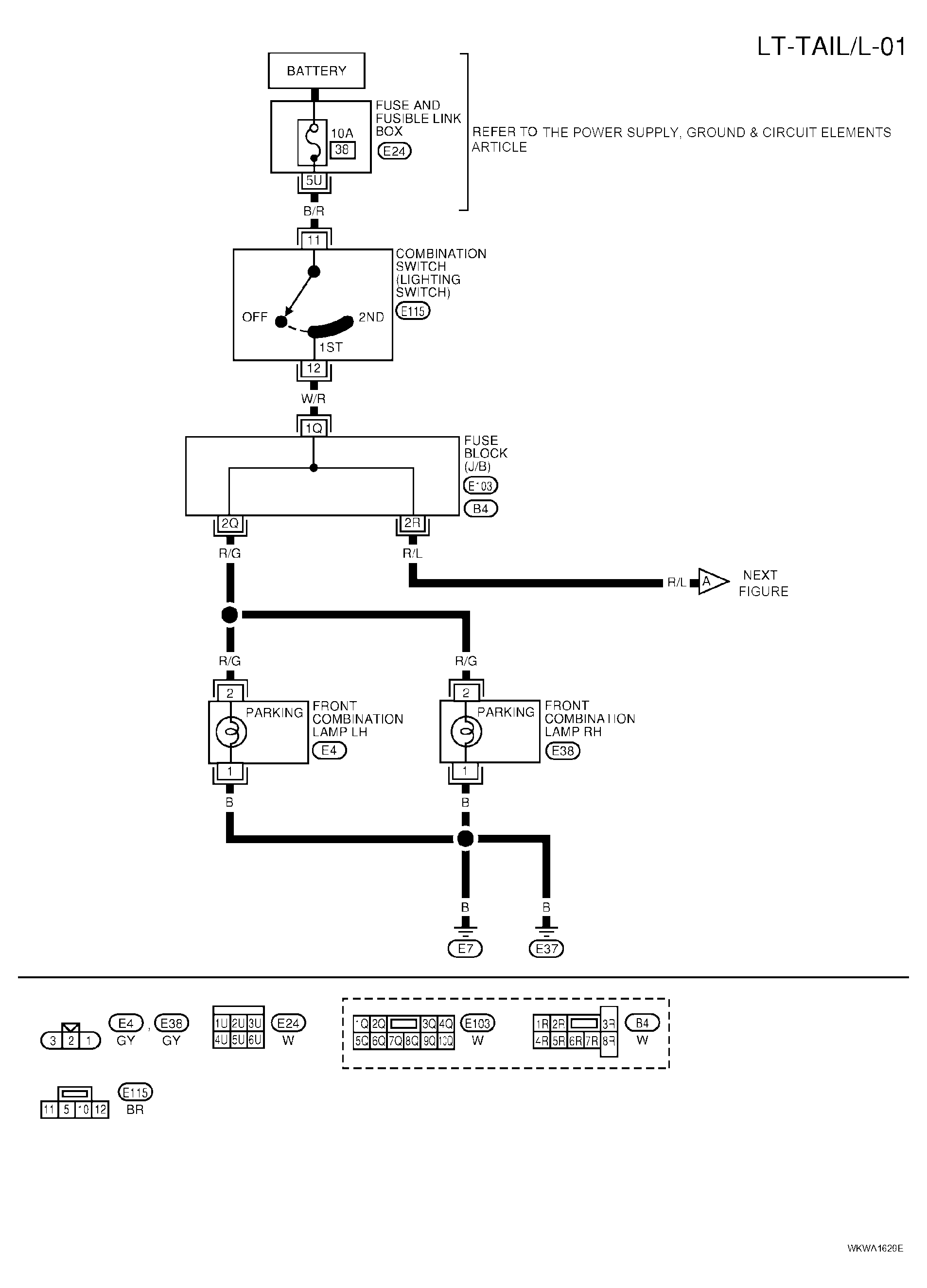

Fig 1: Parking, License And Tail Lamps Wiring Diagram LT-TAIL/L-01
G04195377Courtesy of NISSAN MOTOR CO., U.S.A.

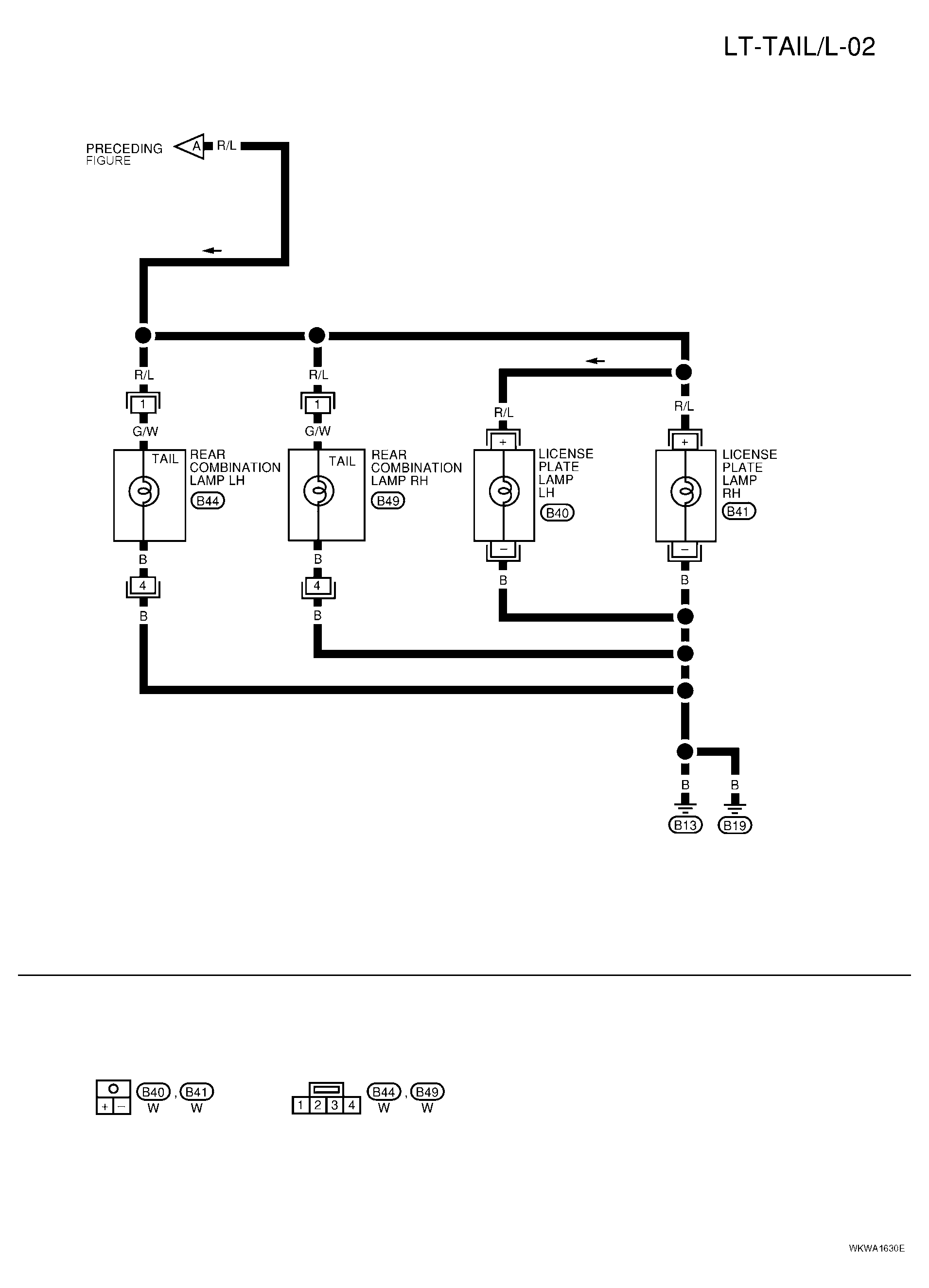

Fig 2: Parking, License And Tail Lamps Wiring Diagram LT-TAIL/L-02
G04195378Courtesy of NISSAN MOTOR CO., U.S.A.
