Wiring Diagram - BACK/L -: Qr25DE

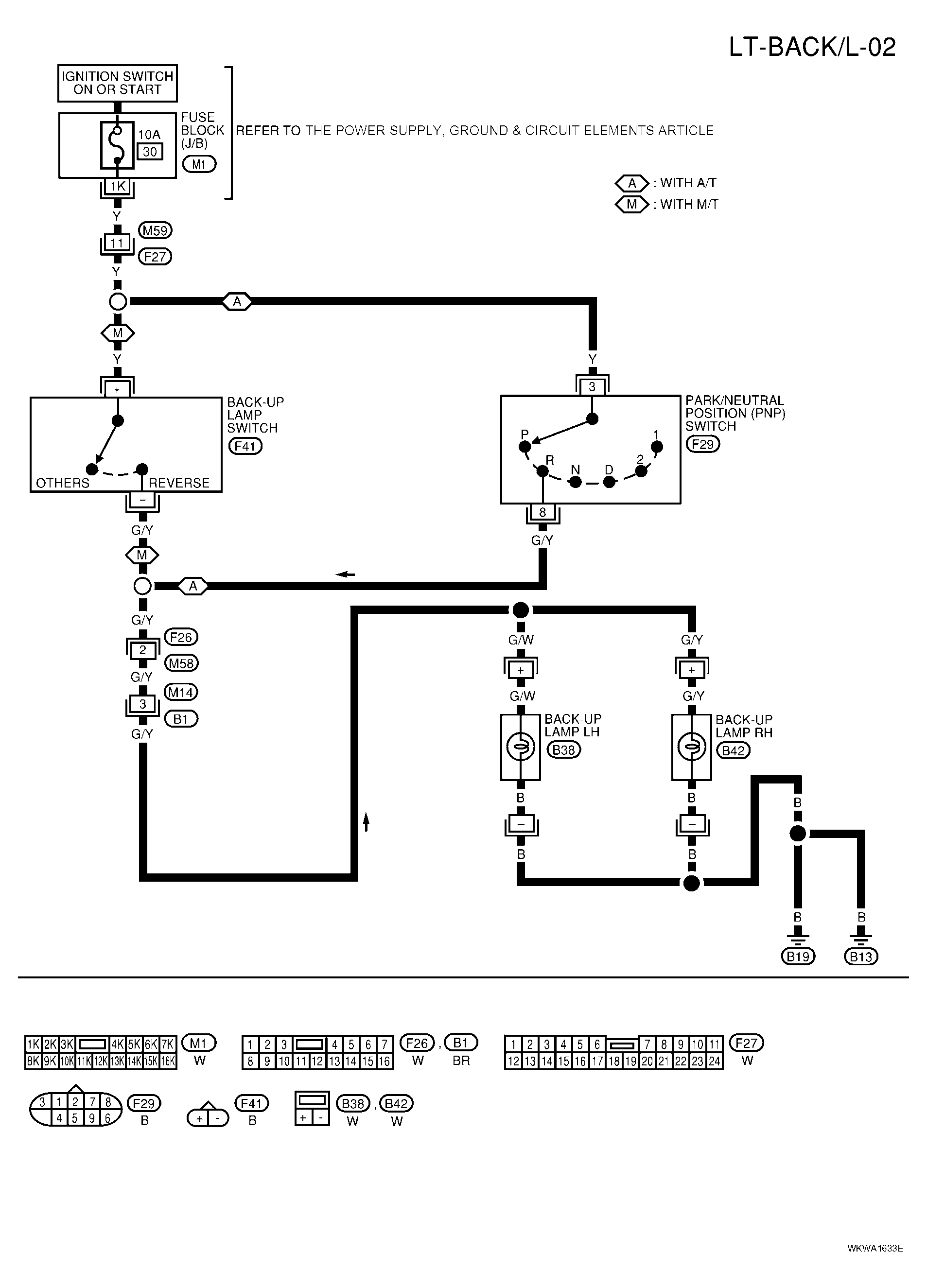

Fig 1: Back-Up Lamp QR25DE Wiring Diagram LT-BACK/L-02

G04195381

Courtesy of NISSAN MOTOR CO., U.S.A.
