Wiring Diagram - WARN -
>>
Without Tachometer
Without Tachometer

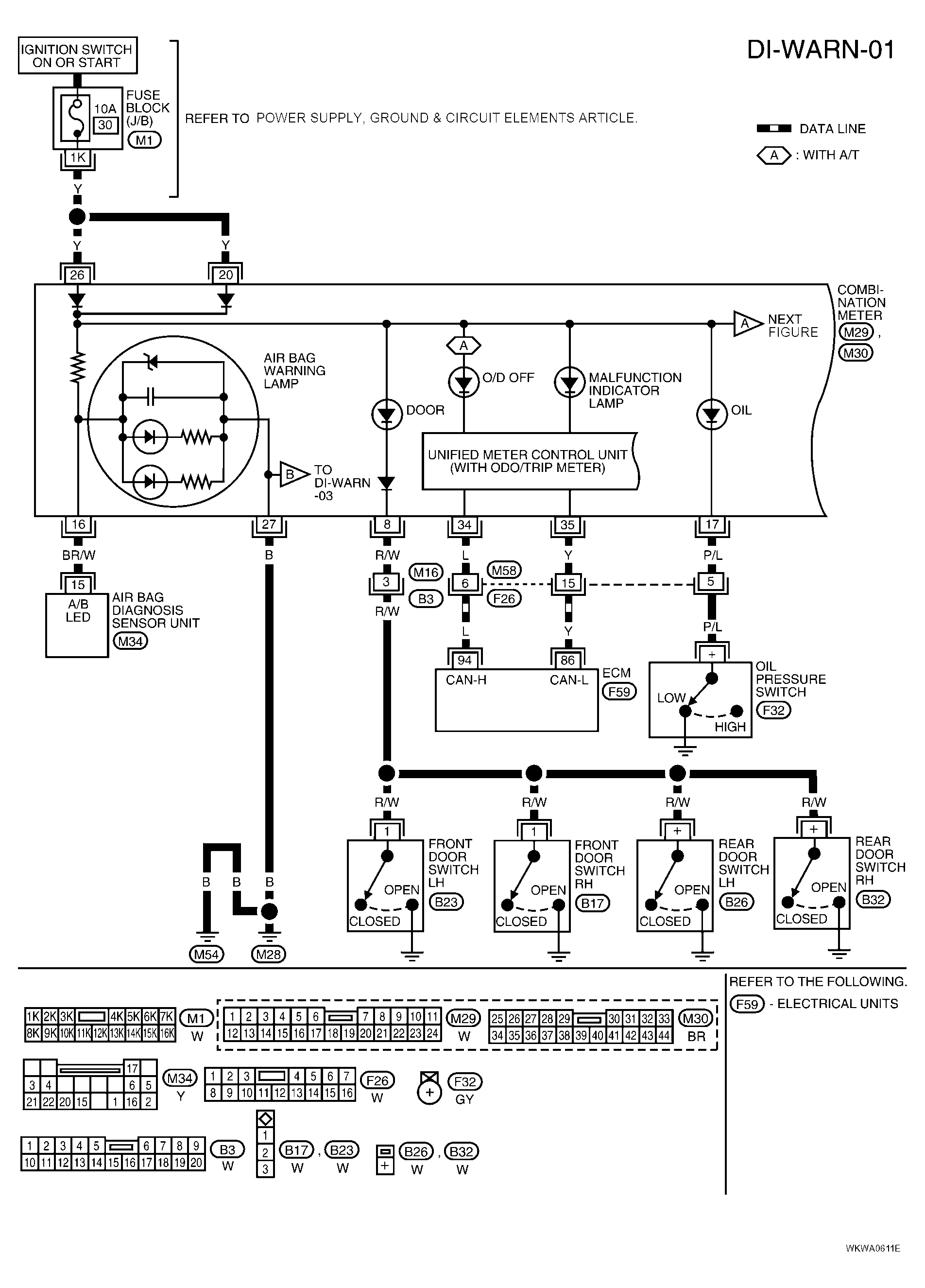

Fig 1: DI-WARN-01 - Wiring Diagram (Without Tachometer)
Courtesy of NISSAN MOTOR CO., U.S.A.

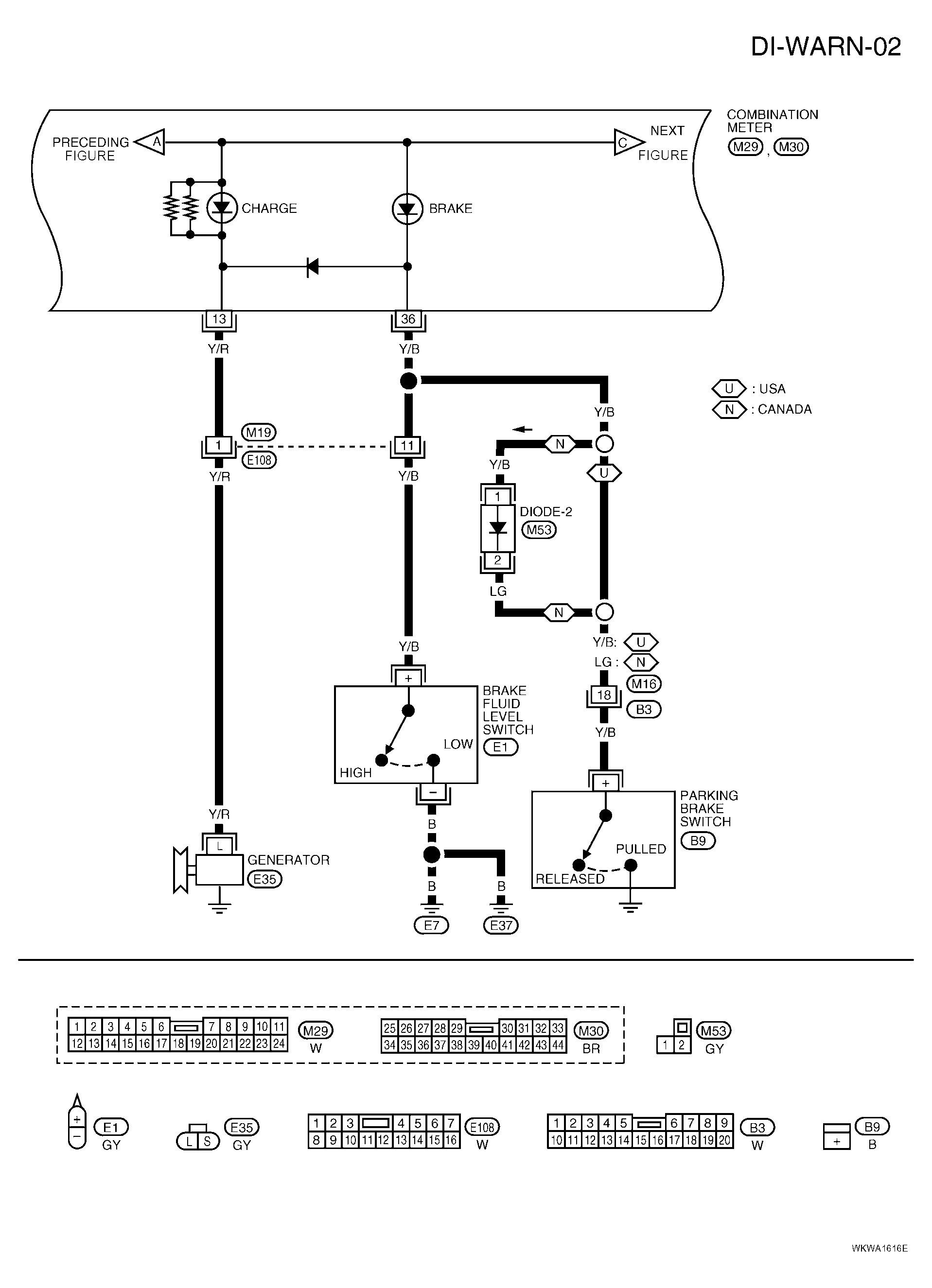

Fig 2: DI-WARN-02 - Wiring Diagram (Without Tachometer)
Courtesy of NISSAN MOTOR CO., U.S.A.

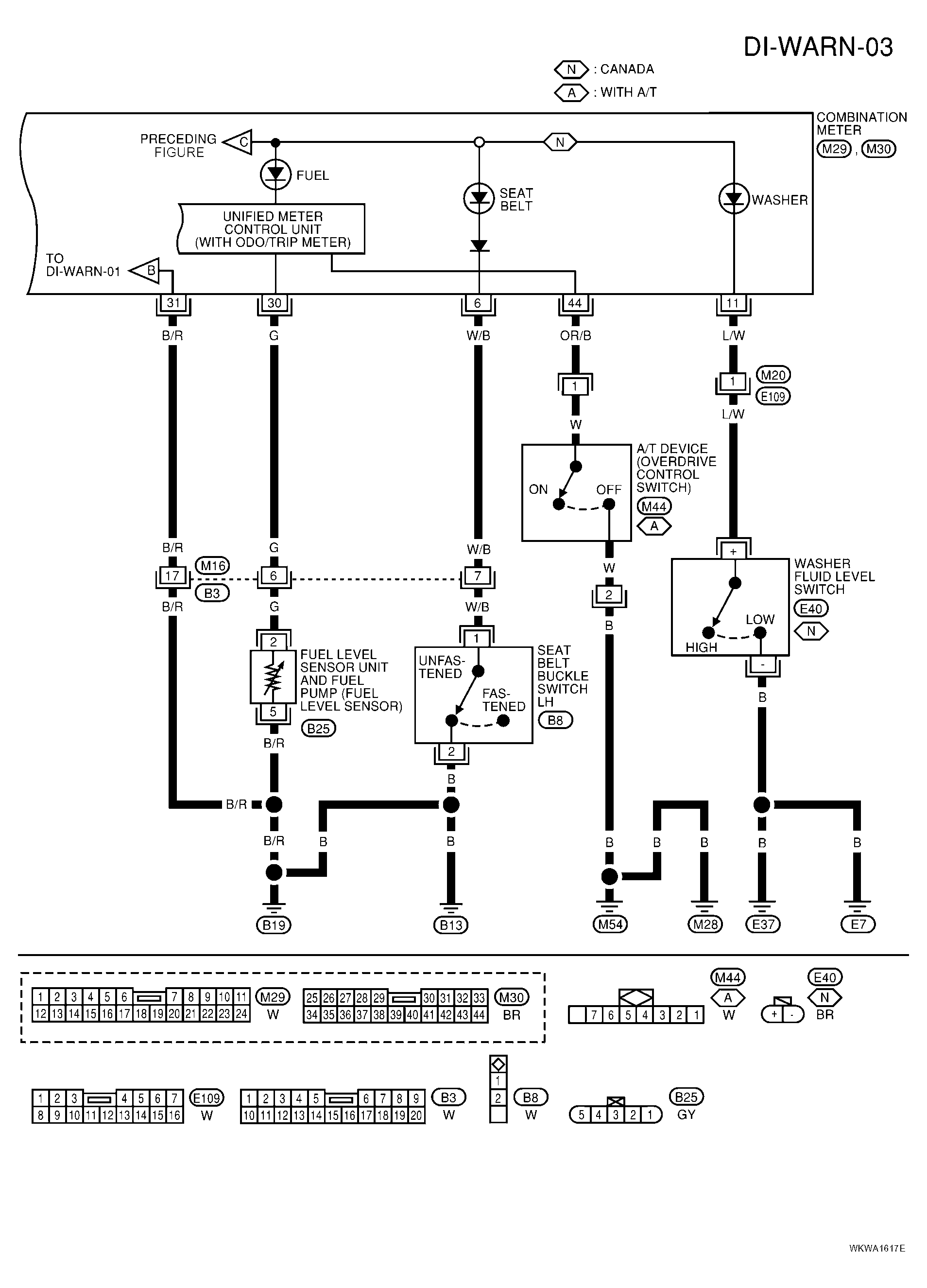

Fig 3: DI-WARN-03 - Wiring Diagram (Without Tachometer)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
