2006
>>
Sentra SE-R
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Driver Information System
>>
Warning Lamps
>>
Wiring Diagram - WARN -
>>
With Tachometer (QG18DE Models)
With Tachometer (QG18DE Models)

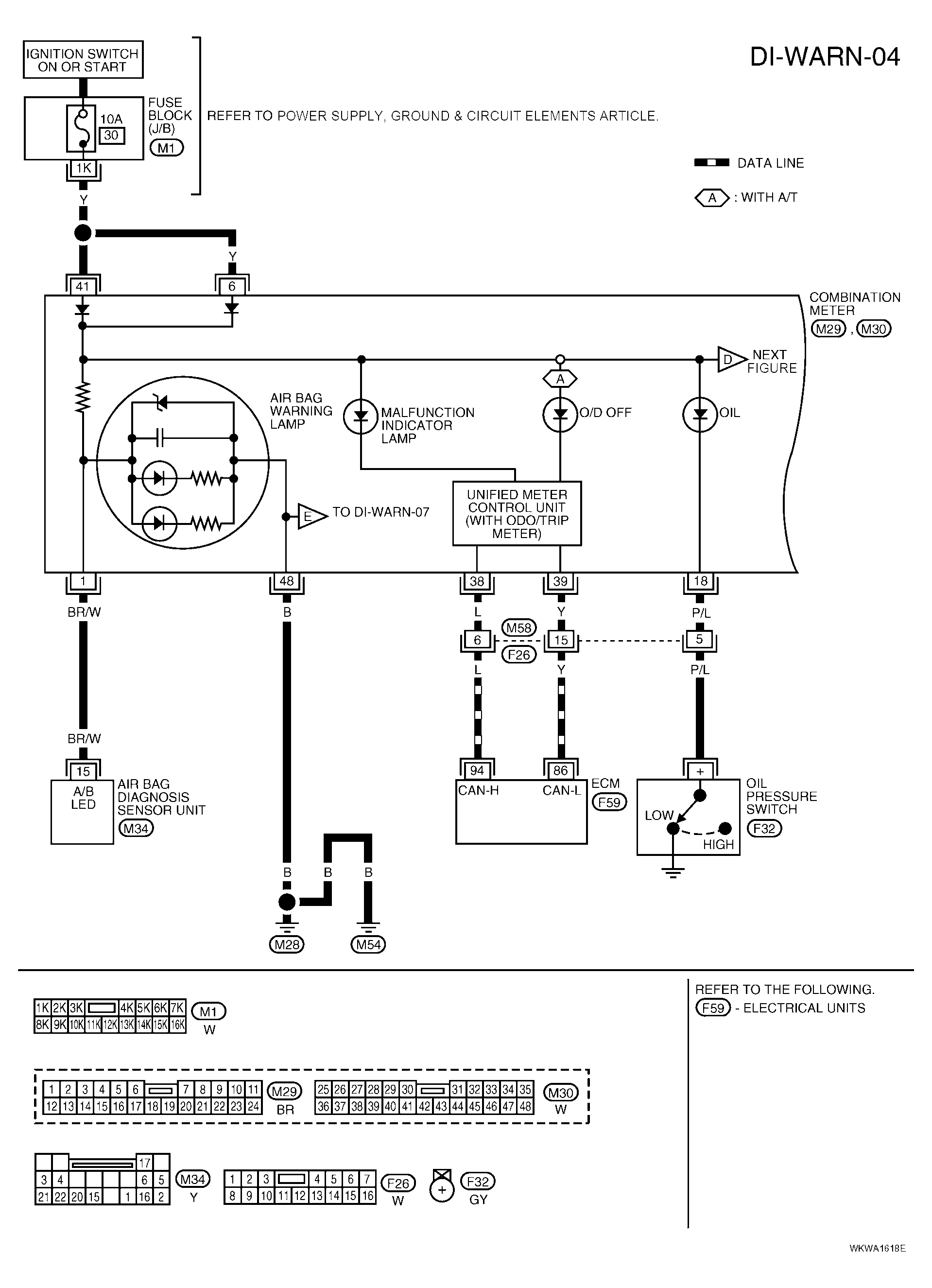

Fig 1: DI-WARN-04 - Wiring Diagram (With Tachometer) (QG18DE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

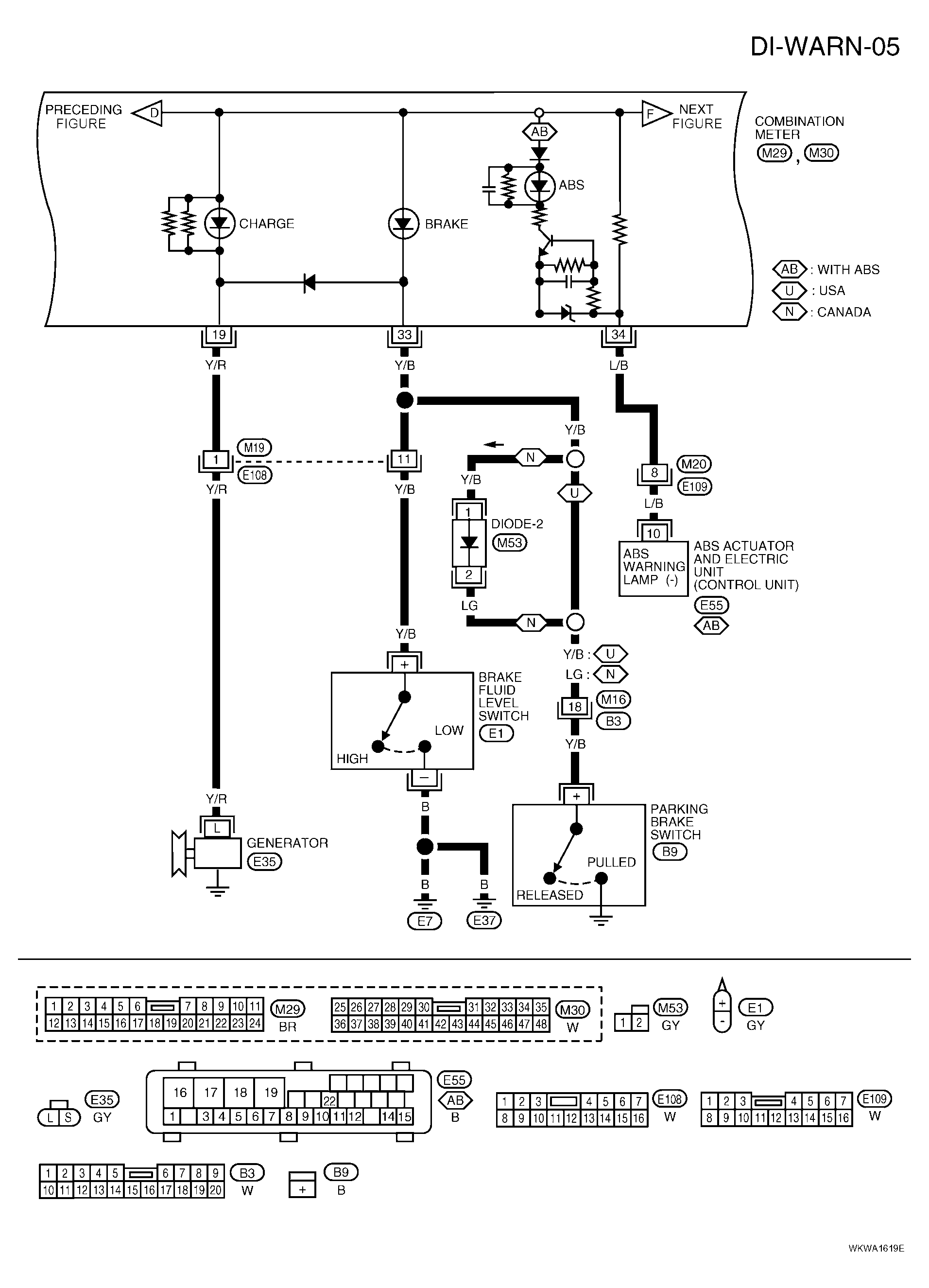

Fig 2: DI-WARN-05 - Wiring Diagram (With Tachometer) (QG18DE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

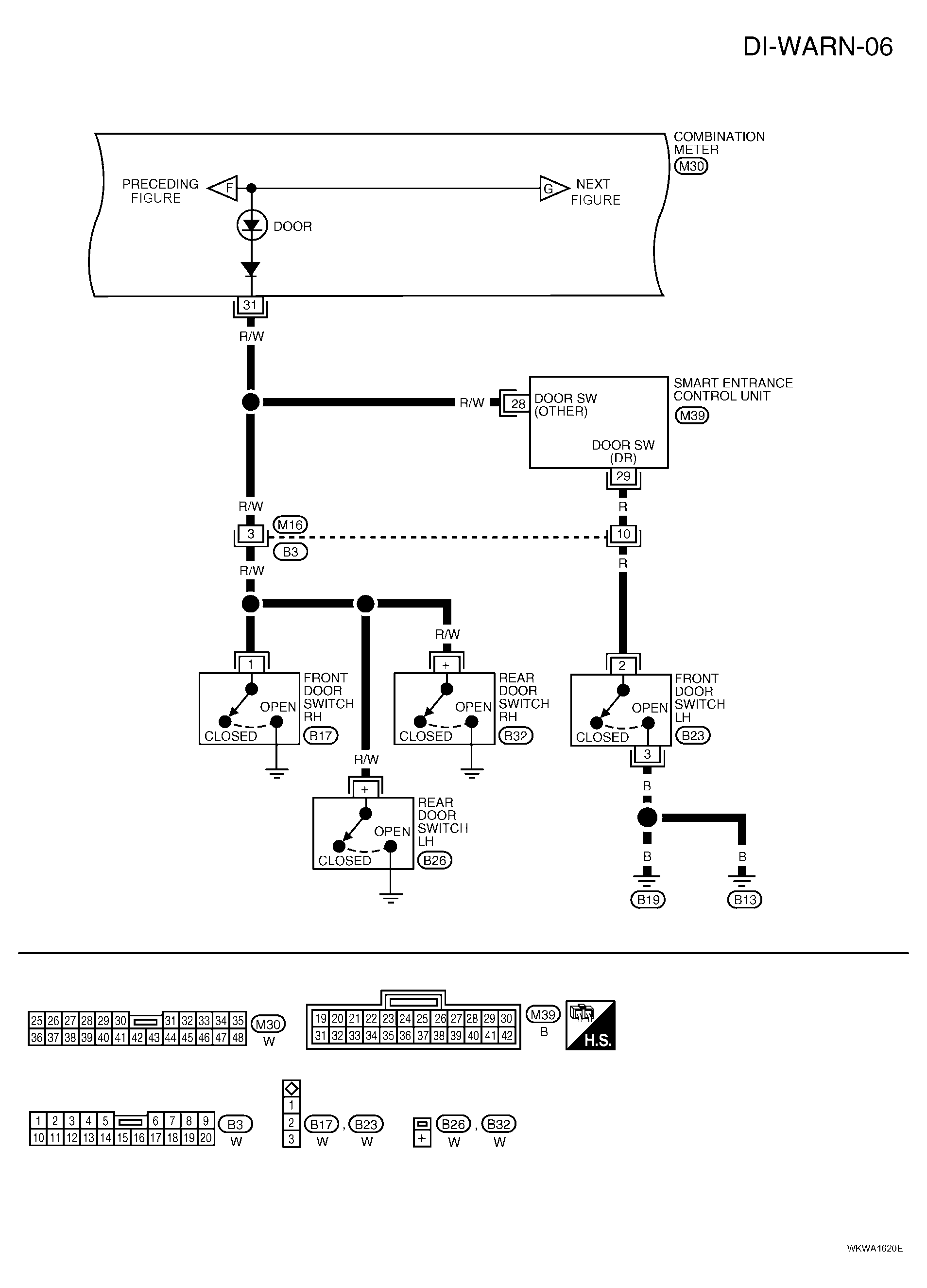

Fig 3: DI-WARN-06 - Wiring Diagram (With Tachometer) (QG18DE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

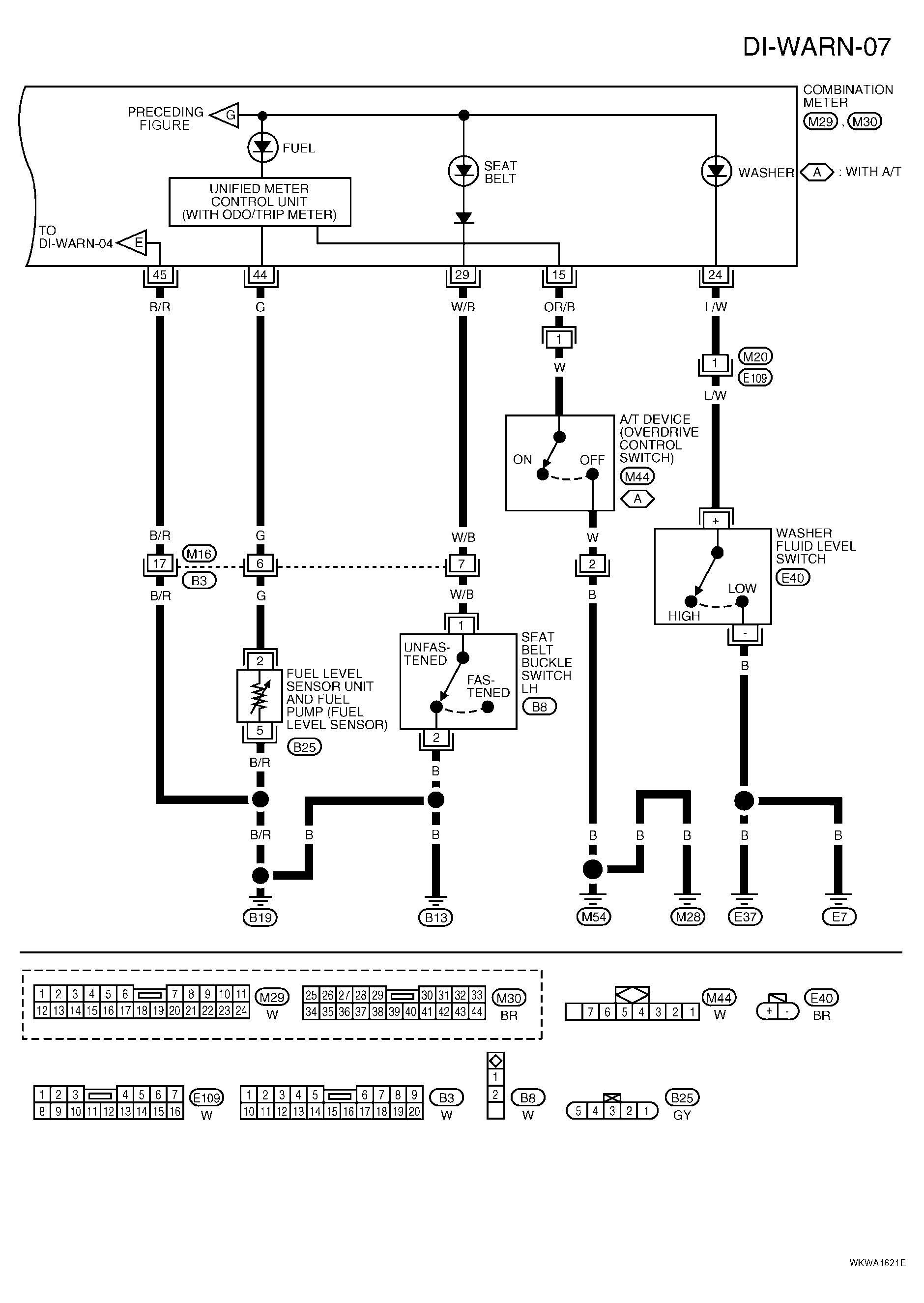

Fig 4: DI-WARN-07 - Wiring Diagram (With Tachometer) (QG18DE Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
