Diagnostic Procedure 4

CHECK IGNITION ON SIGNAL
With CONSULT-II

Check ignition switch ON signal ("IGN ON SW") in "DATA MONITOR" mode with CONSULT-II.

Fig 1: CONSULT-II Display - DATA MONITOR
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between smart entrance control unit terminal 33 and ground.

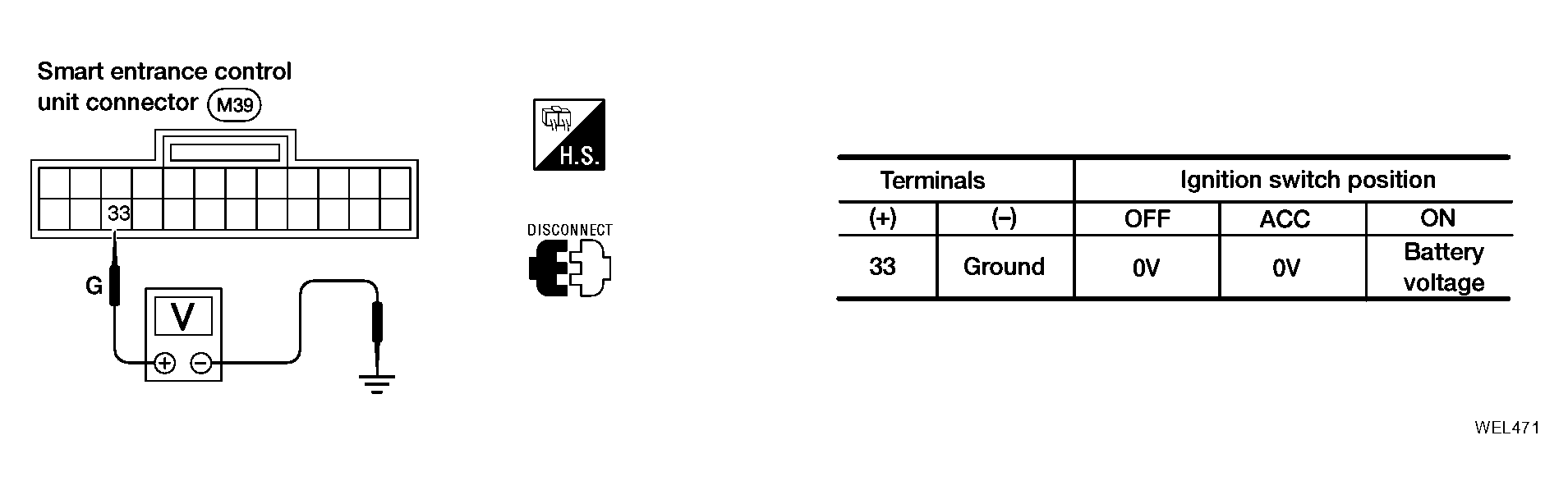

Fig 2: Checking Voltage Between Smart Entrance Control Unit Terminal 33 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 2.

NG: Check the following.
- 10A fuse [No. 10, located in fuse block (J/B)]
- Harness for open or short between smart entrance control unit and fuse
CHECK FRONT DOOR SWITCH LH INPUT SIGNAL
With CONSULT-II

Check front door switch LH signal ("DOOR SW-DR") in "DATA MONITOR" mode with CONSULT-II.

Fig 3: CONSULT-II Display - DATA MONITOR
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between smart entrance control unit terminal 29 and ground.

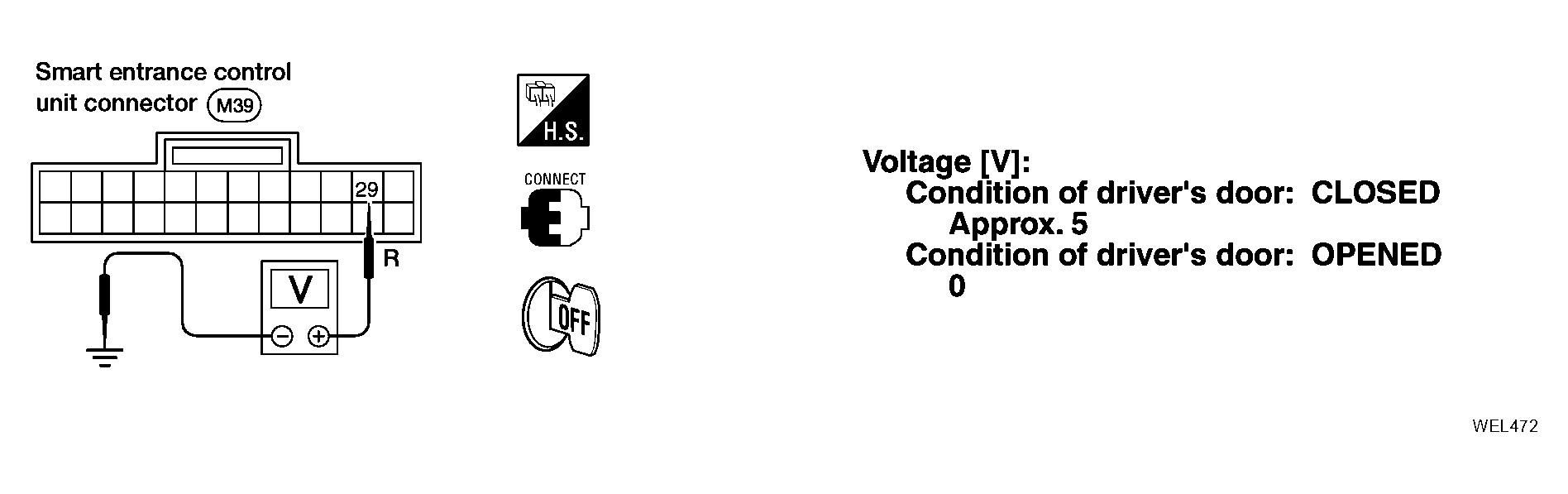

Fig 4: Checking Voltage Between Smart Entrance Control Unit Terminal 29 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 4.

NG: GO TO 3.
CHECK FRONT DOOR SWITCH LH
Check continuity between terminals 2 and 3.

Fig 5: Checking Continuity Between Terminals 2 And 3
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Check the following.
- Front door switch LH ground circuit and condition
- Harness for open between smart entrance control unit and front door switch LH
NG: Replace front door switch LH.
CHECK WARNING CHIME
With CONSULT-II

Perform "CHIME" in "ACTIVE TEST" mode with CONSULT-II.

Fig 6: CONSULT-II Display - ACTIVE TEST
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: System is OK.

NG: Replace smart entrance control unit.
