Preliminary Check

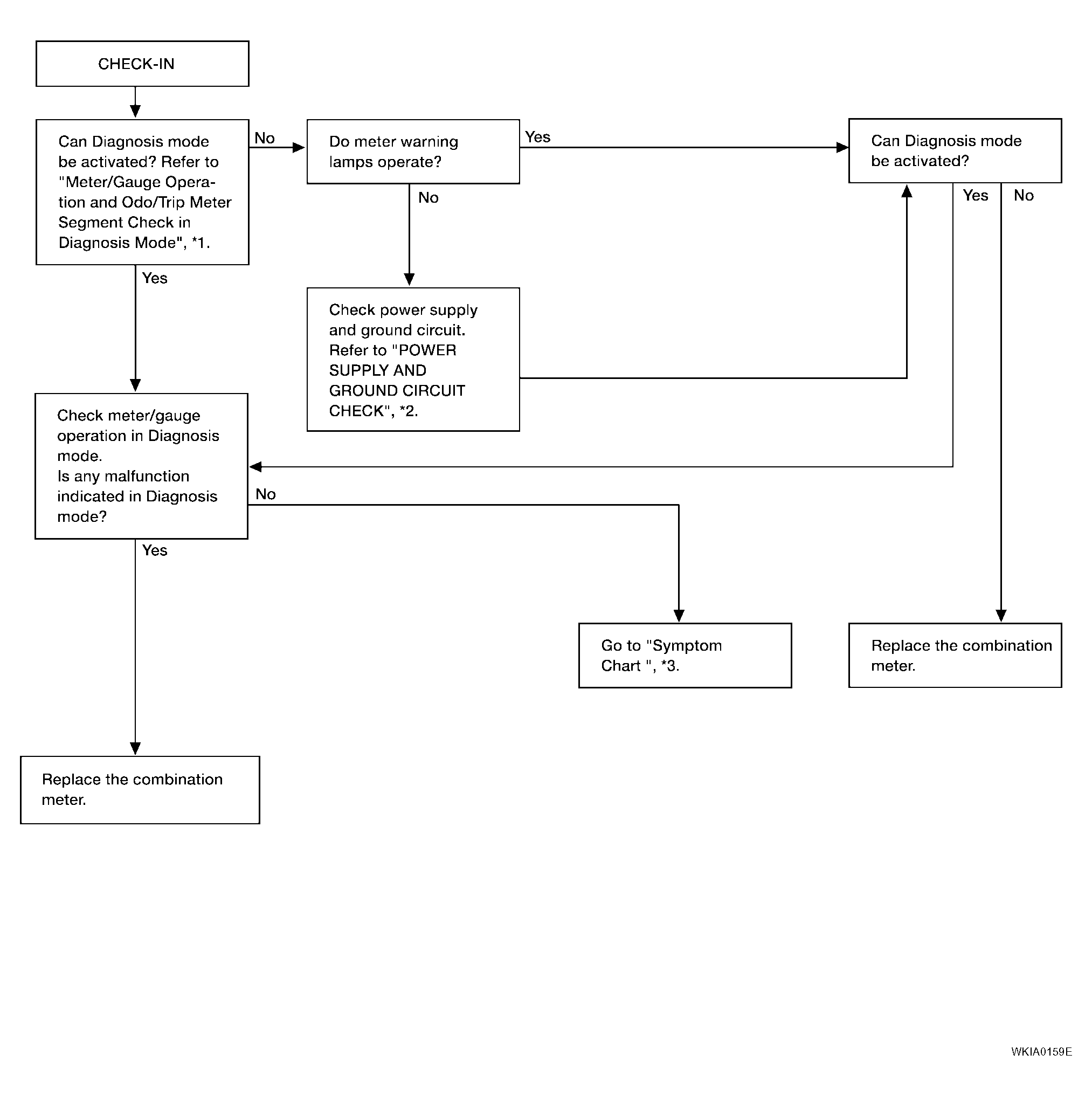

Fig 1: Trouble Diagnoses Diagram
G04195427Courtesy of NISSAN MOTOR CO., U.S.A.
*1. Meter/Gauge Operation and Odo/Trip Meter Segment Check in Diagnosis Mode
*2. POWER SUPPLY AND GROUND CIRCUIT CHECK
*3. SYMPTOM CHART
