Removal and Installation: Removal

CAUTION:

Do not attempt to repair or replace damaged direct-connect front passenger air bag module connectors. If a direct-connect harness connector is damaged, the harness must be replaced.
Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait for at least 3 minutes.
Always work from the side of or under air bag module.

Remove glove box assembly. Refer to "INSTRUMENT PANEL ASSEMBLY " for details.
Disconnect front passenger air bag module connector from air bag harness connector.
Remove the nuts and hex bolts from front passenger air bag module.
Remove the front passenger air bag module from the instrument panel.

Fig 1: Identifying Front Passenger Air Bag Module
Courtesy of NISSAN MOTOR CO., U.S.A.

The front passenger air bag module is heavy and should be supported using both hands during removal.

Fig 2: Identifying Front Passenger Air Bag Module With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Always place front passenger air bag module with pad side facing upward.
Do not attempt to disassemble air bag module.
The special bolts are coated with bonding agent. Do not use old bolts after removal; replace with new coated bolts.
Do not insert any foreign objects (screwdriver, etc.) into air bag module connector.

Fig 3: Placing Front Passenger Air Bag Module With Pad Side Facing Upward
Courtesy of NISSAN MOTOR CO., U.S.A.
Replace air bag module if it has been dropped or sustained an impact.
Do not expose the air bag module to temperatures exceeding 90°C (194°F).
Do not allow oil, grease or water to come in contact with the front passenger air bag module.
After air bag inflates, the front instrument panel assembly should be replaced if damaged.

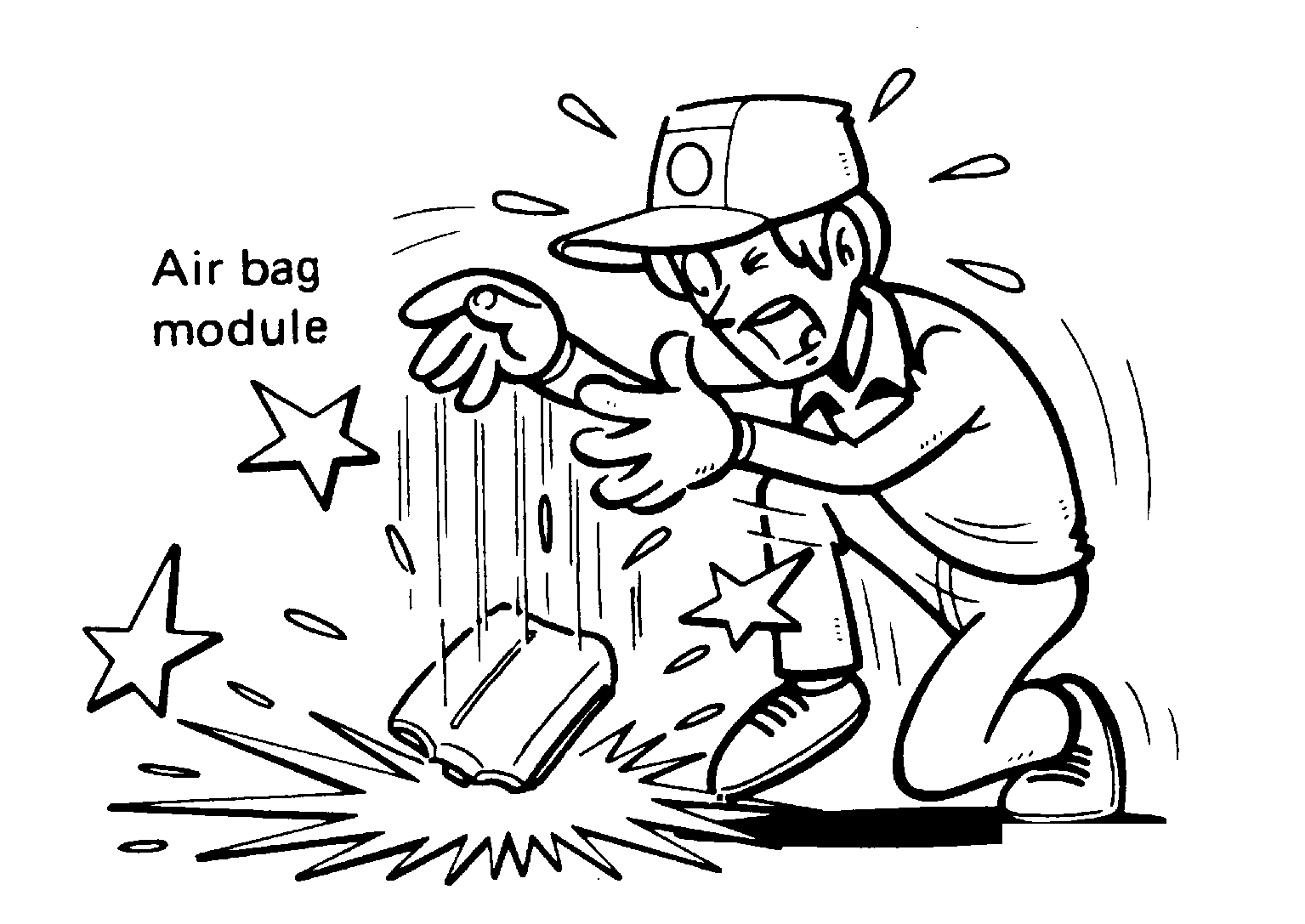

Fig 4: Precaution For Handling Air Bag Module
Courtesy of NISSAN MOTOR CO., U.S.A.
