Wiring Diagram - AT - MAIN

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

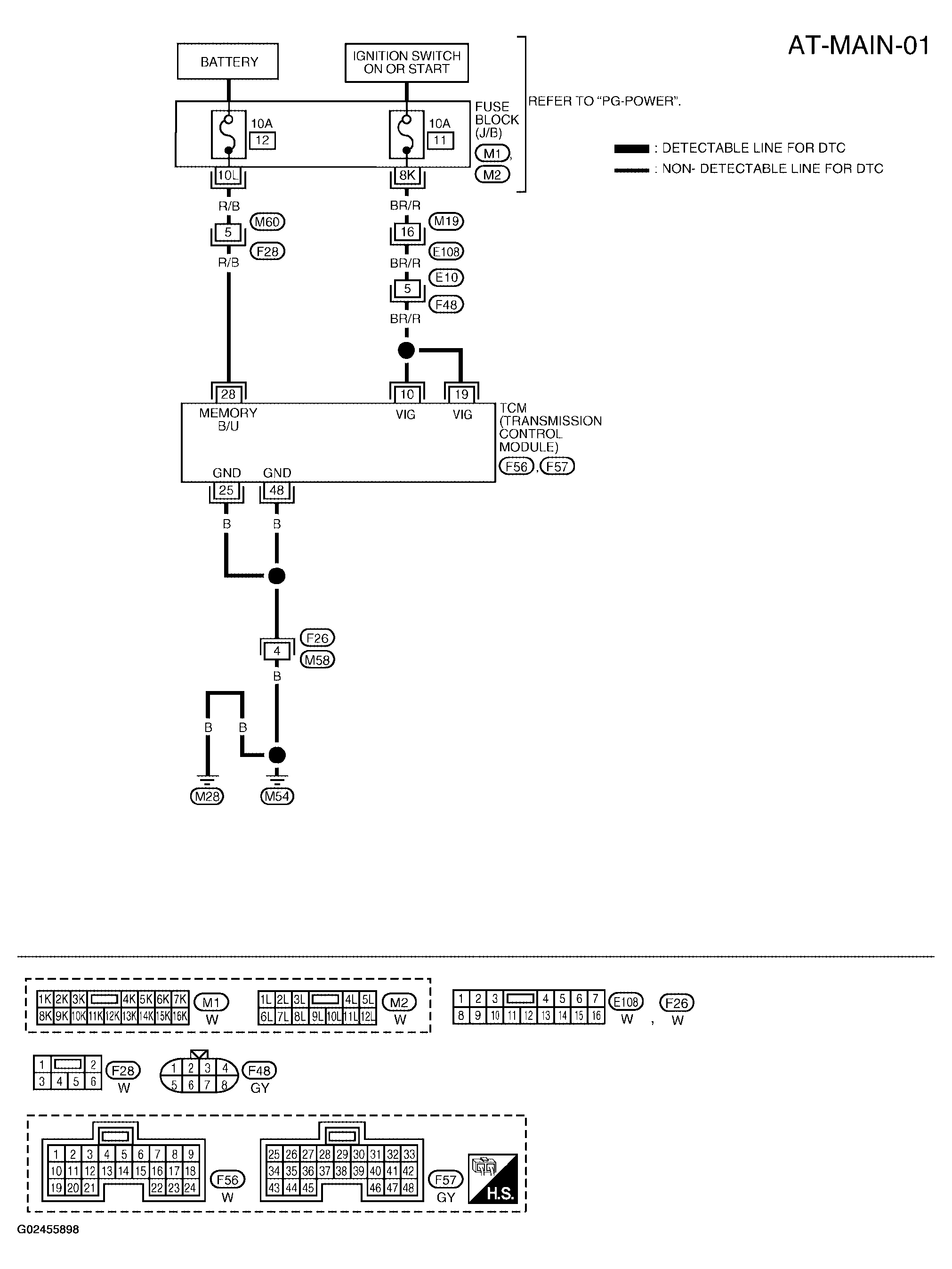

Fig 1: Wiring Diagram - (AT-MAIN-01)
G02455898Courtesy of NISSAN MOTOR CO., U.S.A.

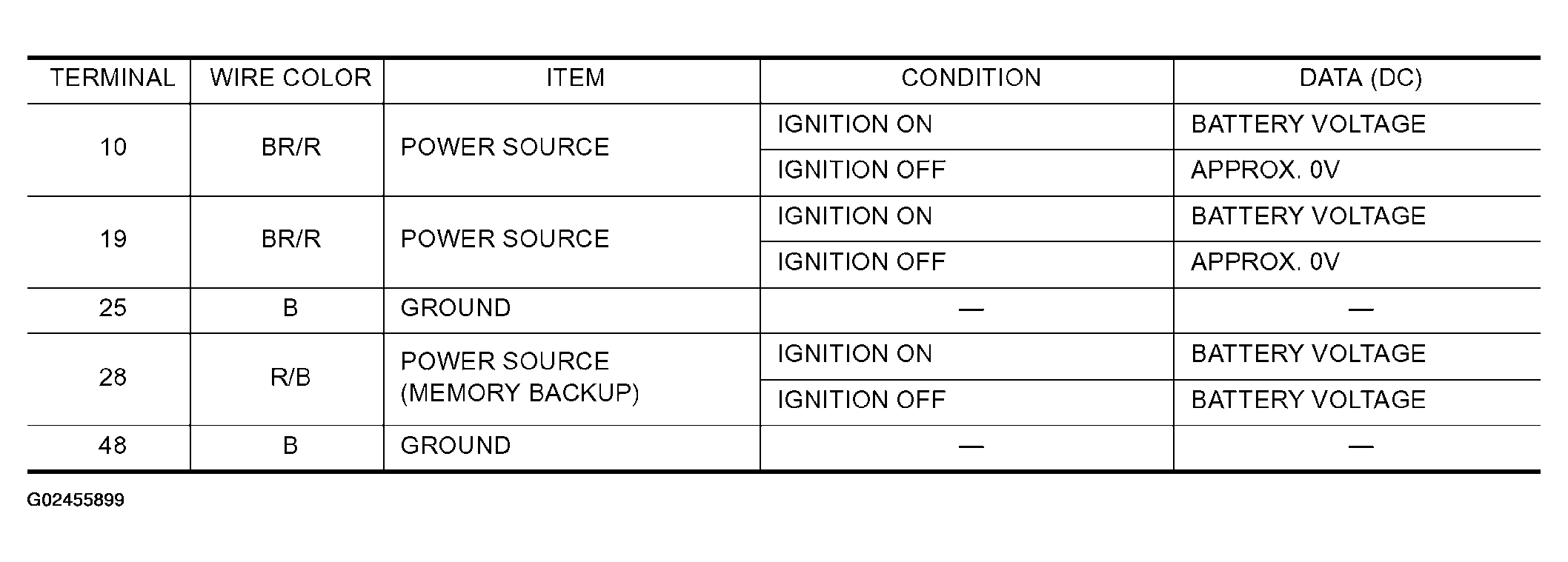

Fig 2: TCM Connector Terminal Voltage Chart
G02455899Courtesy of NISSAN MOTOR CO., U.S.A.
