Judgement Of Self-Diagnosis Code

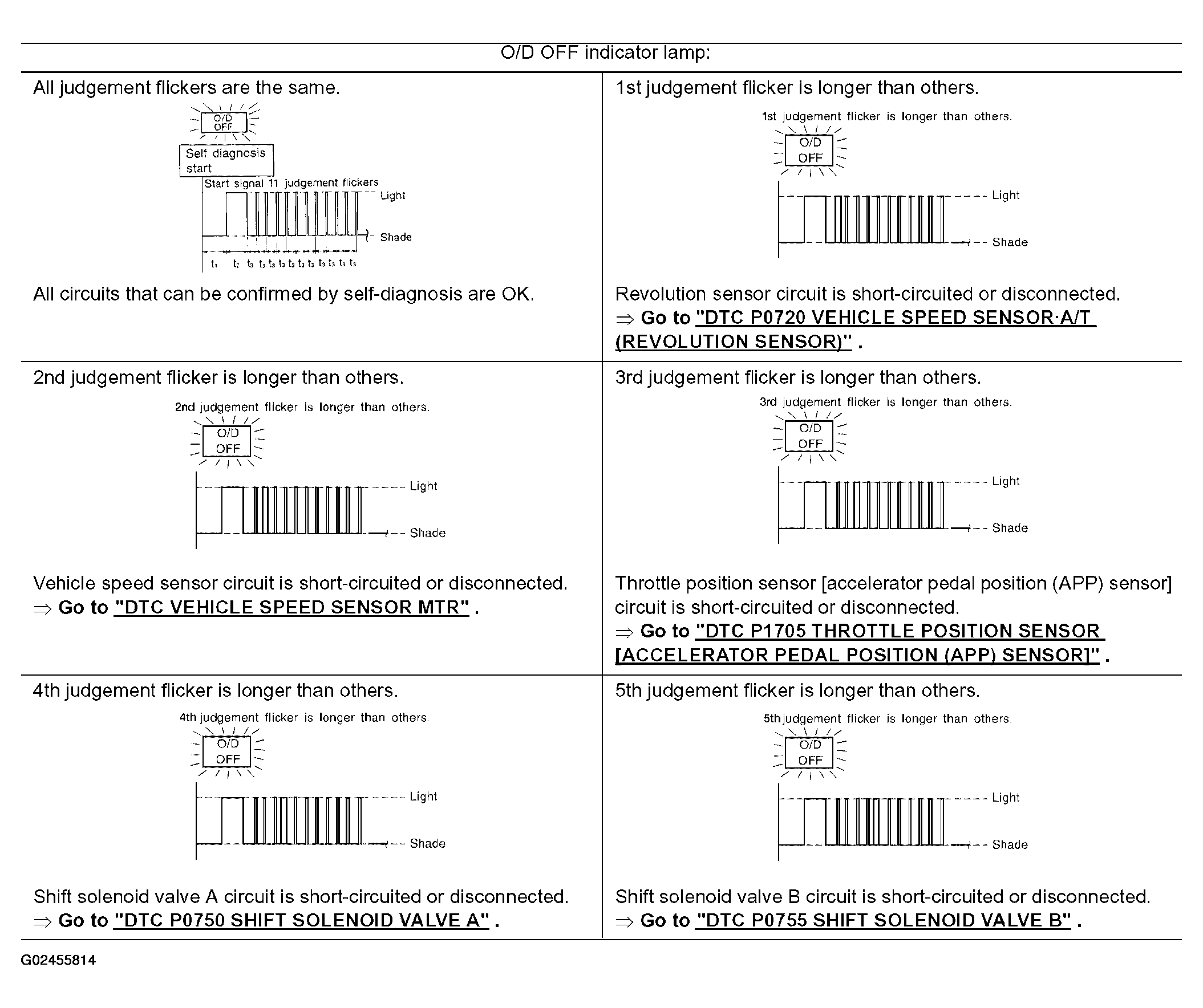

Fig 1: Judgement Of Self-Diagnosis Code Chart (1 Of 2)
G02455814Courtesy of NISSAN MOTOR CO., U.S.A.

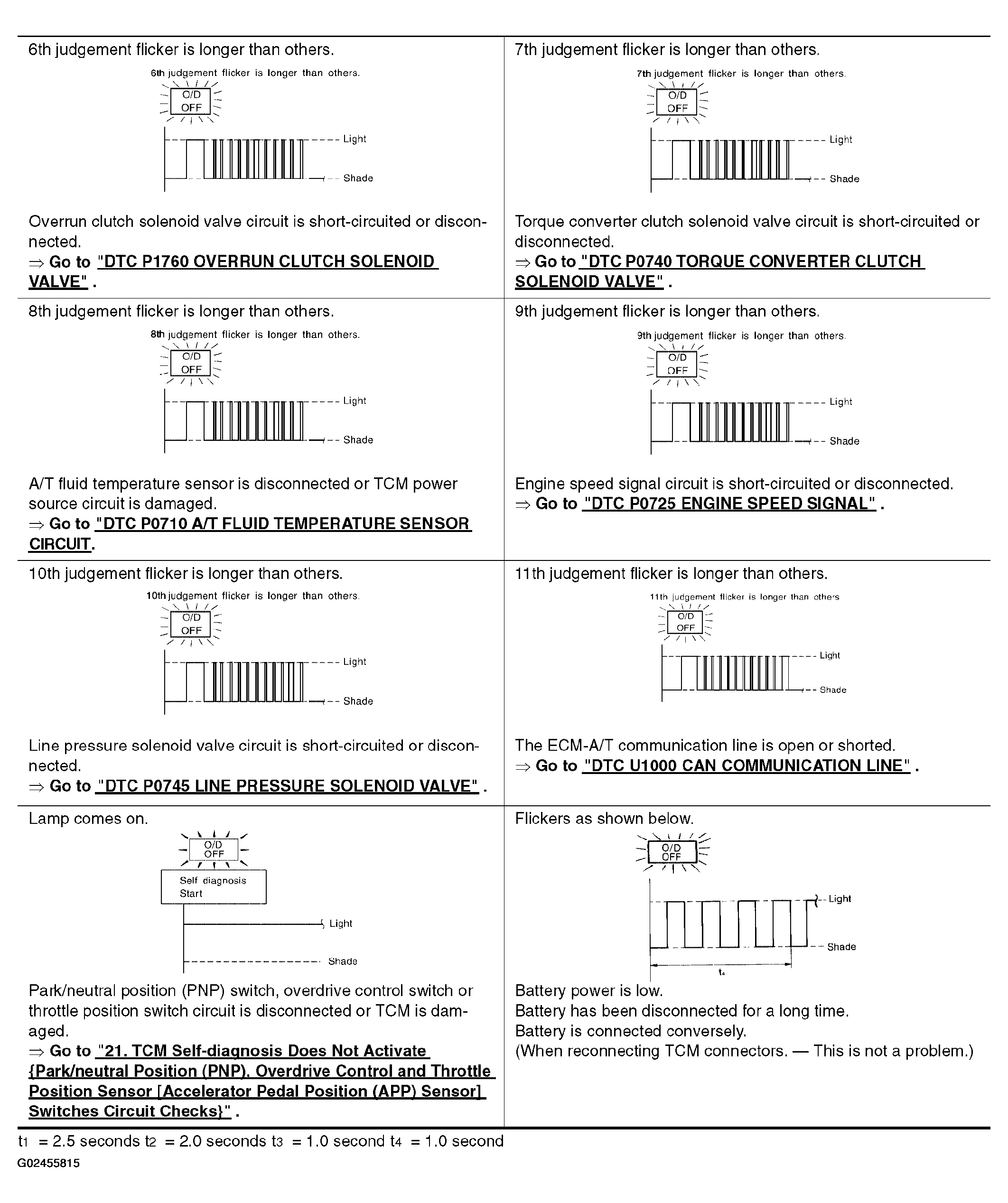

Fig 2: Judgement Of Self-Diagnosis Code Chart (2 Of 2)
G02455815Courtesy of NISSAN MOTOR CO., U.S.A.
