Home >> Nissan-Datsun >> 2005 >> Sentra SE-R >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Manual Air Conditioner >> Compressor >> Removal and Installation

Removal and Installation

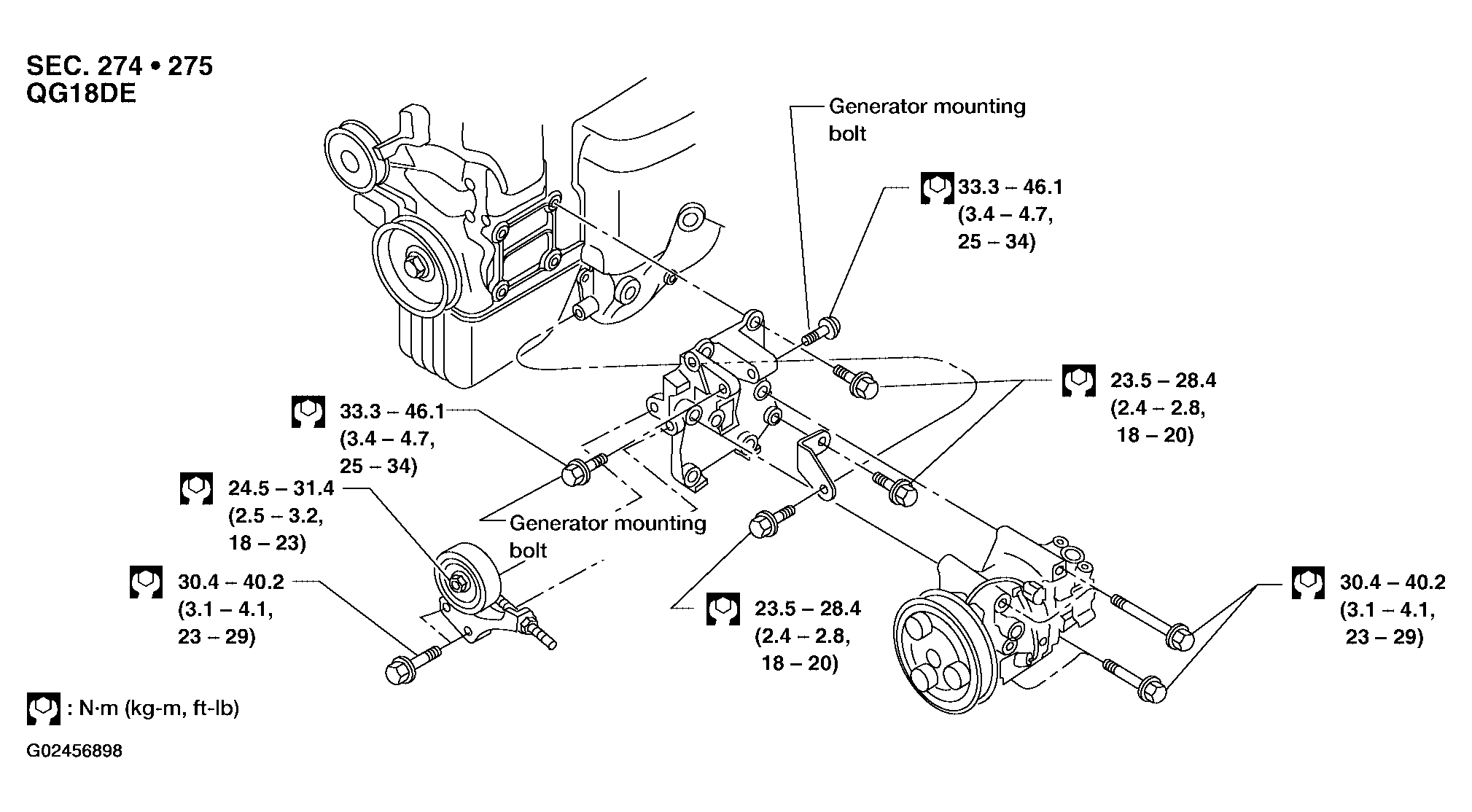

Fig 1: Removing Compressor - QG18DE With Torque Specifications
G02456898Courtesy of NISSAN MOTOR CO., U.S.A.

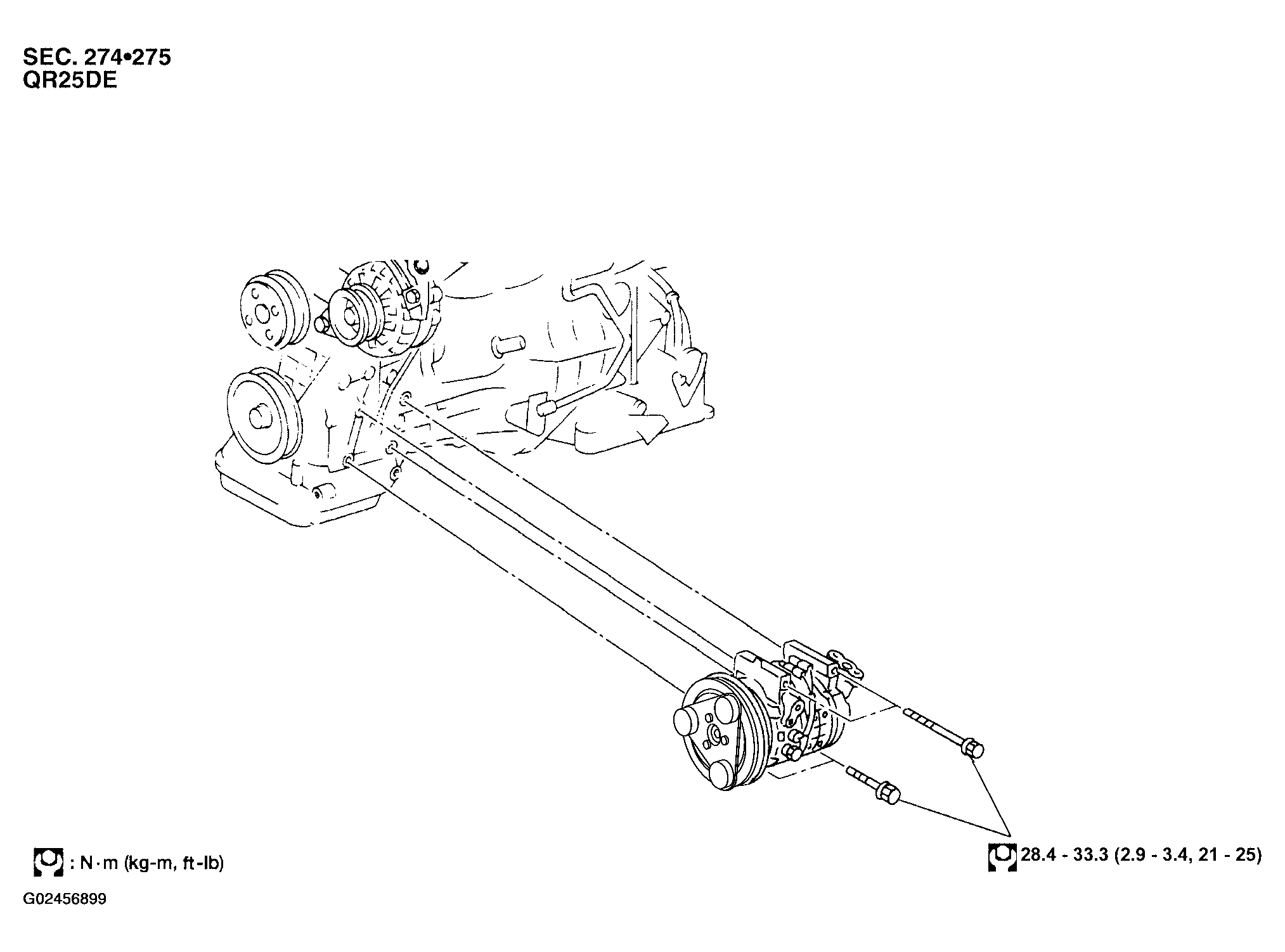

Fig 2: Removing Compressor - QR25DE With Torque Specifications
G02456899Courtesy of NISSAN MOTOR CO., U.S.A.
