Wiring Diagram - AT - MAIN

WARNING: This page is about a different variant/trim than selected.

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

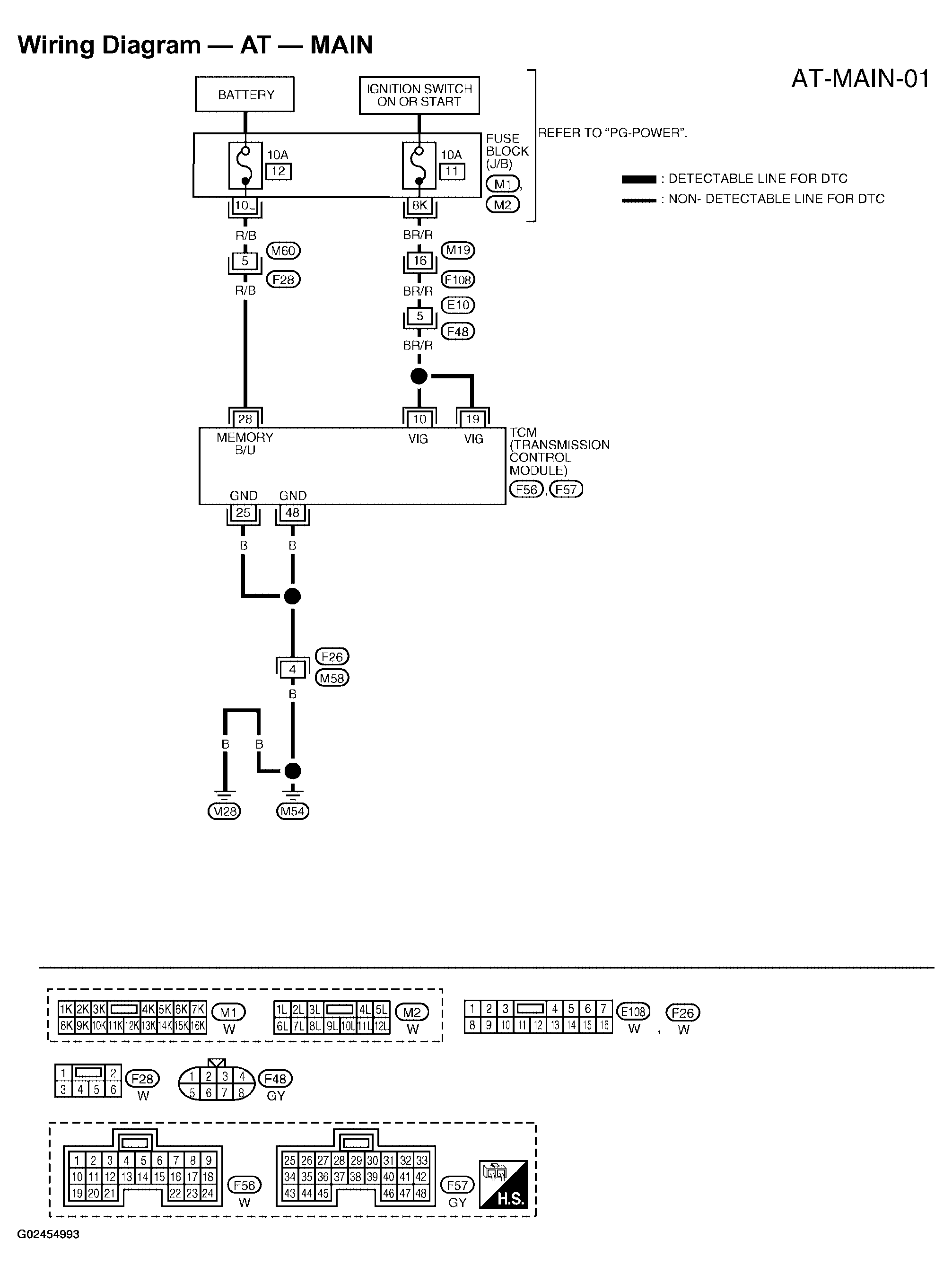

Fig 1: Wiring Diagram - (A/T-MAIN-01)
G02454993Courtesy of NISSAN MOTOR CO., U.S.A.

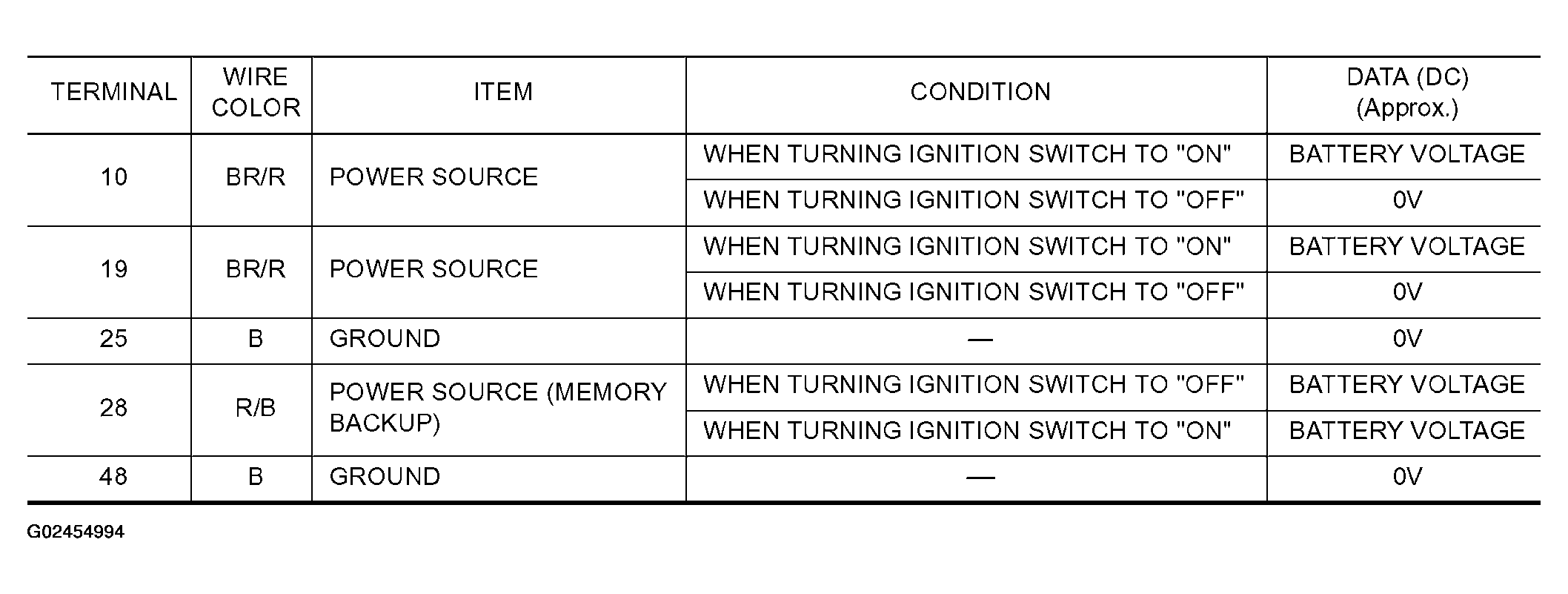

Fig 2: Terminals & Reference Value Chart
G02454994Courtesy of NISSAN MOTOR CO., U.S.A.
