Engine Mechanical (Qr25DE)
>>
Service Data And Specifications (SDS)
>>
Standard and Limit
>>
Valve
>>
Available Valve Lifter
Available Valve Lifter

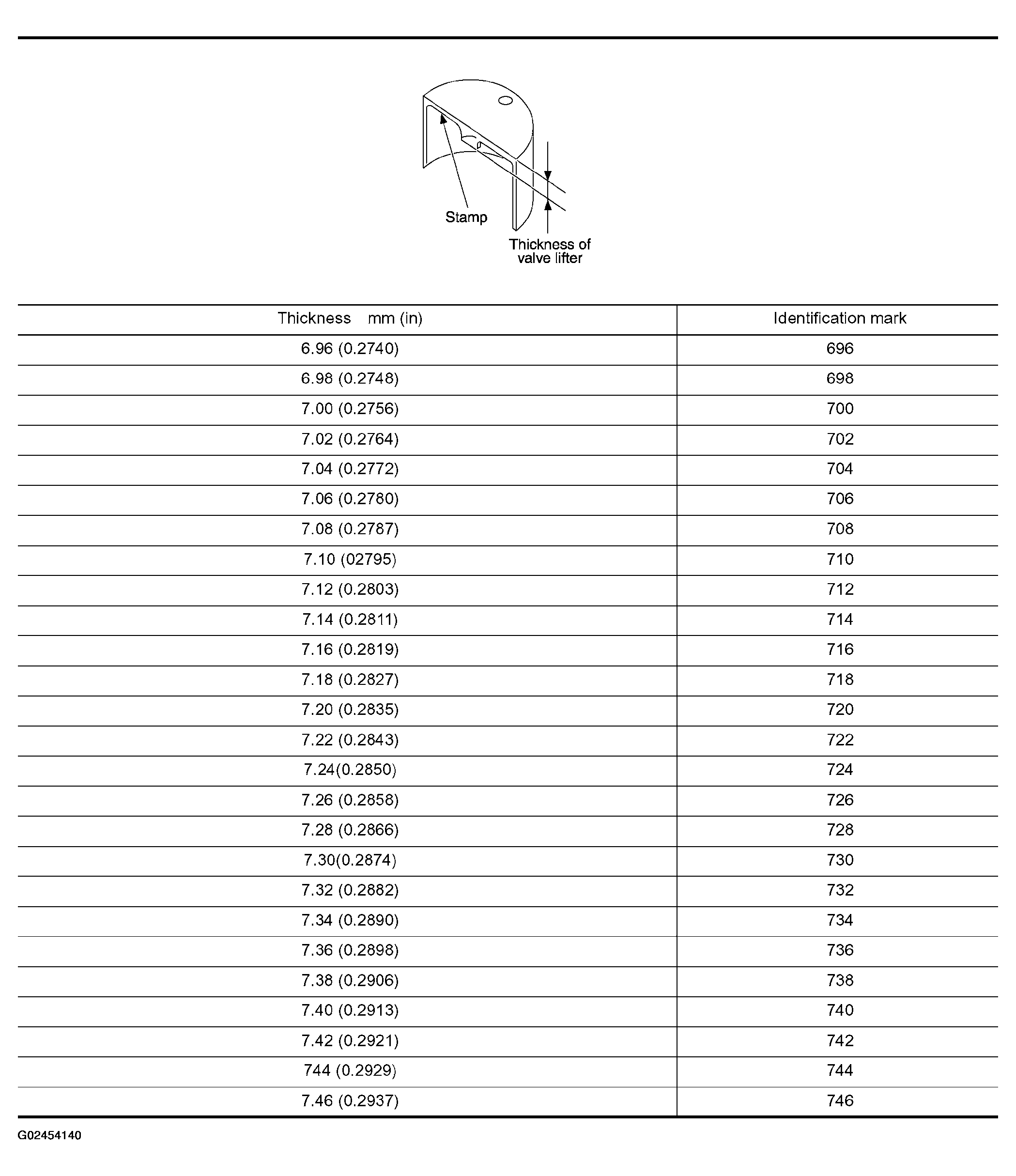

Fig 1: Available Valve Lifter Standard & Limit Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
