Removal and Installation: Installation

Install the valve lifter.
- Install them in the same position from which they were removed.
Install the camshafts.
- The distinction between the intake and exhaust camshafts is in a difference of shapes of the back end:
  Intake: Signal plate for the camshaft position sensor (PHASE) Exhaust: Cone end shape

  Fig 1: Identifying Intake & Exhaust Camshafts
  Courtesy of NISSAN MOTOR CO., U.S.A.

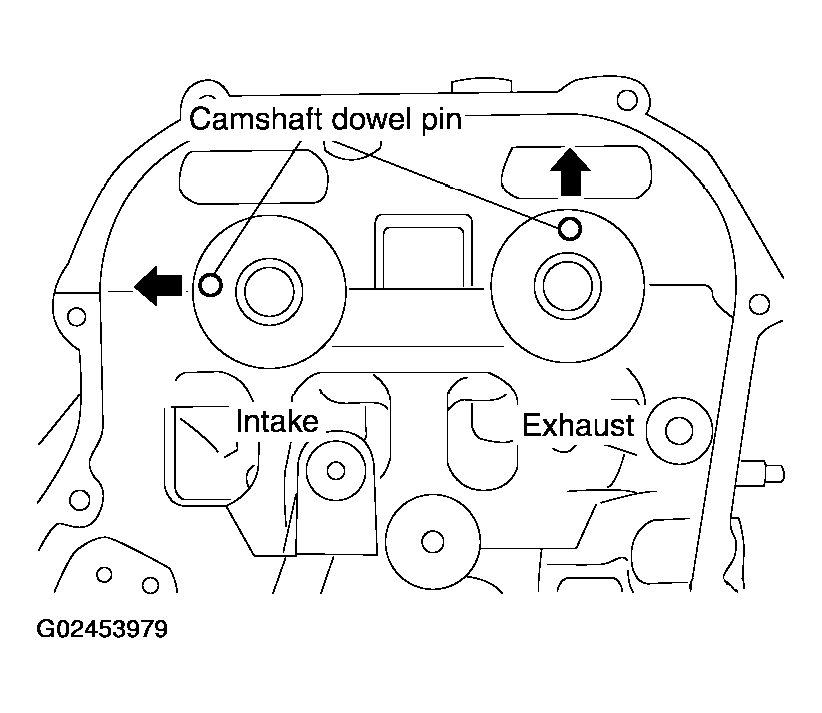

- Install camshafts so that the dowel pins on the front side are positioned as shown.
Fig 2: Identifying Camshaft Dowel Pins
Courtesy of NISSAN MOTOR CO., U.S.A.
Install camshaft brackets.
- Install by referring to identification mark on upper surface mark.
- Install so that identification mark can be correctly read when viewed from the exhaust side.
- Install No. 1 camshaft bracket as follows.
  - Apply sealant to No.1 camshaft bracket as shown.
  Fig 3: Identifying Camshaft Brackets Identification Mark
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Use Genuine Silicone RTV Sealant, or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
  CAUTION:
  - After installation, be sure to wipe off any excessive sealant leaking from part "A" (both on right and left sides).
  Fig 4: Identifying Sealant Dimensions
  Courtesy of NISSAN MOTOR CO., U.S.A.

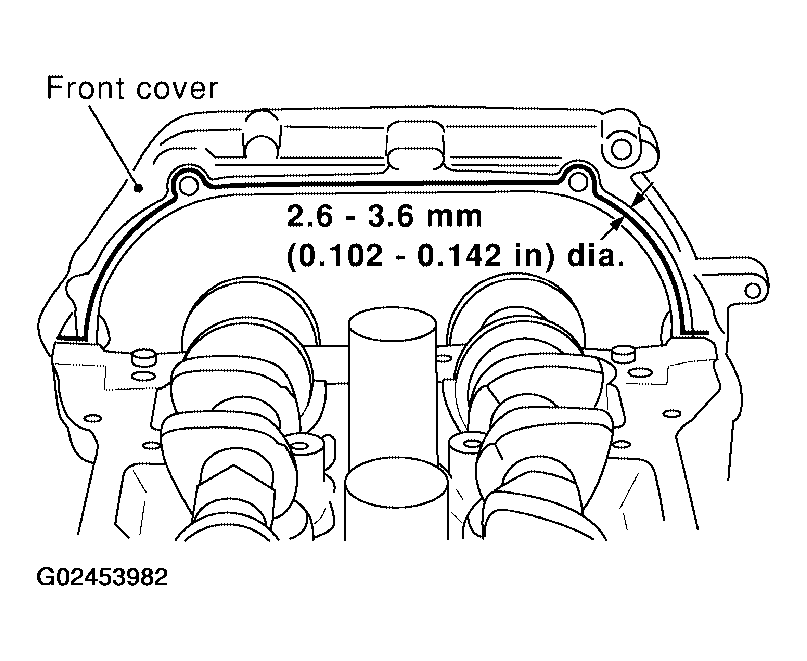

- Apply sealant to camshaft bracket contact surface on the front cover backside.
- Apply sealant to the outside of bolt hole on front cover.

  Fig 5: Applying Sealant To Camshaft Bracket Contact Surface On Front Cover Backside
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Position the No.1 camshaft bracket near the mounting position, and install it without disturbing the sealant applied to the surfaces.
Fig 6: Positioning No. 1 Camshaft Bracket Near Mounting Position
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten camshaft bracket bolts in four steps in the order shown.
1. Step 1 (bolts 9 - 11): 2.0 N.m (0.2 kg-m, 17 in-lb)
2. Step 2 (bolts 1 - 8): 2.0 N.m (0.2 kg-m, 17 in-lb)
3. Step 3 (bolts 1 - 11): 5.9 N.m (0.6 kg-m, 52 in-lb)
4. Step 4 (bolts 1 - 11): 9.0 - 11.8 N.m (0.92 - 1.2 kg-m, 80 - 104 in-lb)
CAUTION: After tightening camshaft bracket bolts, be sure to wipe off excessive sealant from the parts listed below.
- Mating surface of rocker cover.
- Mating surface of front cover, when installed without the front cover.
Fig 7: Identifying Tightening Sequence Of Camshaft Bracket Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

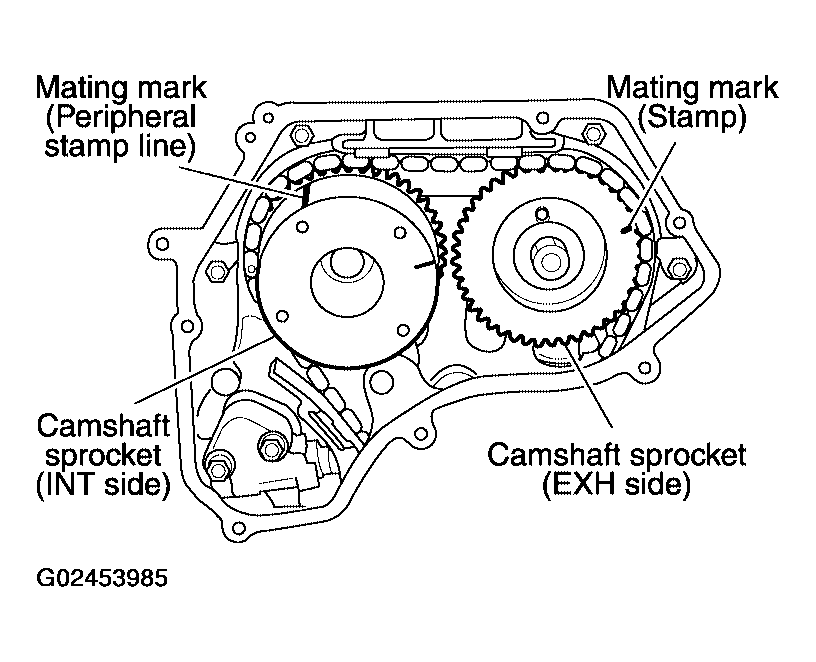

Install camshaft sprockets.
- Install them by lining up the mating marks on each camshaft sprocket with the ones painted on the timing chain during removal.
- Before installation of chain tensioner, it is possible to re-match the marks on timing chain with the ones on each sprocket.
CAUTION:
- Aligned mating marks could slip. Therefore, after matching them, hold the timing chain in place by hand.
- Before and after installing chain tensioner, check again to make sure that mating marks have not slipped.
Fig 8: Identifying Mating Marks On Camshaft Sprockets
Courtesy of NISSAN MOTOR CO., U.S.A.
Install chain tensioner.
CAUTION: After installation, pull the stopper pin off completely, and make sure that the tensioner is fully released.
Install chain guide.
Install IVT control (intake valve timing control) cover as follows:
1. Install IVT control solenoid valve to intake valve timing control cover.
2. Install new O-ring to front cover side.
3. Apply Genuine Silicone RTV Sealant to the positions shown in the figure. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

  Fig 9: Identifying Sealant Application Area
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Install IVT control cover bolts in the order shown.
  1. IVT control cover bolts: 12 - 13 N.m (1.2 - 1.4 kg-m, 9 - 10 ft-lb)
Check and adjust valve clearances. Refer to VALVE CLEARANCE .
Installation of the remaining components is in reverse order of removal.

Fig 10: Identifying IVT Control Cover Bolts (With Tightening Sequence)
Courtesy of NISSAN MOTOR CO., U.S.A.
