Removal and Installation of Valve Oil Seal: Installation

  1. Apply new engine oil to new valve oil seal joint surface and seal lip.
  2. Press in valve oil seal to the position shown using Tool.
  3. Installation of the remaining components is in reverse order of removal.

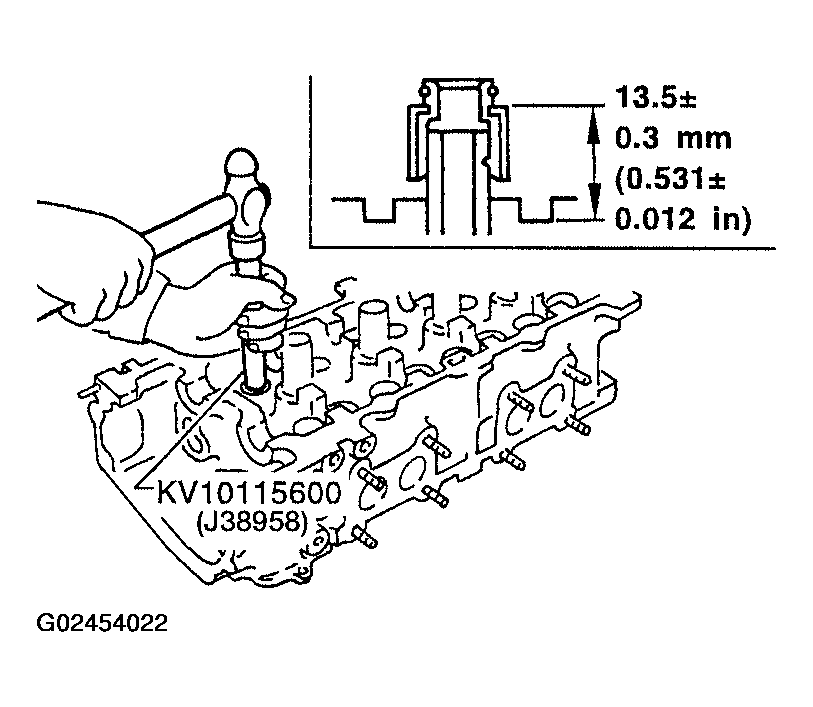

    Fig 1: Installing Valve Oil Seal
    G02454022Courtesy of NISSAN MOTOR CO., U.S.A.
