Removal and Installation of Rear Oil Seal: Installation

Apply new engine oil to new oil seal and install it using a suitable tool.
- Install new oil seal in the direction shown.
Fig 1: Identifying Installing Direction Of Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Install rear oil seal using a suitable drift.
CAUTION:
- Do not touch grease applied onto oil seal lip.
- Be careful not to damage crankshaft and/or cylinder block.
- Press fit oil seal straight to avoid causing burrs or tilting.

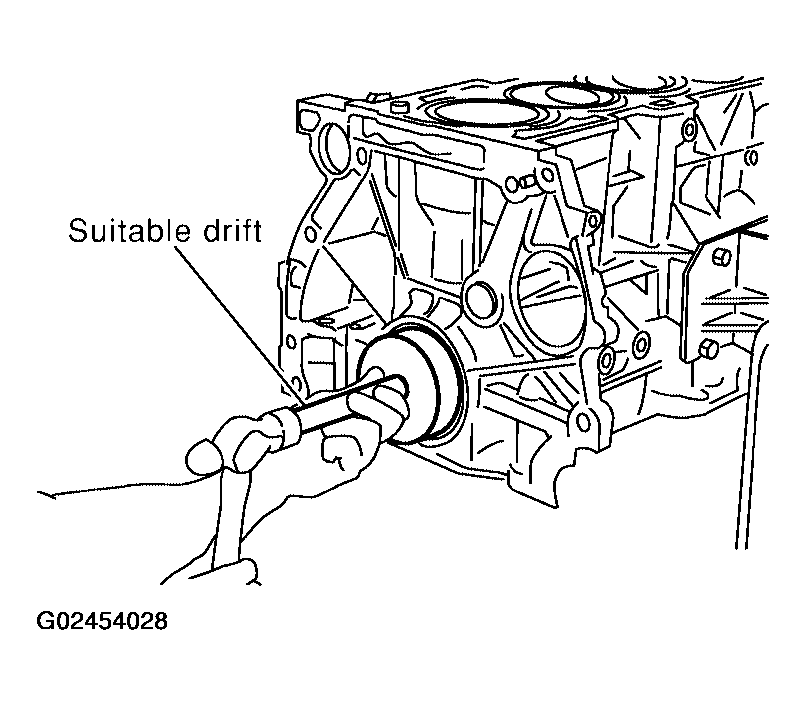

Fig 2: Installing Rear Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Measuring Distance Between Cylinder Block Rear End Face & Rear Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Install flywheel (M/T Models), or drive plate (A/T Models).
- Install drive plate, reinforcement plate and pilot converter as shown in figure.
- Using a drift with 33 mm (1.30 in) diameter, push pilot converter into the end of the crankshaft.
Installation of the remaining components is in reverse order of removal.

Fig 4: Identifying Flywheel Installation Process
Courtesy of NISSAN MOTOR CO., U.S.A.
