Valve Lifter Hole Diameter

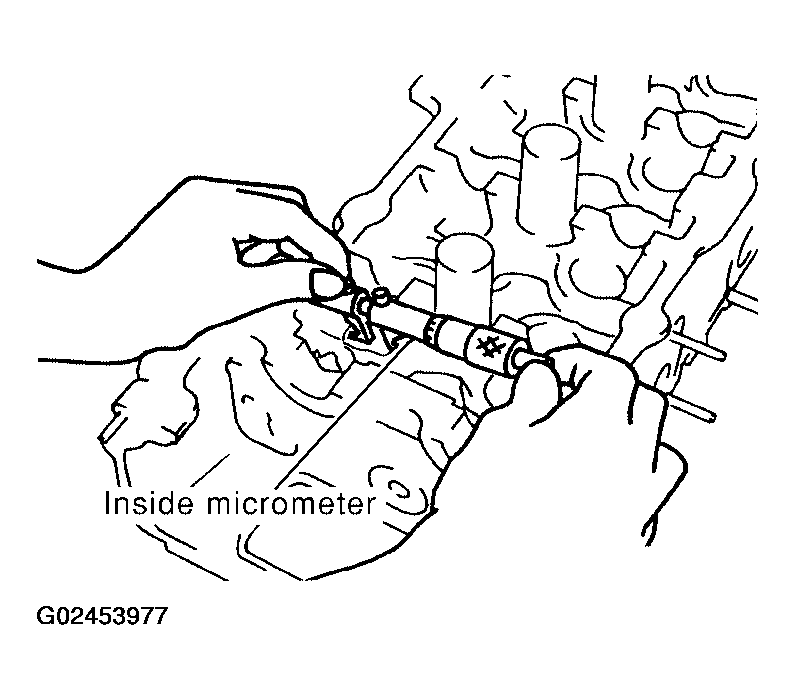

- Using inside micrometer, measure valve lifter guide bore diameter of cylinder head.
- Standard: 34.000 - 34.021 mm (1.3386 - 1.3394 in)
- If out of the specified range, replace the cylinder head assembly.
Courtesy of NISSAN MOTOR CO., U.S.A.
