Front Door Harness
>>
LH Side
LH Side

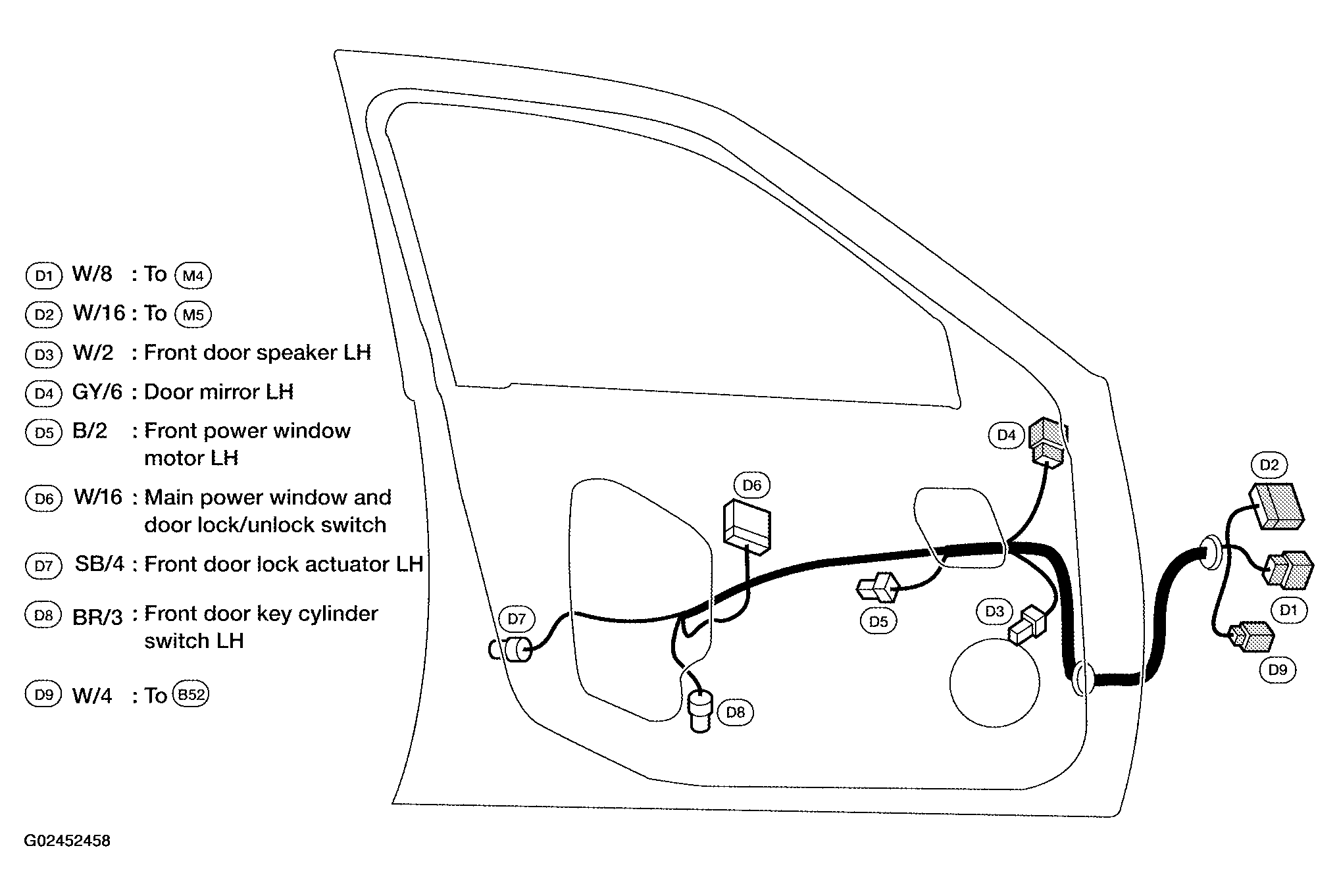

Fig 1: Identifying Front Door Harness With Connector (LH Side)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
