QG18DE (ULEV)

NOTE: For references to EC, refer to ENGINE CONTROL SYSTEM .

For references to AT, refer to AUTOMATIC TRANSMISSION .

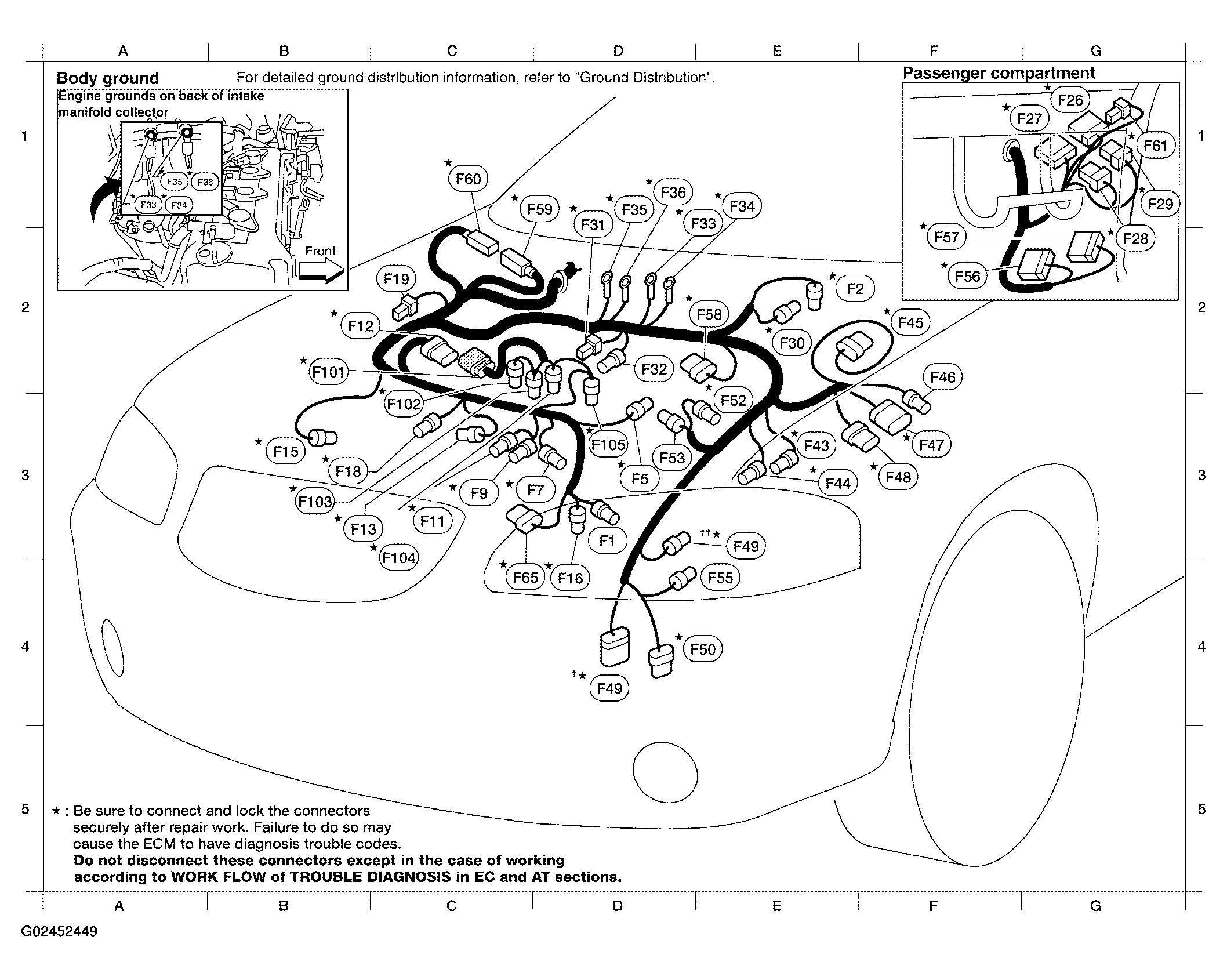

Fig 1: Identifying Engine Control Harness With Connector QG18DE (ULEV) (1 Of 2)
G02452449Courtesy of NISSAN MOTOR CO., U.S.A.

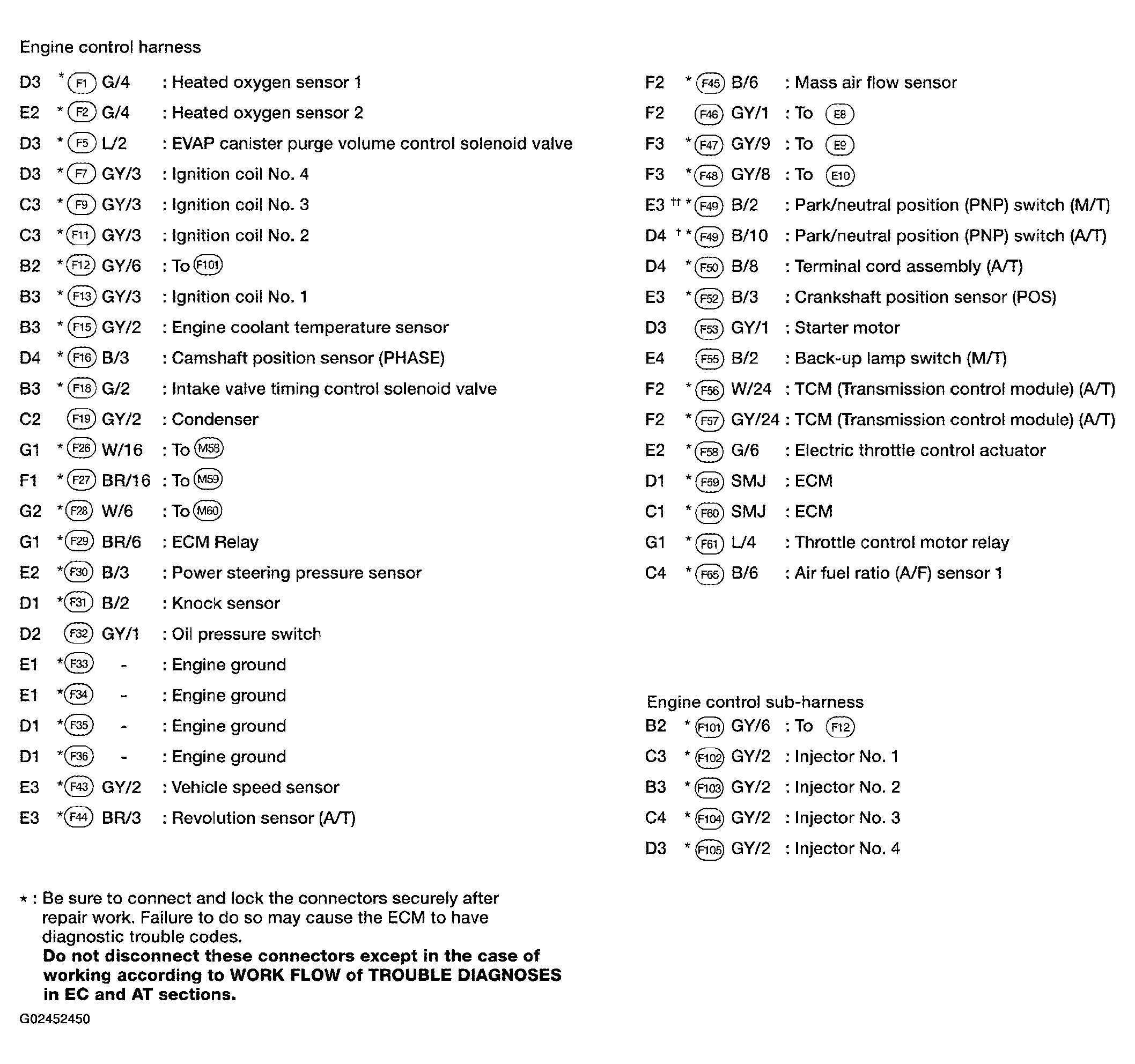

Fig 2: Identifying Engine Control Harness With Connector QG18DE (ULEV) (2 Of 2)
G02452450Courtesy of NISSAN MOTOR CO., U.S.A.
