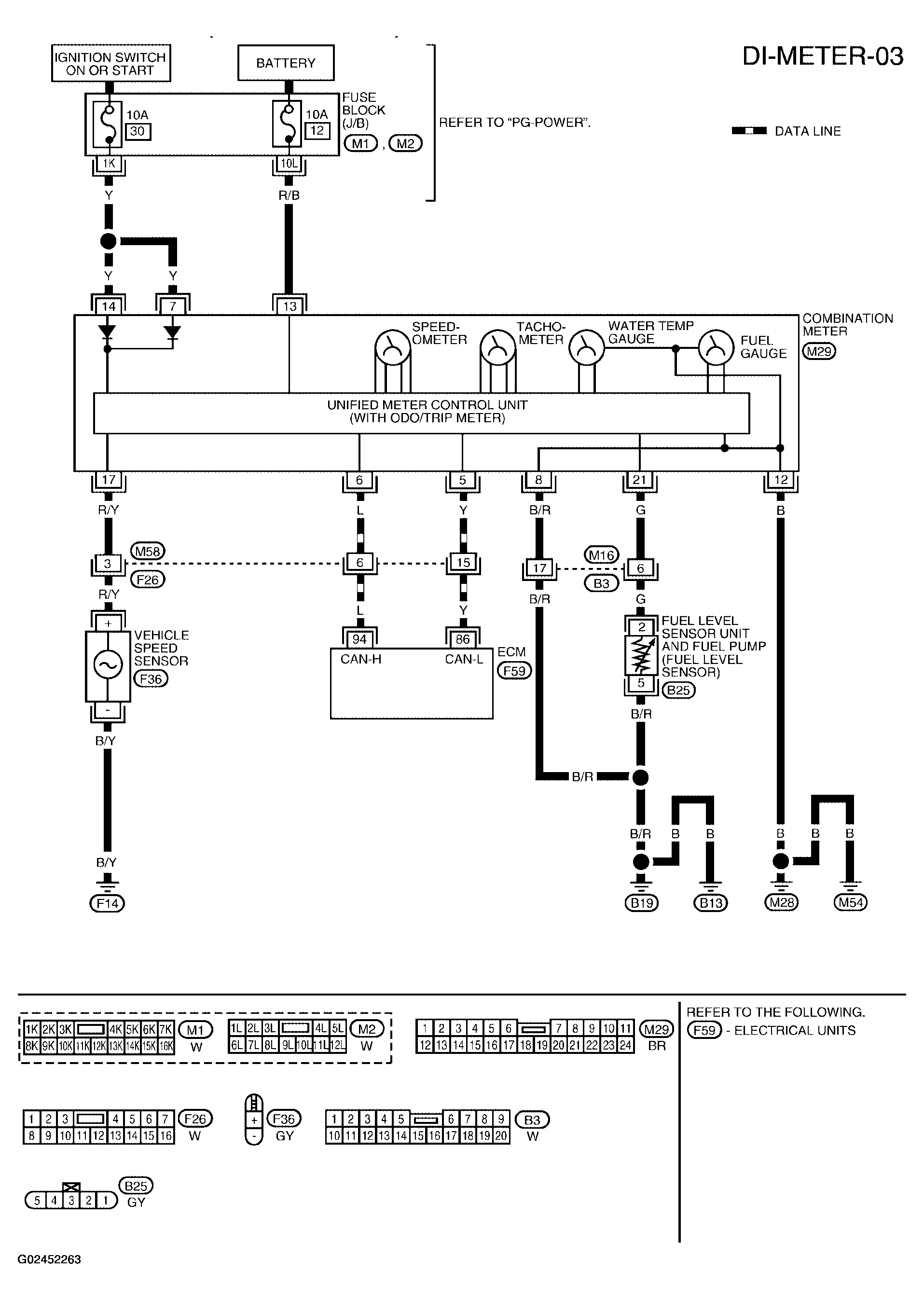

Home >> Nissan-Datsun >> 2005 >> Sentra SE-R >> Repair and Diagnosis (Single Page) >> Electrical >> Gauges >> Driver Information System >> Meters And Gauges >> Wiring Diagram - METER - >> With Tachometer (Qr25DE Models)
