Ignition Power Supply - Ignition SW. In "On"

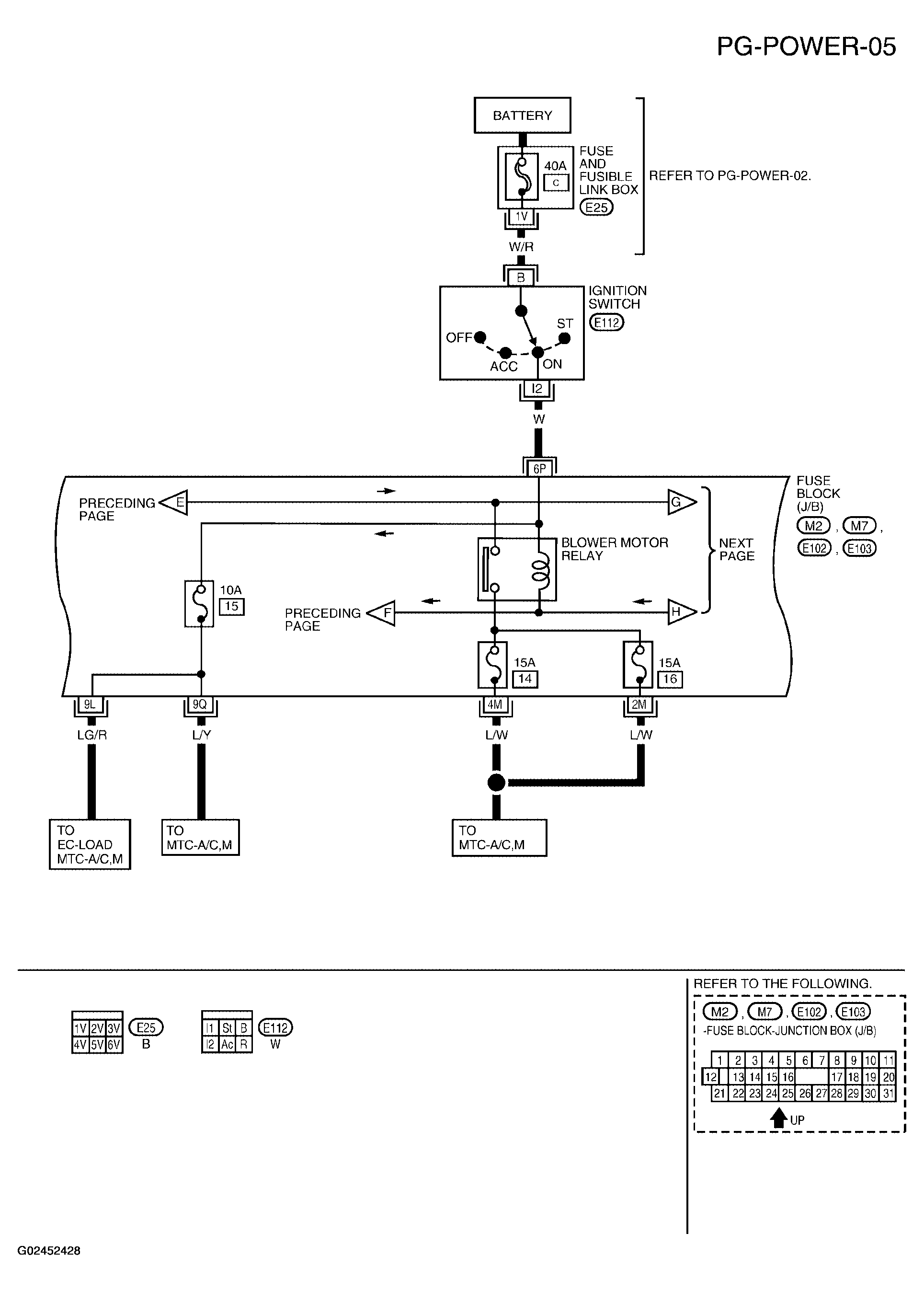

Fig 1: Wiring Diagram - (PG-POWER-05)

G02452428

Courtesy of NISSAN MOTOR CO., U.S.A.
