Wiring Diagram - NATS -

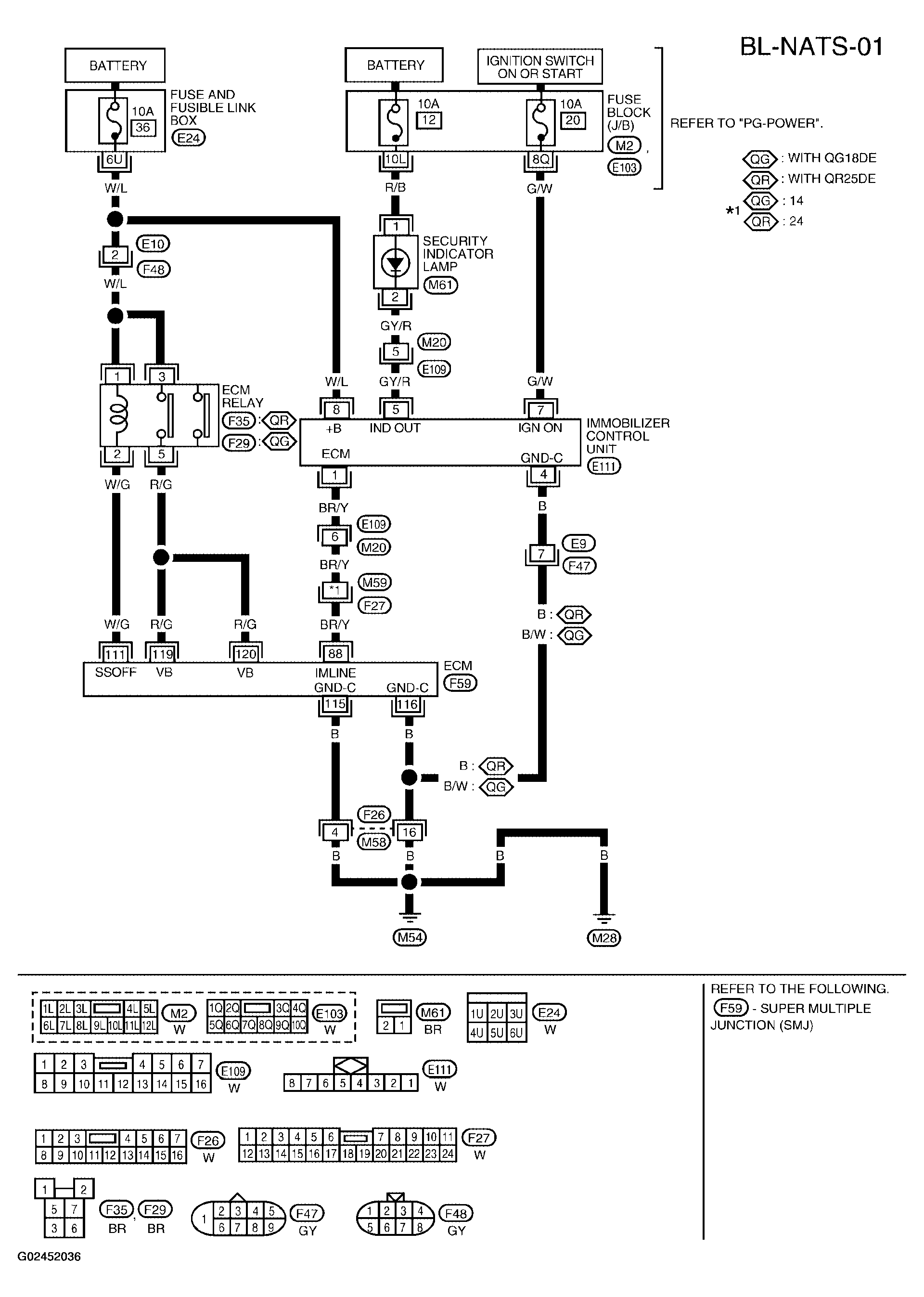

Fig 1: Wiring Diagram - BL-NATS-01

Courtesy of NISSAN MOTOR CO., U.S.A.

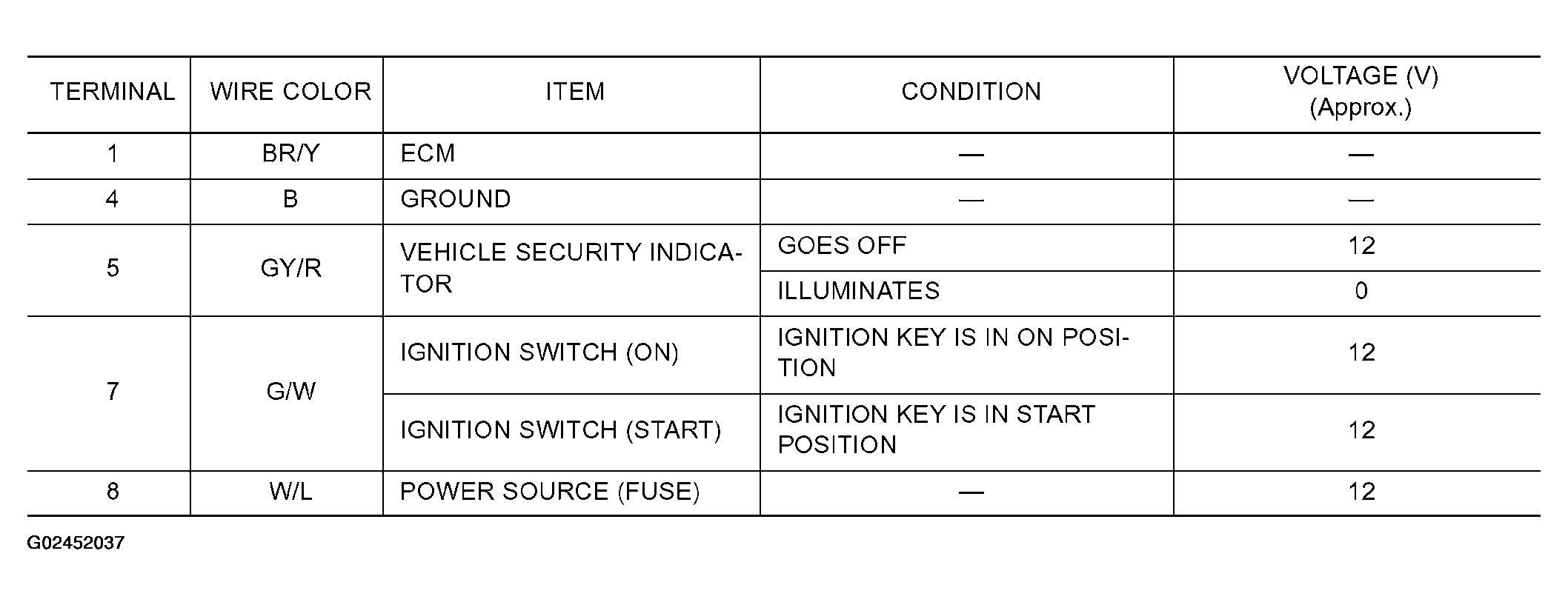

IMMOBILIZER CONTROL UNIT TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND GROUND

Fig 2: Immobilizer Control Unit Terminals And Reference Value Chart
