Accessory Power Supply - Ignition SW. In "Acc" Or "On"

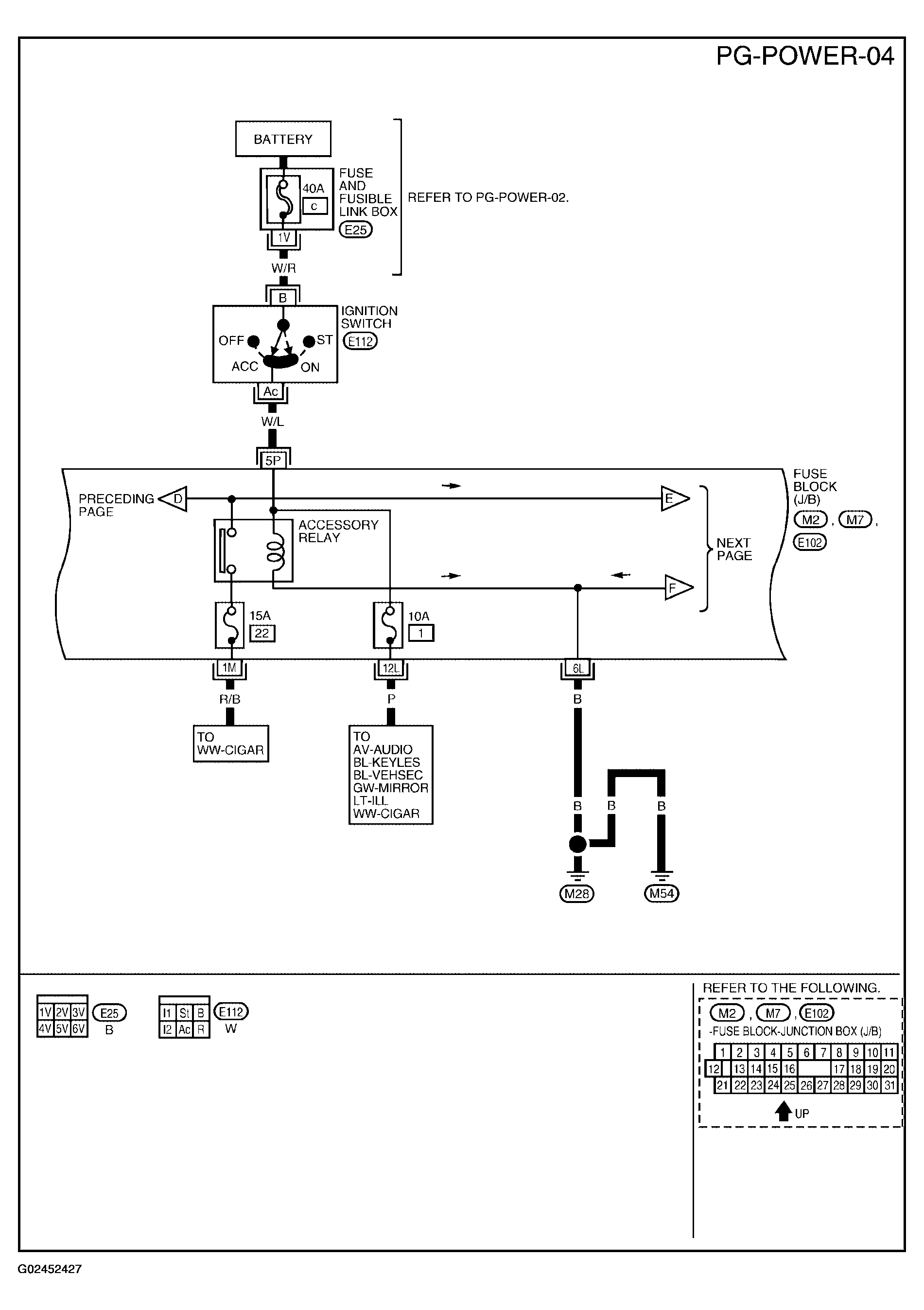

Fig 1: Wiring Diagram - (PG-POWER-04)

G02452427

Courtesy of NISSAN MOTOR CO., U.S.A.
